Unified Simultaneous Unbalanced AC & DC Power Flow

Unified Unbalanced AC & DC Power Flow allows for analysis of unbalanced transmission networks due to large single phase loads on the transmission grid such as railways. The unified AC & DC power flow solution ensures that transmission networks can be solved per phase and include complete simultaneous DC network solution such as solar farms and HV DC transmission networks.

Unified Power Flow Software Key Features

• Solve unbalanced transmission networks including phase and sequence values
• Analyze AC & DC power networks such as large central solar farms and HVDC power transmission systems

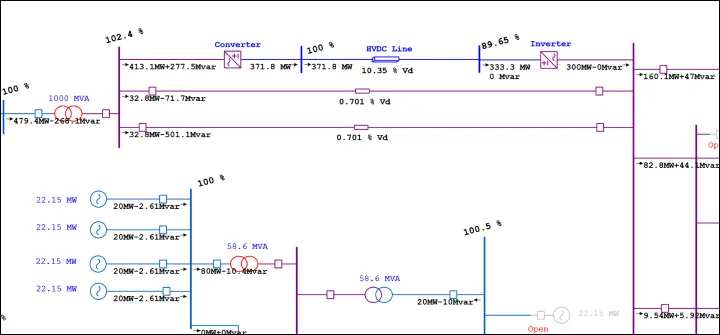

• Report branch flows, losses and voltage drops for both AC & DC systems simultaneously on the single-line diagram and output reports
