Theme, Configuration, Plot, Report & Data Managers

ETAP offers an extensive set of useful and time saving tools for reporting, batch data processing, presentation, presentation theme management, and more.

Theme Manager

• Display color coding based on:
• - Standard
• - Voltage level
• - Area
• - Grounding: Solid, Low-Z, High-Z, Ungrounded
• - Earthing: TT, TN, IT, NEC
• - Grounding by ground switch
• Set different themes for individual one-line diagrams
• Flexible coloring for AC & DC elements, annotations, & composite networks
• Assign visible color codes to alerts, alarms, & warnings
• Easily differentiate between 1-phase, 2-phase, & 3-phase systems
• Modify element, grid, & background colors
• Display faulted buses by symbol or color

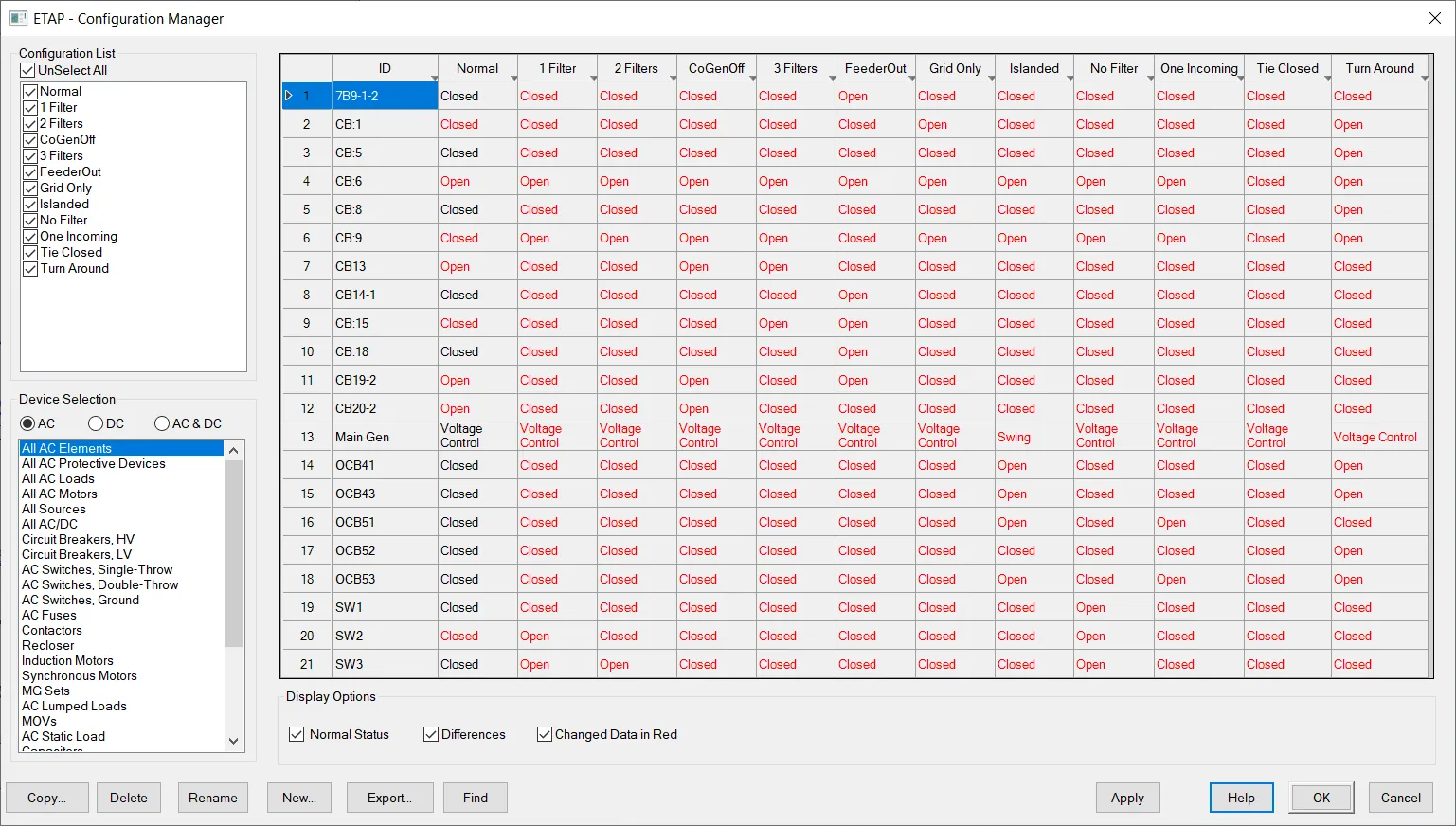

Configuration Manager

• Tabulate & control different status configurations
• Compare source, load, & switching device status
• Flag changed data with checker capability
• Copy, merge, export, import, & print

Report Manager

• Customizable output reports & plots
• Input, results, alerts, & summary reports
• Reports via Crystal Reports® viewer
• PDF, Microsoft Word, Access, & Excel® reports
• Element ID & text search capability
• Multi-Language Report

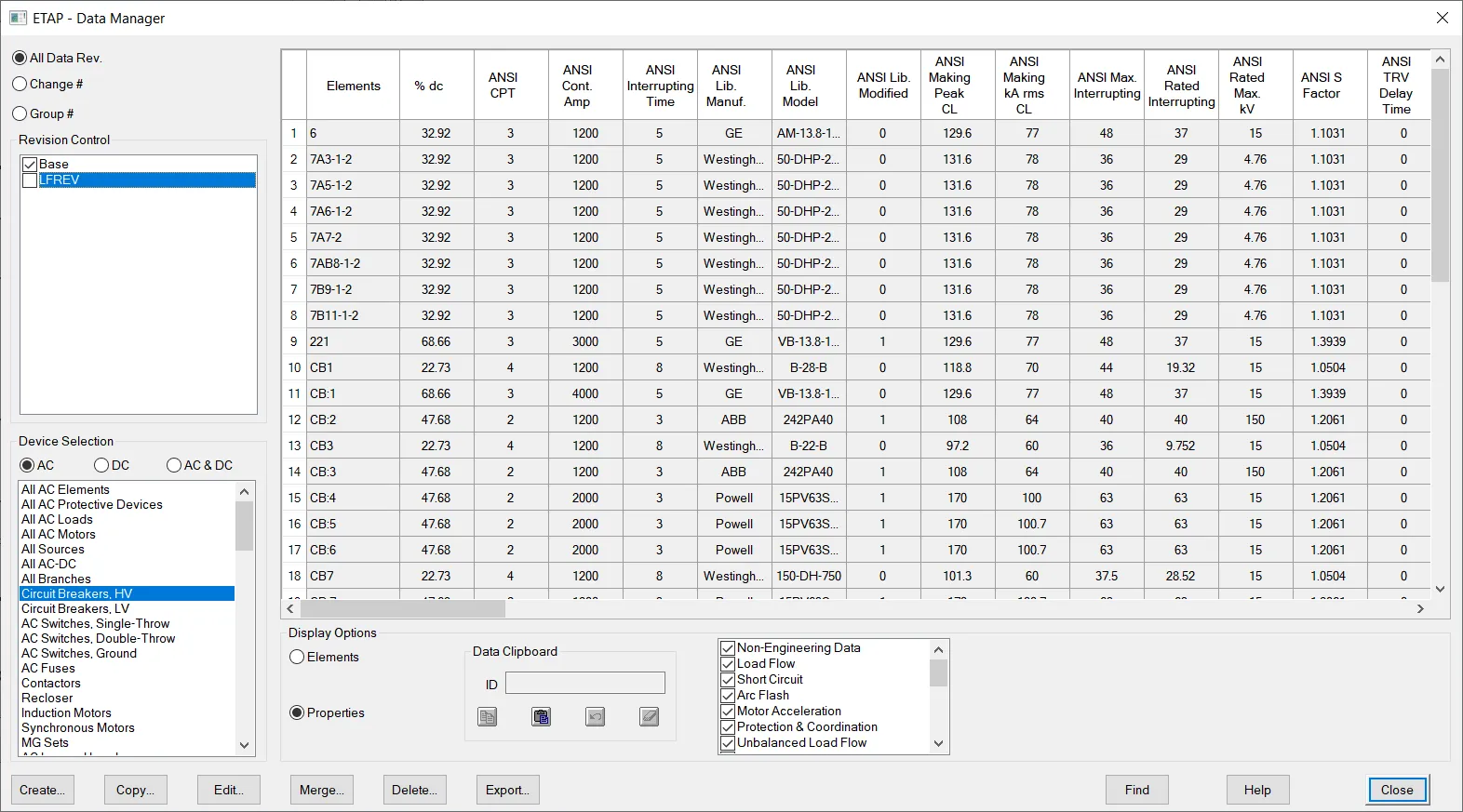

Data Manager

• View / edit Base & Revision Data
• View equipment properties for individual fields
• View State & Service
• View absolute value or differences
• Display & filter study data
• Graphical data management and merge per individual equipment

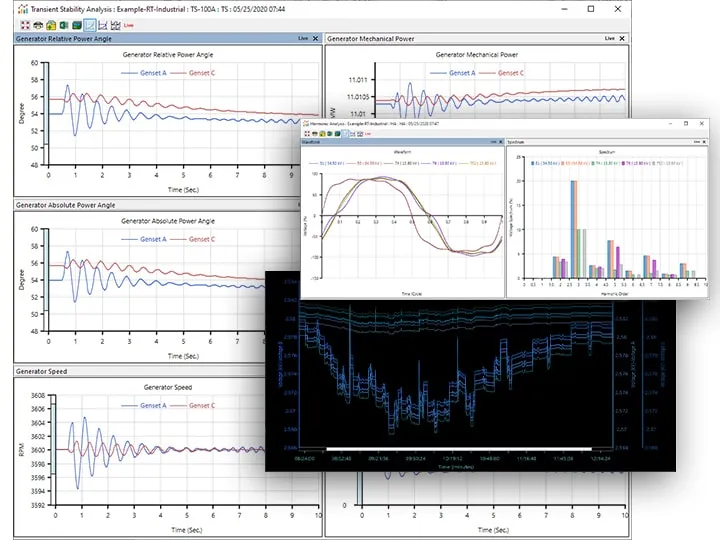

PlotView™

Live Plots & Graphical Result Visualization

• Live Plots overlay with previous study results
• Embedded Live Plots on One-Line Diagram
• Utilize with all major ETAP modules
• Individual or Subplot views
• Export to Excel
• Zoom, Pan, Hairline based value tracking

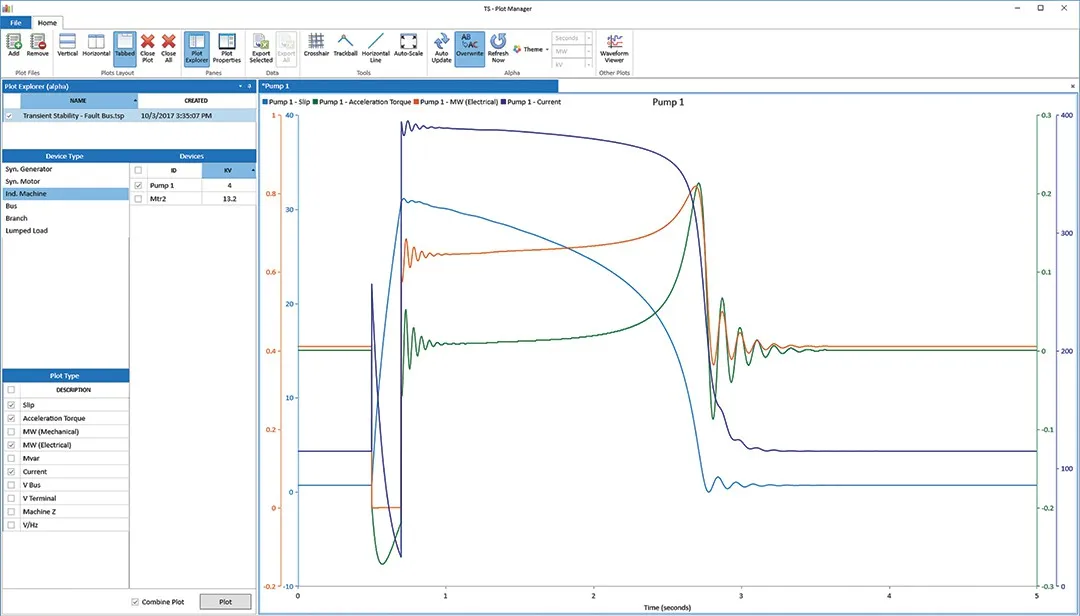

Plot Manager

• Load plots from multiple projects
• Save plot style as templates
• Customize legend, grid lines & plot options
• User-defined application styles
• Automatic best fit, label layout, etc.
• Zoom, pan, tile, & cross-hair

PlotAnalyzer™

Plot Comparison, Multiple report graphics, Python frameworks

• Efficient Power System Analysis by comparing graphical results from multiple studies
• Advanced high-speed Python frameworks
• Available for all modules with plot-based reports
• Automatic sizing and sub-plot arrangements
• Tooltip and cross-hair based value tracking
• Copy to clipboard and export values to Excel
• User configurable plots and settings
• Automatic display of event information
• Automatic display of alert information
• Customize plot using Python
