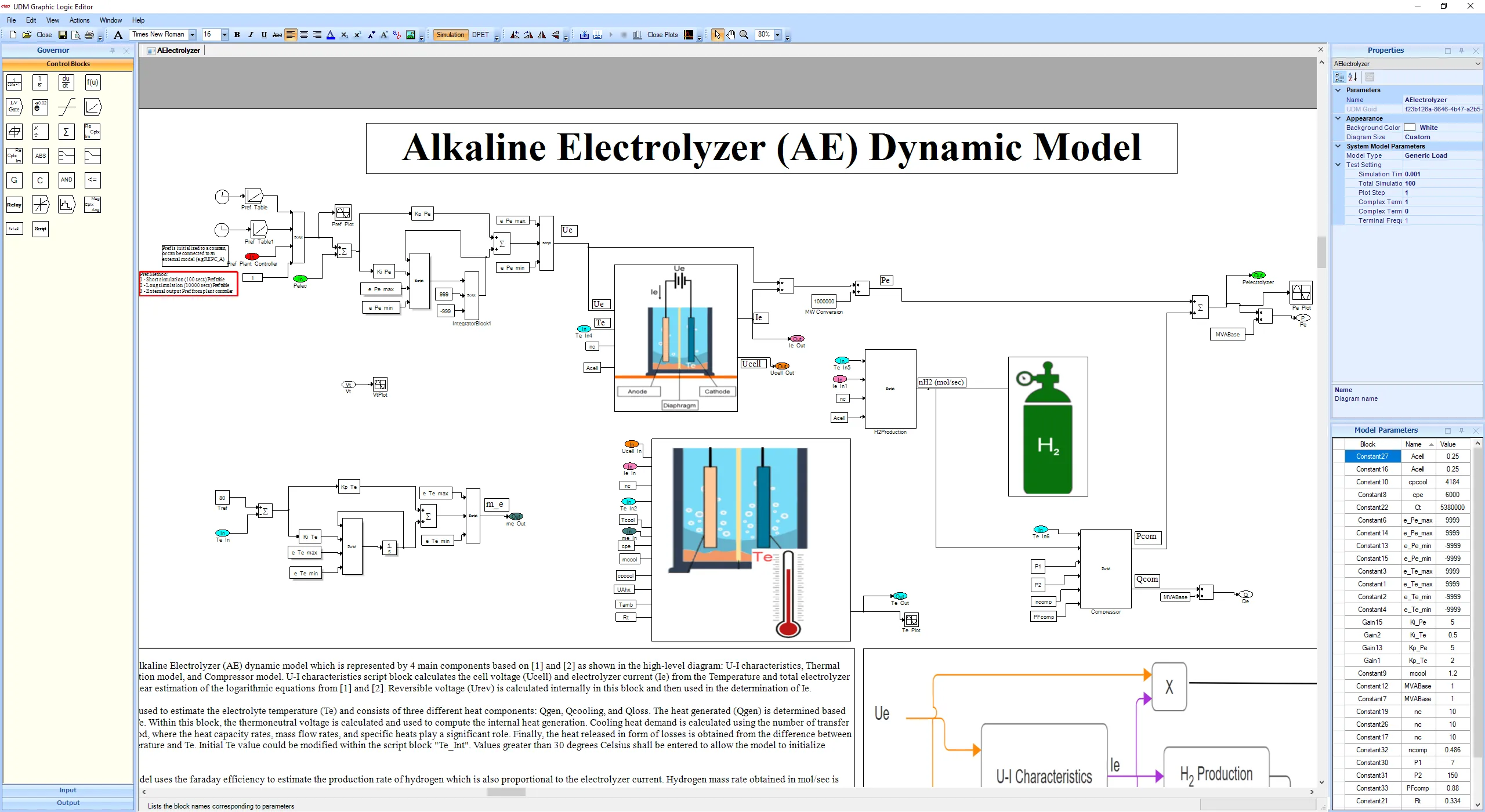

User-Defined Dynamic Model for Alkaline Electrolyzer

Overview

ETAP UDM provides an interactive graphical environment that allows its users to develop, simulate, implement, and test complex dynamic models. Different types of signals can be analyzed during the simulations with UDM: electrical, mechanical, electrochemical, etc. Alkaline Electrolyzer (AE) UDM model can be used with ETAP transient stability to determine the dynamic behavior of an AE in a green hydrogen production facility.

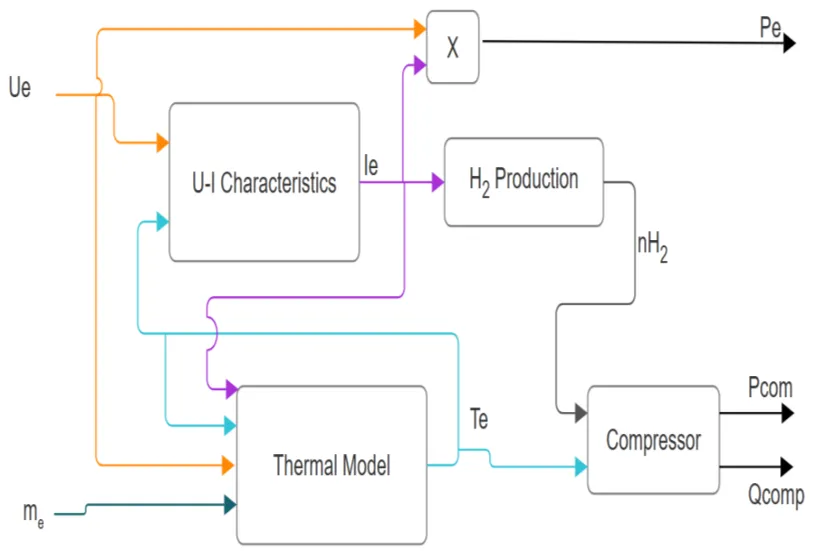

This model includes the following:

• U-I characteristics
• Thermal model
• Hydrogen (H2) production model
• Compressor model
