Audit & Comply

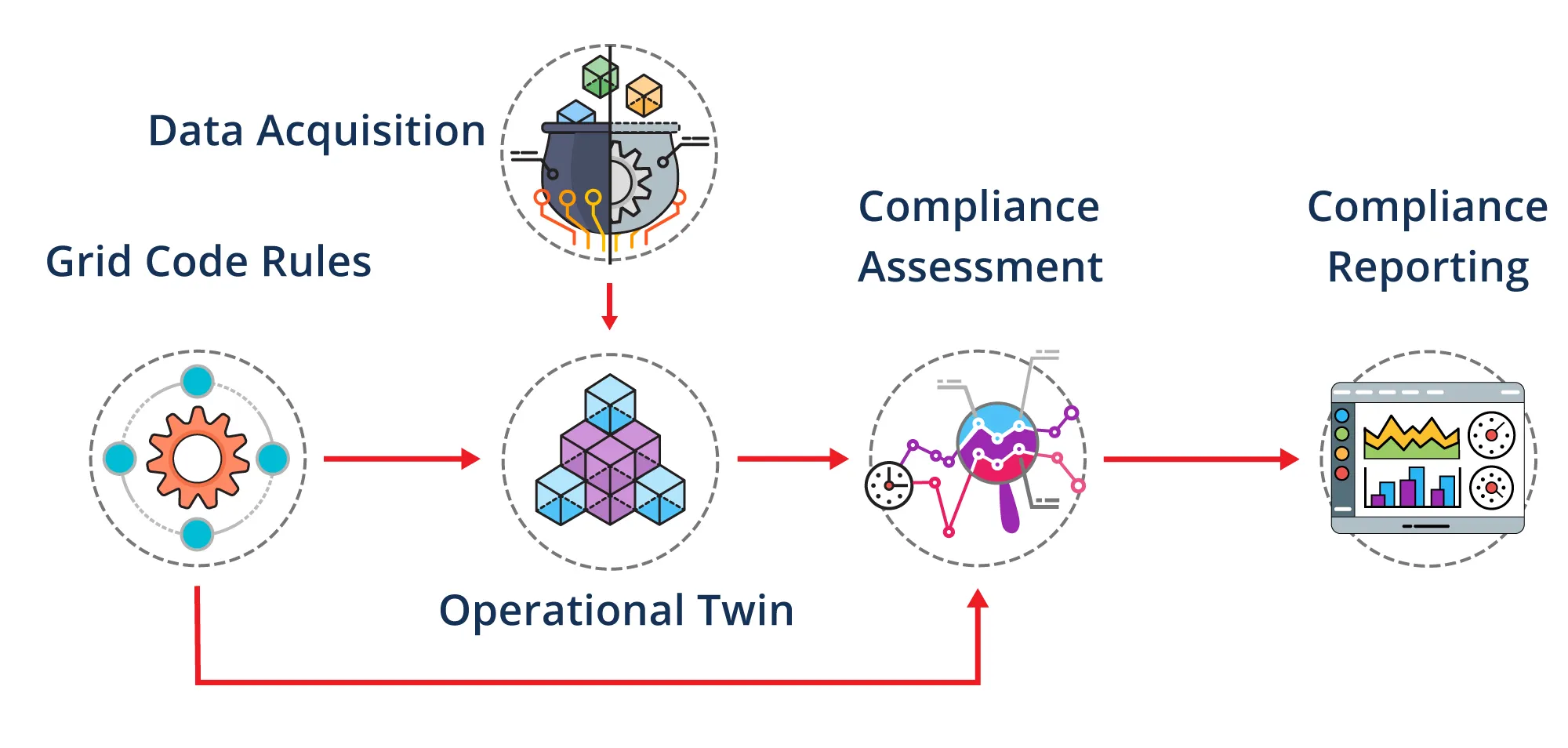

Obligation to comply with grid performance requirements does not end once the PPC has been deployed. Continuous monitoring of steady-state & dynamic plant response is necessary to tune the electrical model, identify generator/AVR/governor and control parameters, and ensure that the PPC response is adequate under real operating conditions. Payment reduction, conflict, or even disconnection are some of the consequences. ETAP Grid Code compliance monitoring performs the online assessment and continuous audit of actual operation vs. expected response. Real-time instantaneous data is applied to the power plant operational digital twin and comparisons are made against previously established grid code rules in order to perform the assessment and produce compliance reports.

Key Features & Capabilities

Grid Code Compliance Assessment

• Verify Quality of Power Supply - Power Quality Monitoring
• Increase Grid Reliability - Phasor Measurement Unit (PMU) for early detection of faults & prevention of power outages
• Power Plant Monitoring - Parameter Identification & Tuning using ETAP DPET
• Dynamic System Monitoring - Voltage Stability Monitoring & Steady-State Instability Evaluation
• Multi-Function Fault & Event Recorder – Visualize fault waveforms & determine fault location & type Grid Compliance Monitoring Assessment
• Power Limit Monitoring
• HV/LV RT Monitoring
• Var Response
• Ramp Rate Monitoring
• Parameterization
• Compliance Status
• Web Interface
• Analysis Traceability
• Grid Code Rule Books
• Grid Code Assessment
• Statistical Reports
• Geospatial Digital Twin
• Scripting & Logic
• Visual Analysis
• ESS Monitoring
• Advanced Cybersecurity
• Central Station
