ETAP combines extensive modeling capabilities with advanced solution algorithms enabling you to undertake a wide range of studies required for grid connection and grid impact analysis of wind parks, PV generation, and other renewable energy power plants. Recurring tasks can easily be automated using etapPY™ scripting tools to streamline the analysis. ETAP Grid Code Compliance is an analysis module designed to evaluate compliance with utility grid code requirements. The application includes automated harmonic analysis for detailed power quality assessment report demonstrating that the generation facility is designed to comply with the applicable harmonic limits. Recognizing that there are increasing numbers of non-linear loads looking to be connected, grid code regulations governing their connection have been evolving throughout the world. Network owners have adopted industry standards such as IEEE 519, IEC 61000 series, etc., and developed specialized application guides such as ENA Engineering Recommendation G5/5 for harmonic voltage distortion planning and compatibility levels.

Grid Code Harmonic Compliance Software Benefits

• Evaluate the compliance to utility grid code requirements

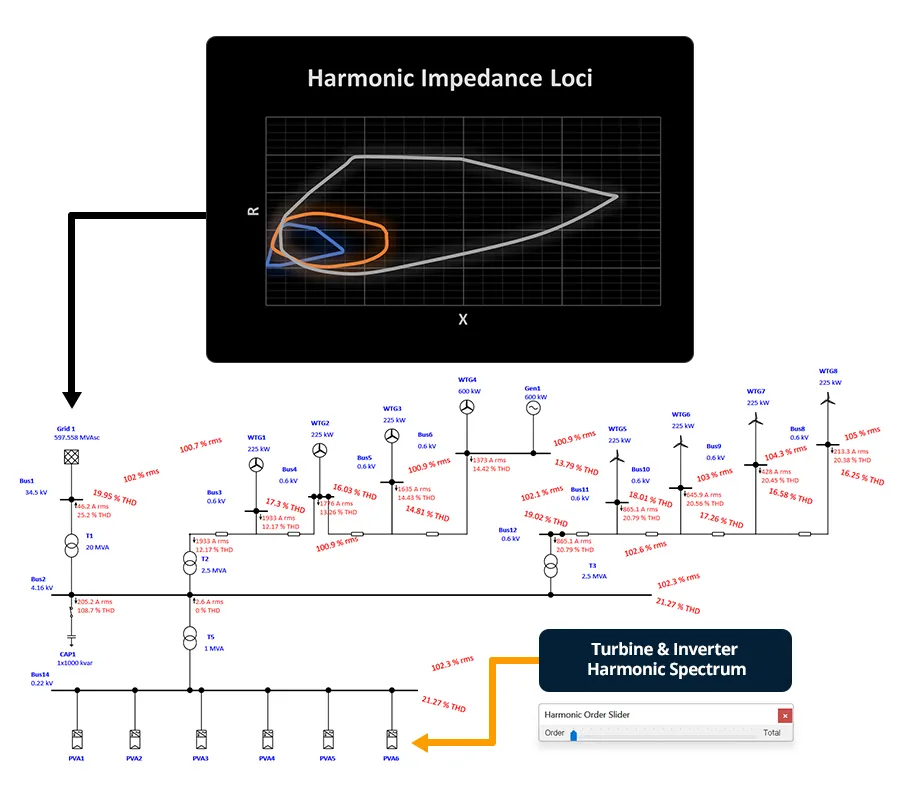

• Characterize transmission system harmonic impedances with R-X loci plots
• Identify combined pairs of impedance points (Transmission System impedance and Facility) leading to the highest Harmonic Voltage Distortion at the connection point
• Comply with ANSI, IEC & regional Grid Codes
• Analyze & maintain compliance with Energy Networks Association Engineering Recommendations G5/5

Grid Code Harmonic Compliance Software Key Features

• Automated harmonic analysis for detailed power quality assessment
• Individual impedance graphs (R-X) for each harmonic order
• Scatter plot of the harmonic impedance values under a range of operating conditions
• Include Allowed Incremental Harmonic Voltage Distortion Level
• Python Scripted & Customizable Excel Reports
• Wind Turbine Generator Harmonic Source
• Utilize Grid Driving Point Impedance Locus
• Incremental Harmonic Distortion Calculation
