Evaluate Flicker Levels Against Emission Limits​

Improve Power Quality with Flicker Evaluation

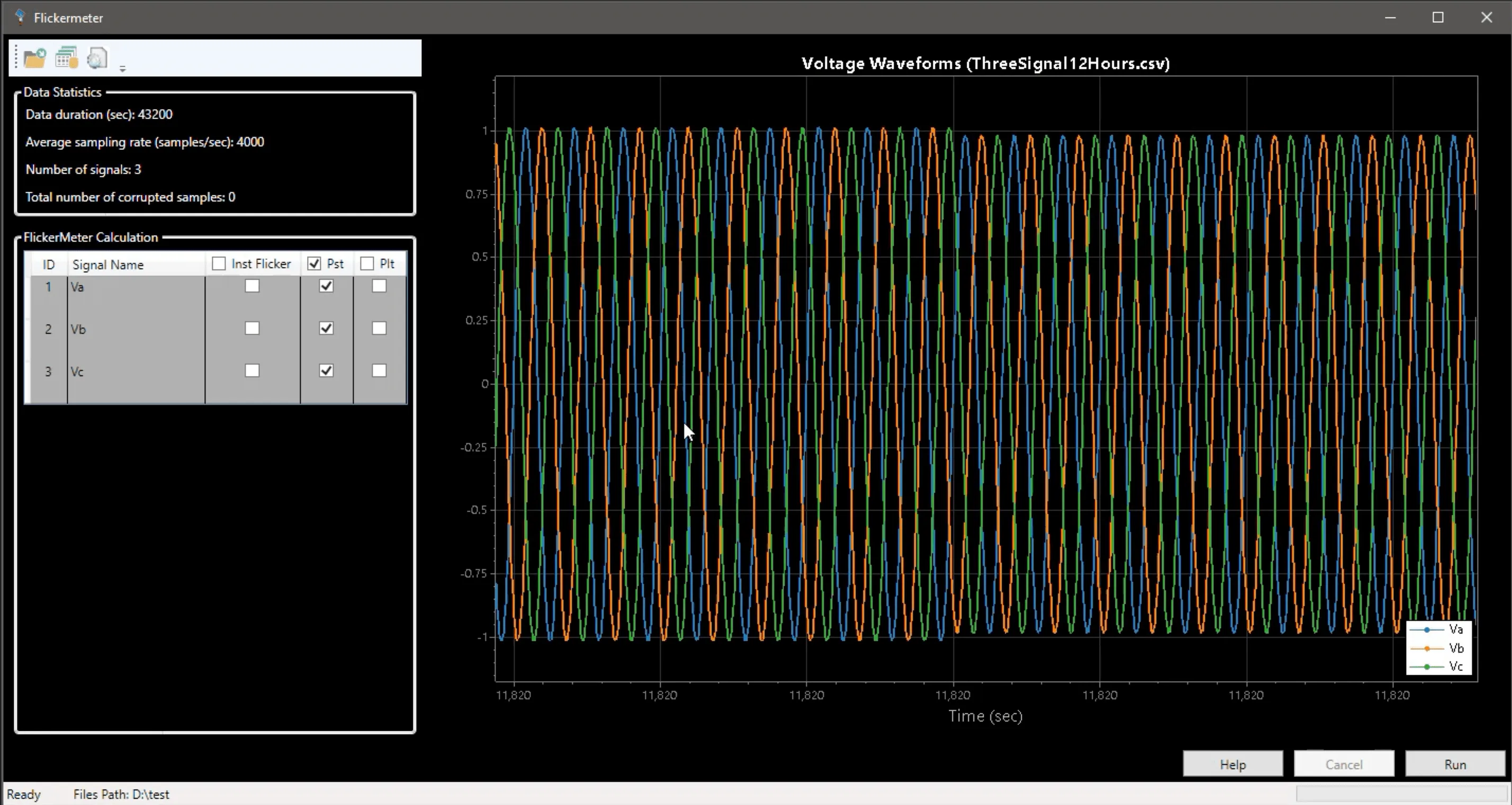

ETAP’s FlickerMeter evaluates flicker compliance against emission limits. Flicker calculations comply with IEC 61000-4-15, which is the standard for electromagnetic compatibility (EMC). FlickerMeter is part of the Power Quality applications in ETAP. FlickerMeter allows importing CSV-formatted data files and analyzes up to 20 signals at each run, to evaluate flicker compliance against emission limits. Flicker calculations comply with IEC 61000-4-15 which is the standard for electromagnetic compatibility (EMC) and the calculation provides instantaneous, short-term (PST), and long-term (PLT) flicker indices based on a voltage waveform loaded into the calculator. The purpose of this analysis is to determine the level of flicker in a voltage waveform originating from various starting and stopping actions of equipment and continuous time-varying loads within a system with, for example, induction machines or arc furnaces.

Key Features

• Instantaneous, short-term (PST), and long-term (PLT) flicker indices​
• Compliance with electromagnetic compatibility (EMC) - IEC 61000-4-15​
• Fast-responsive built-in plotting tool ​
• Signal processing capability​
  • Accepts CSV input voltage waveforms​
  • Up to 20 signals can be analyzed at once​
  • Handles up to 500 million data points (6.5 GB file size)​
  • Accepts waveform data with 3 common delimiters (comma, space, semicolon) ​
  • Input data statistics ​
  • Handles both 60Hz and 50Hz input data​
  • Automatically fills in NaN or non-numeric values in the input data
