Electromagnetic Transients Program

ETAP eMT™ offers a dedicated Electromagnetic Transients Program (EMT) for the simulation and analysis of power system transients. ETAP eMT provides an accurate and intuitive analysis software based on trusted EMT simulations powered by PSCAD's EMTDC engine. eMT is a simulator of AC power systems, low voltage, power-electronics, high-voltage DC transmission (HVDC), flexible AC transmission systems (FACTS), distribution systems, and complex controllers. When necessary, ETAP eMT integrates with ETAP's Transient Stability program to offer eMTCoSim™ - CoSimulation of Electromagnetic Transients and Phasors to collectively solve large, complex, and multi-disciplinary system models with higher fidelity.

Line & Cable Systems

• Insulation coordination
• Switching
• Design
• Wideband line & cable models

 Switching Transients / Surges

• Deterministic
• Probabilistic
• Single-pole switching
• High-speed reclosing
• Capacitor switching
• Fault clearing
• Transient-recovery voltages

 Shaft Torsional Stress

• Sub-synchronous resonance
• Switching-induced
• Unwanted modes

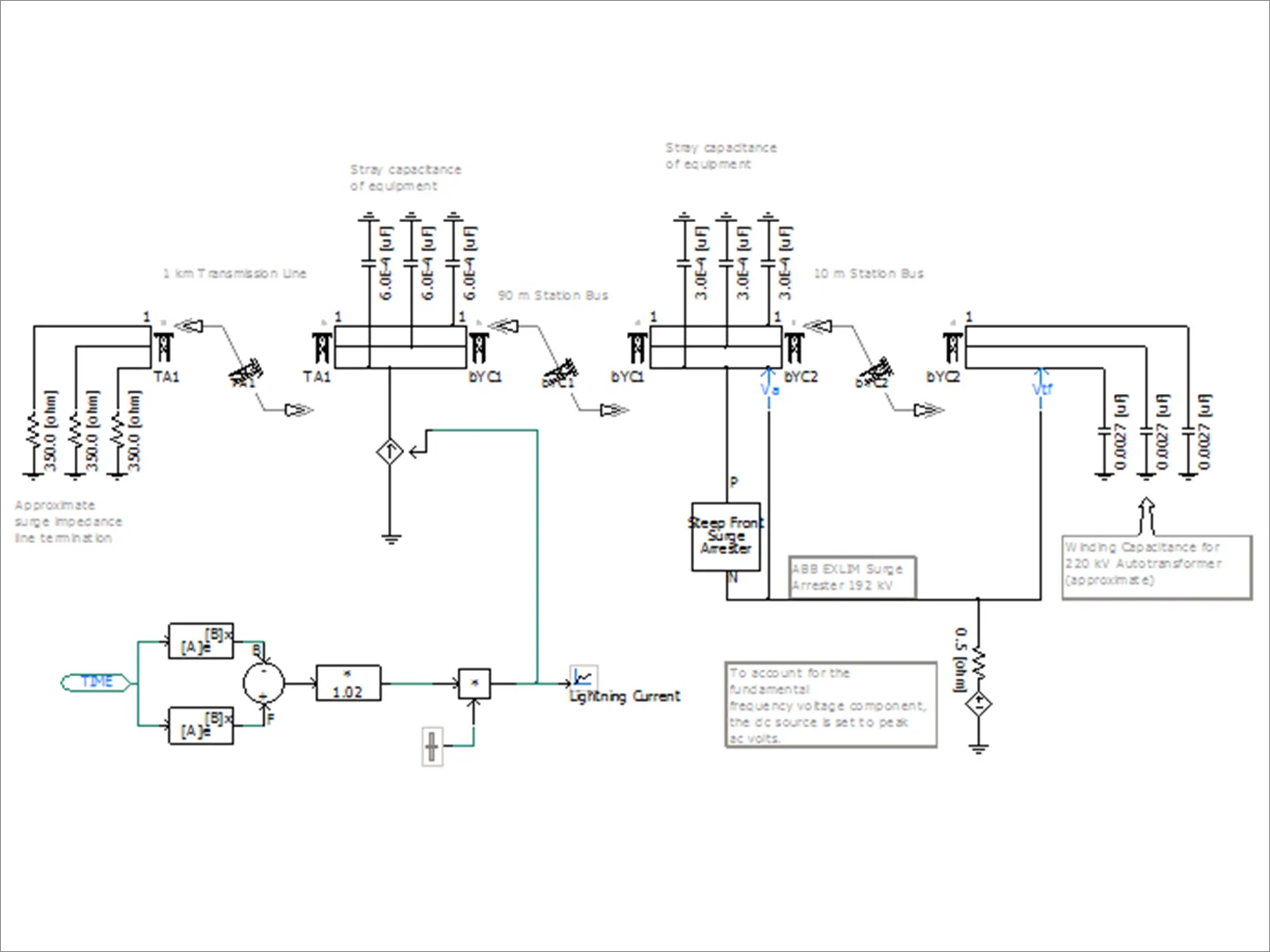

Lightning Surges & Ferro-Resonance

• Backflash
• Induced surges
• Incoming surges at stations
• Power oscillations
• Saturation problems
• Surge arrester influences
• Ferro-resonance
• Transformer-charging and capacitor-energization inrush currents

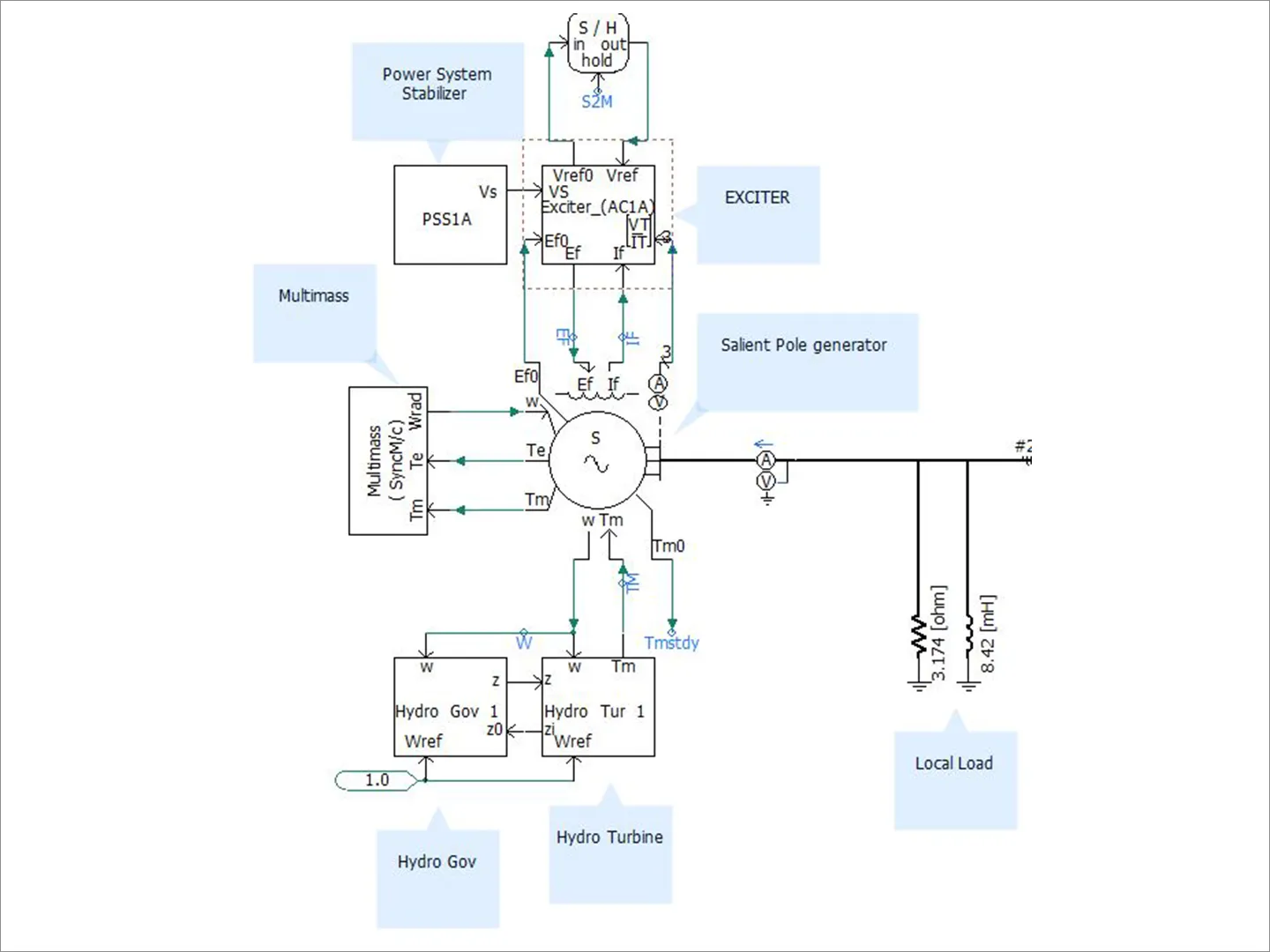

 Switchgear & Synchronous Machines

• Shunt compensation
• Current chopping
• Delayed-current zero conditions
• Auto-excitation
• Non-linear and piecewise linear control systems

 Power Electronics

• HVDC
• FACTS
• STATCOM
• eMT comes in several packages

eMT™ Unlimited Package

eMT software is a value-added feature to ETAP solutions and offered in two versions to simulate small to large networks. eMT Pro Unlimited version offer the following capabilities:

• eMT™ Electromagnetic Transient Program - Professional License
• Unlimited Node with 8 Parallel Simulations*
• eMTCoSim™ CoSimulation of Electromagnetic transients & phasors (requires transient stability module)
• ETAP – PSCAD One-way Data Exchange Interface

 eMT™ 200 Package

This version is perfect for simulating small systems and co-simulation studies. eMT 200 is fully featured and restricted to network size of 200 nodes (Note: control systems do not contribute to the node count).

• eMT™ Electromagnetic Transient Program - Professional License
• Total of 200 Nodes with 8 Parallel Simulations*
• eMTCoSim™ CoSimulation of Electromagnetic transients & phasors (requires transient stability module)
• ETAP – PSCAD One-way Data Exchange Interface   *Parallel Simulations  The parallel simulations feature permits projects to be run over multiple computer cores simultaneously, resulting in significantly faster results than when run in series over a single core. Parallel computing feature can be expanded to 16, 32, and 64 Cores as an option.
