Analyze & Visualize Thousands of Contingencies in Minutes

ETAP Contingency Analysis (CA) allows users to define component outage and failure scenarios. From the user-defined scenarios, system N-1 and N-2 contingencies are studied. ETAP contingency analysis employs a fast screening or ranking algorithm to select a ranked contingency list for detailed studies.

Contingency Analysis Capabilities

• N-1 and N-2 contingency assessment and ranking
• Fast screening method to scan outage list and identify higher risk contingencies for further evaluation
• Multiple graphical outage lists

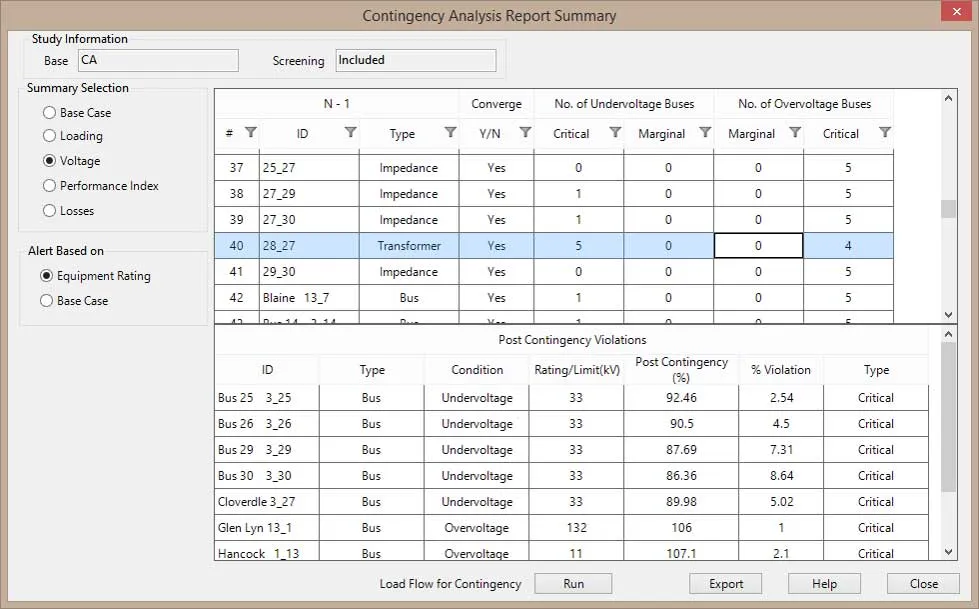

• Ability to compare contingency load flow with base load flow via graphical interface

Performance Indices

• Bus voltage security
• Reactive power flow change index
• Branch overloading index
• Real power flow change

Contingency Analyzer

• Complete load flow
• Interrupted generation power loss
• Interrupted customer power loss
• Interrupted number of customers
• Interrupted power lost cost
