AUTOSPOOL is a fully automated, intelligent spooling software designed to streamline and accelerate the generation of spool drawings, erection isometrics, and related reports. Engineered for piping engineers, fabricators, and construction teams, AUTOSPOOL integrates seamlessly with 3D model data and applies project-specific rules to deliver precise, ready-to-use outputs. Whether dealing with revision management, weld tracking, or real-time fabrication progress, AUTOSPOOL reduces manual effort, minimizes errors, and improves project turnaround.

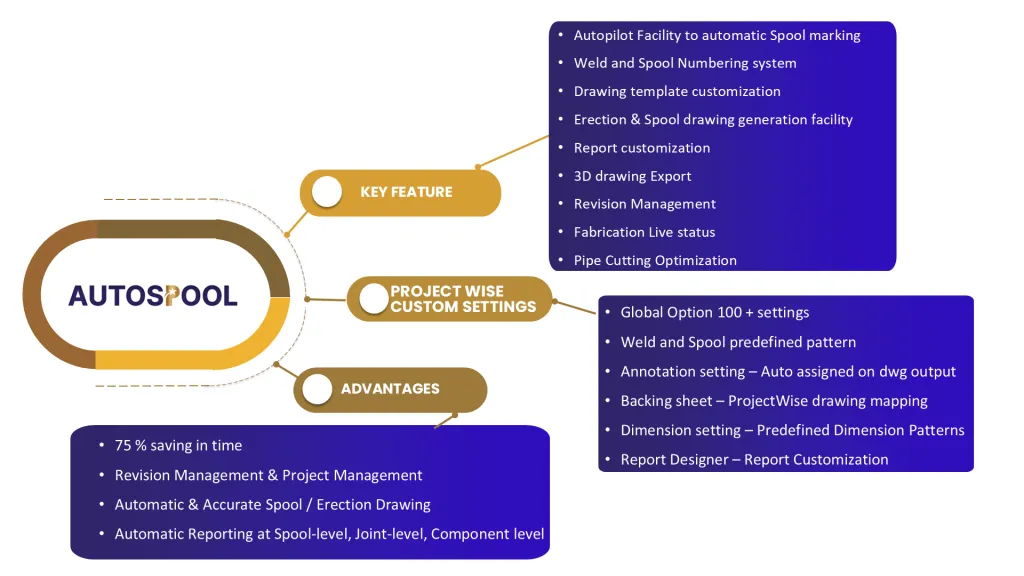

Features

AUTOPILOT

• AUTOPILOT is AUTOSPOOL’s intelligent automation module that allows users to define and apply project-specific rules for spooling.
• A fully automated spooling engine that runs on predefined rules and intelligently handles the entire spooling process from start to finish with minimal user intervention.
• Utilizes intelligent, rule-based logics to manage and automate spooling processes. Spooling rules can be customized based on specific project criteria, material types, or workflow stages, improving precision and reducing manual effort.
• Project-Specific Rule Setup: Define rules tailored to project needs (e.g., max pipe length, material type, weld limits).
• Batch Processing: Automatically process large volumes of drawings, generating spools and reports in one run.
• Time-Saving Automation: Frees engineering resources by replacing repetitive manual tasks.
• Error Reduction: Built-in checks catch inconsistencies early, reducing errors and rework.

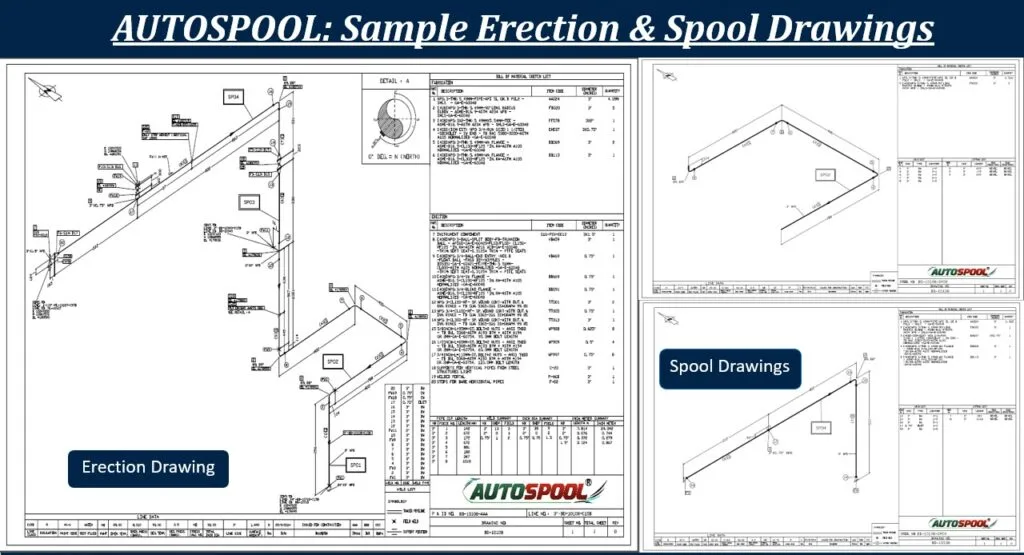

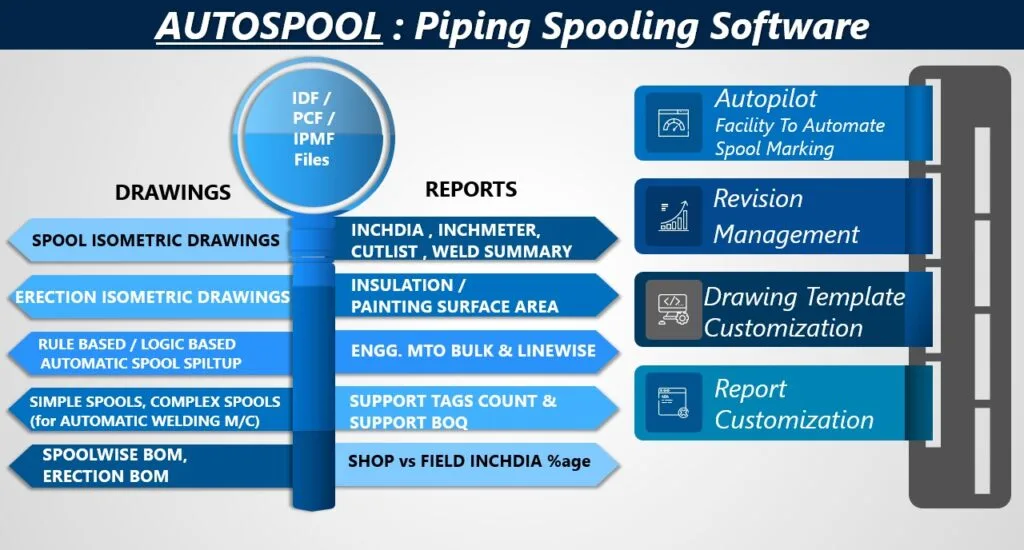

Erection & Spool Drawing Generation

• Automatically produces fabrication spool drawings and detailed erection drawings based on project templates and rules.
• Spool Drawing Automation: Breaks down piping into spools with dimensions, weld numbers, and tags.
• Erection Drawing Output: Shows assembly sequence, routing, and components.
• Template-Based Output: Custom templates with MTOs, weld lists, and fabrication data.

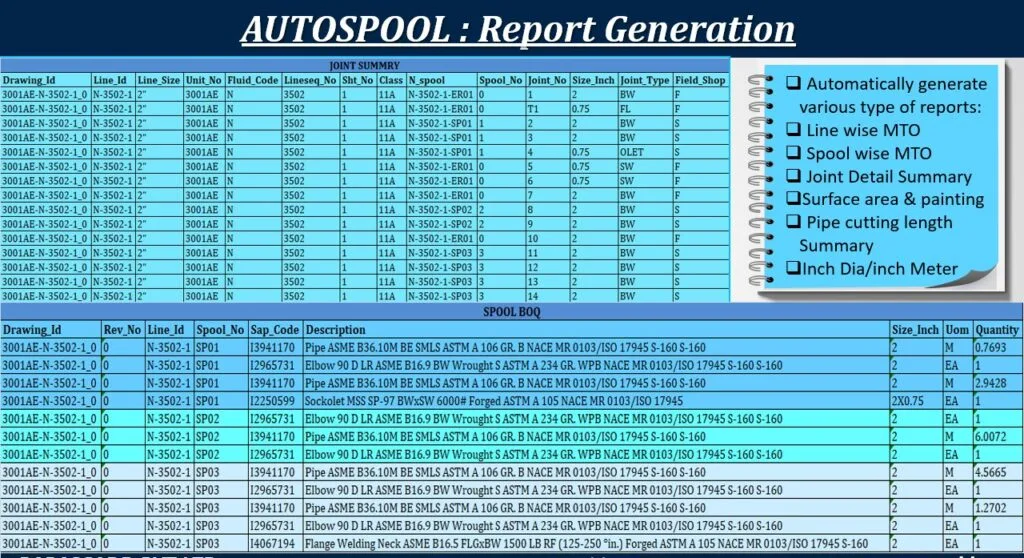

Report Generation

• Generates comprehensive reports (Excel, CSV, TXT, LIS, MTC, etc.) using real-time data.
• Types: Line-wise MTO, Spool-wise MTO, Joint Summary, Surface Area & Painting Reports, Pipe Cutting Summary, Inch DIA/Meter Reports.

3D Drawing Export Functionality

• Integrated with SPOOLMAN/ERMAN for 3D progress visualization.
• Live Progress Mapping: Tracks fabrication, erection, material statuses in 3D model.
• Color-Coded Visualization: Status-based color coding.
• 3D DWG Export: Updated 3D DWG files with current statuses.
• System Integration: Pulls data from tracking systems.
• Section-wise View Control: Focus on specific spools/lines/areas.

Revision Management

• Automatically compares revisions and transfers spool data intelligently.
• Automated Revision Comparison, Smart Data Transfer, Visual Change Markups, Change-Based Reports.

Automatic Weld / Spool Numbering System

• Auto numbering system with various formats for welds and spools.
• Spool types: Linewise, Sheetwise, Subspool, Graphics typewise, Erection spool numbering.
• Weld types: Categorywise, Typewise, Sheetwise, Spoolwise, Custom joint numbering.
• Auto Weld Numbering, Auto Spool Numbering, Rule-Based Configuration, Revision-Aware.

Fabrication Live Status

• Real-time updates on fabrication progress integrated with SPOOLMAN/ERMAN.

Scope Inch DIA Welding & Spooling Progress

• Inch-DIA Calculation, Welding Scope Monitoring, Spool Progress Tracking, Dashboard View

Drawing Template Customization

• Customize title blocks, fonts, logos, tables, layers, and annotations.

Report Designer

• Create and modify reports (Excel, CSV, PDF, TXT, MTC) using custom layouts and fields.

Facility to Export PCD File

• PCD export for CNC pipe cutting systems, includes all cutting and beveling details.

External Data Mapping Facility

• Import and sync data from Excel/CSV/TXT for tagging, drawing, and tracking.

Combine Multiple PCF/IDF

• Loop Drawing Generation, Hydrotest Package Creation, Drawing & Report Outputs

As-Built Drawing Generation

• Captures fabrication/field changes using Shop-Field-Shop logic.

Material Transfer Facility

• Transfer/cut pipe segments between drawings to optimize material usage and reduce waste.

Add Component Facility

• Add components to drawings, auto-update weld IDs, MTOs, and reports.

Project Customization

• 100+ settings including dimension styles, annotations, global rules, attribute settings, and more to match any project/client requirements.

Benefits

• Streamlined workflow
• Reduced errors
• Significant time and cost savings
• Improved efficiency and accuracy
• Increased confidence in project outcomes
