Auto Protection & Coordination Software

Star™ Auto-Evaluation - Boosts Productivity & Saves Time Star Automated Protection and Coordination Evaluation software provides automatic detection and evaluation of system protection and coordination / selectivity based on customized design criteria and industry guidelines.

• Reduces months of work to few hours
• Quickly create TCC curves based on automated path of protection
• Easily identify false tripping and miscoordinations
• Avoid mistakes and laborious reviews
• Standardize on industry rules and guidelines for system protection & coordination
• Gain insight to the scope of protection study at the front-end of the project

Auto Protection & Coordination Software Key Features

• Automated & intelligent detection of protection zones
• Automated Overcurrent Protection & Coordination Evaluation
• Support of NEC, IEEE, IEC standards & industry practice rules
• Customized evaluation criteria based on Star RuleBook™
• Automatic selection of applicable fault locations
• Calculation of through-fault currents
• Selection of fault type for coordination evaluation
• Automated display of applicable device TCC curves
• Extensive condition & violation messages of evaluation criteria
• Color-coded tabular & graphical display of results
• Zone Selective Interlock scheme evaluation
• Interactive result viewer to correct & reevaluate violations
• Easy-to-make reports from graphical snapshots & tabular results

Interactive Result Viewer

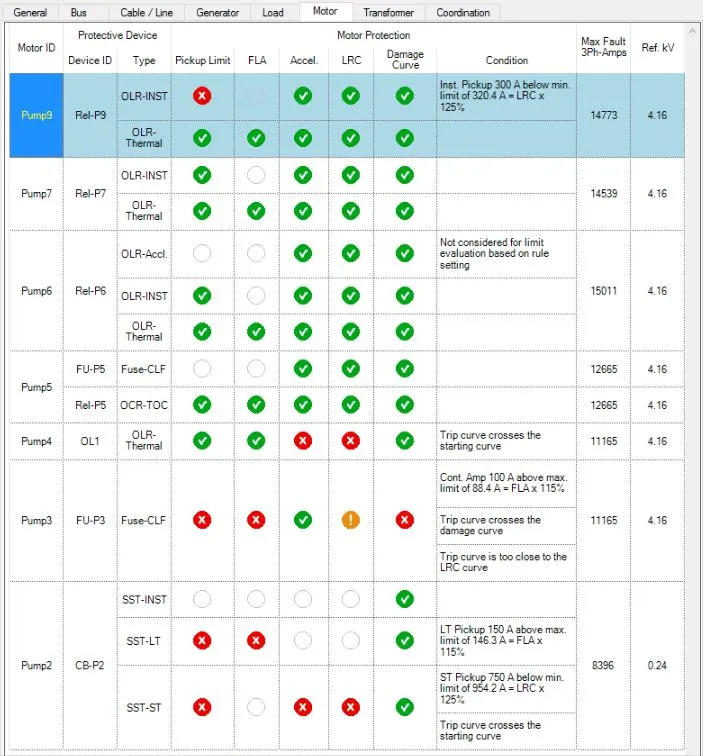

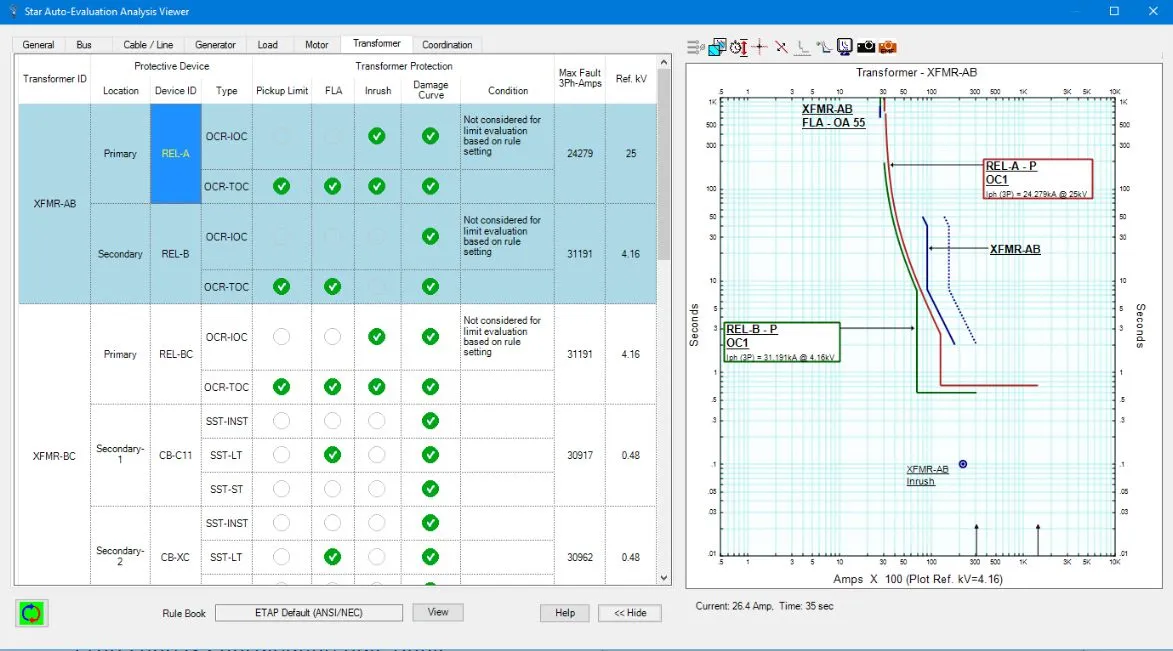

The evaluation results of protective device protection and coordination study are displayed in tabular and graphical format for easy and quick reference. The Star Auto-Evaluation Viewer highlights detected violations and concerns of equipment protection and device coordination for possible correction and adjustment of protective device settings.

Protection & Coordination Rule Book

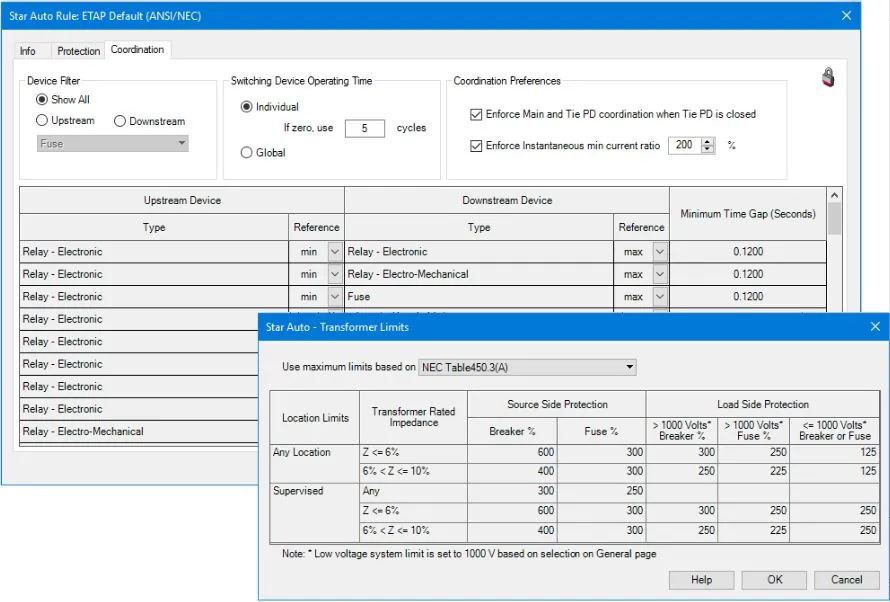

Protection rules are applied to evaluate the settings of the protective devices for equipment protection against possible damage. Coordination rules help identify the time-overcurrent conflicts between downstream and upstream protective devices to help you set the optimal setting. ETAP Star RuleBook offers a set of default rules based on industry standards and guidelines. You can customized and apply different evaluation criteria rules based your company / industry practices.
