Limiting Incident Energy Exposure with ArcBlok™

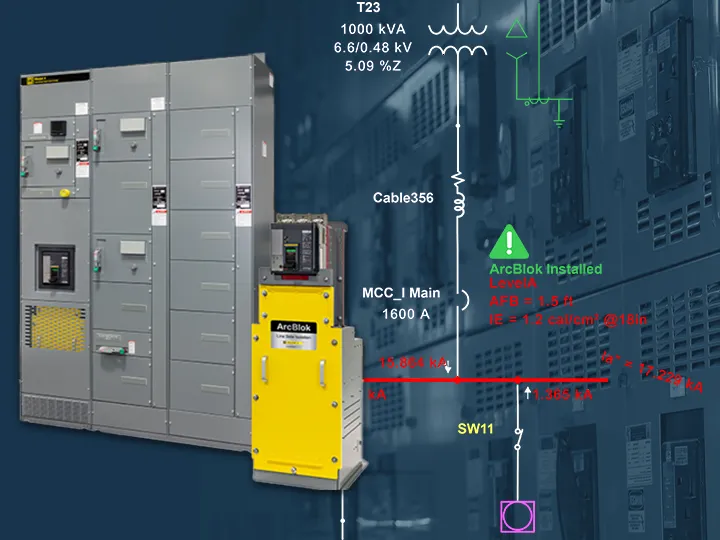

Safeguard workers and elevate Arc Flash Hazard Analysis to new heights with ArcBlok & ETAP Typically the highest incident energy exposure in equipment is associated with Line-Side arcing faults. ETAP has the ability to model various mitigation technologies for these locations and now has incorporated the modeling of Energy-Reducing Line Side Isolation. This new option allows the Digital Twin modeling of Schneider electric ArcBlok™ which limits the incident energy exposure for line side arcing faults.

• Reduce Likeliness of Line Side Arcing Faults
• Improve Safety
• Minimize Equipment Damage

Key Features

• Automatic check for valid ArcBlok application.
• Minimal data entry required to model via the enclosure editor.
• Globally enable/disable consideration for Energy-reducing line isolation equipment via Arc-Flash study case.
• ArcBlok graphical symbols allow easy identification of where the mitigation technology is applied.

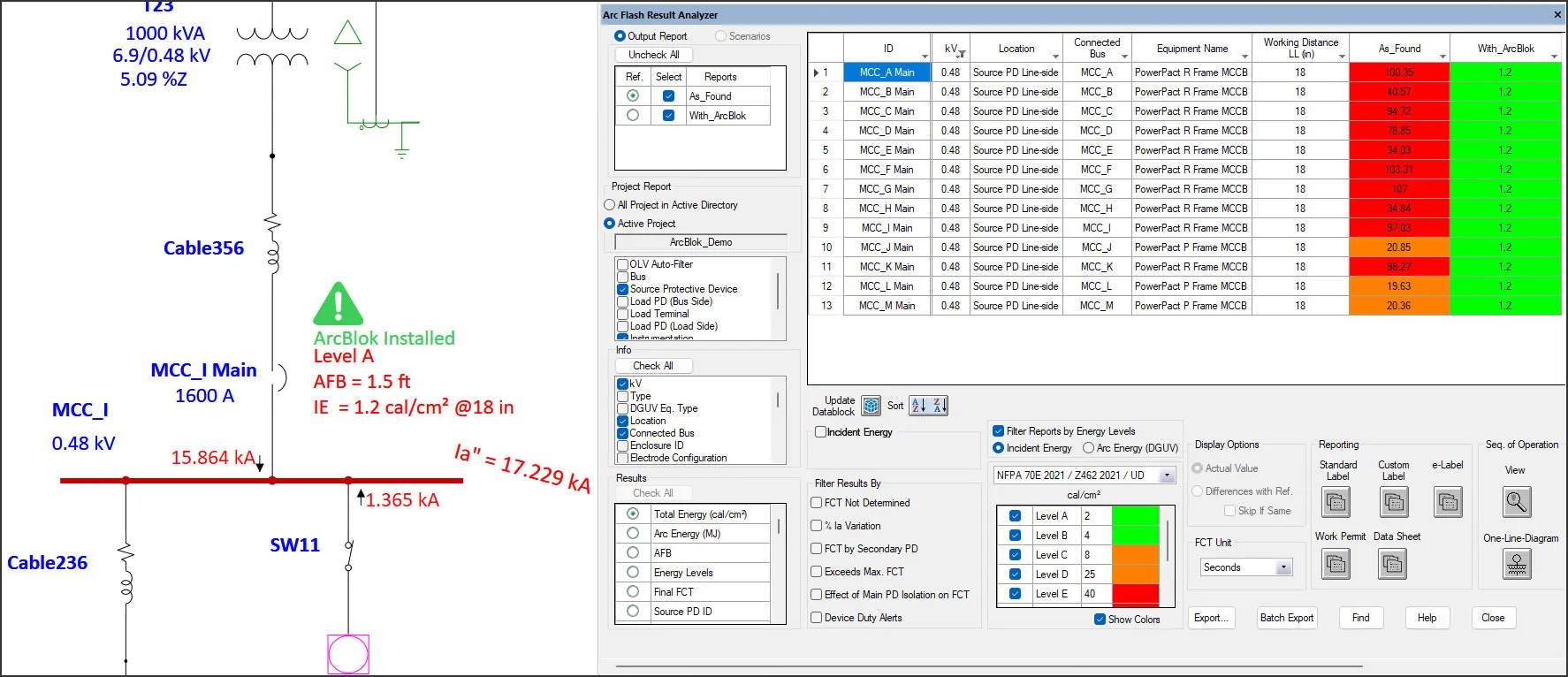

• Easily report locations applying the mitigation technology using the enclosure editor, datablocks and the Arc-Flash Result Analyzer.
• Label equipment with manufacturer specific incident energy
