ZEISS ZEN 3D Toolkit is a specialized module within the ZEISS ZEN microscopy software suite, designed to automate and streamline 3D image acquisition, reconstruction, and analysis for microscopy users. The toolkit enables precise alignment and reconstruction of section images for 3D visualization, supporting both light and electron microscopy modalities. It features wizard-based workflows for calibration, acquisition, alignment, and correlation, allowing users to efficiently process large datasets and multiple regions of interest. The toolkit supports hierarchical image acquisition, automated section detection, and advanced processing functions such as deconvolution, spectral unmixing, and colocalization. Integration with coded microscope components and hardware control interfaces ensures reproducible and accurate imaging. ZEN 3D Toolkit is suitable for routine and complex experimental setups, offering compatibility with other ZEN modules for extended functionality.

Key Features

Automated 3D Image Acquisition & Reconstruction Automates the collection and alignment of section images for 3D sample reconstruction.

• Wizard-based workflows for calibration, acquisition, alignment, and correlation.
• Precise repositioning and section detection for accurate 3D models.

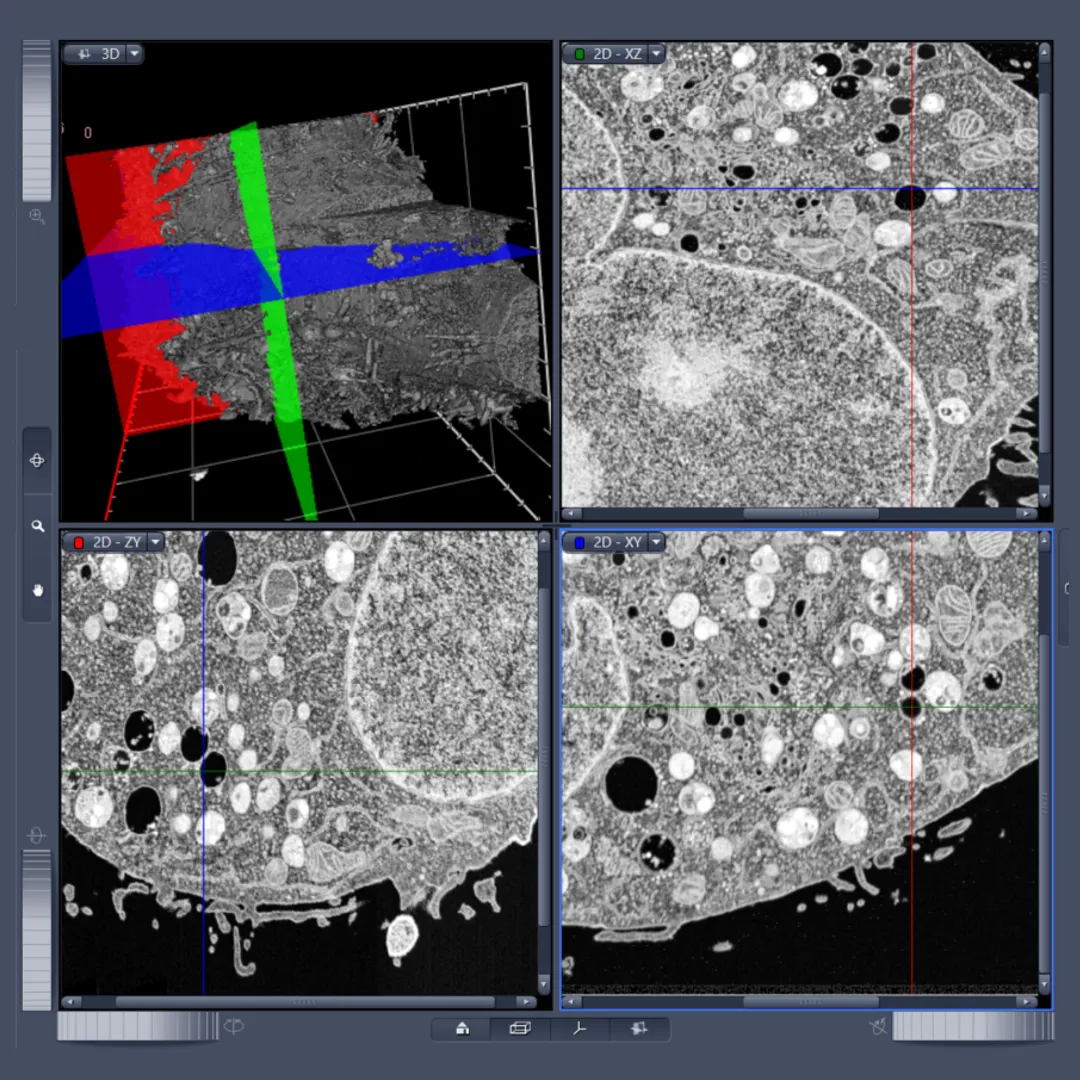

Advanced 3D Processing & Visualization Provides tools for rendering, deconvolution, and quantitative analysis of 3D image stacks.

• 3D rendering with ray tracing for large datasets.
• Deconvolution algorithms to restore and improve 3D information.

Correlative Microscopy Integration Combines data from light and electron microscopy for multimodal analysis.

• Unified interface for LM and SEM systems.
• Overlay and navigation of multimodal data.

Hierarchical & Multi-ROI Acquisition Supports acquisition of overview and detailed images across multiple regions.

• Automated transfer of regions of interest to all identified sections.
• Definition and imaging of multiple ROIs per section.

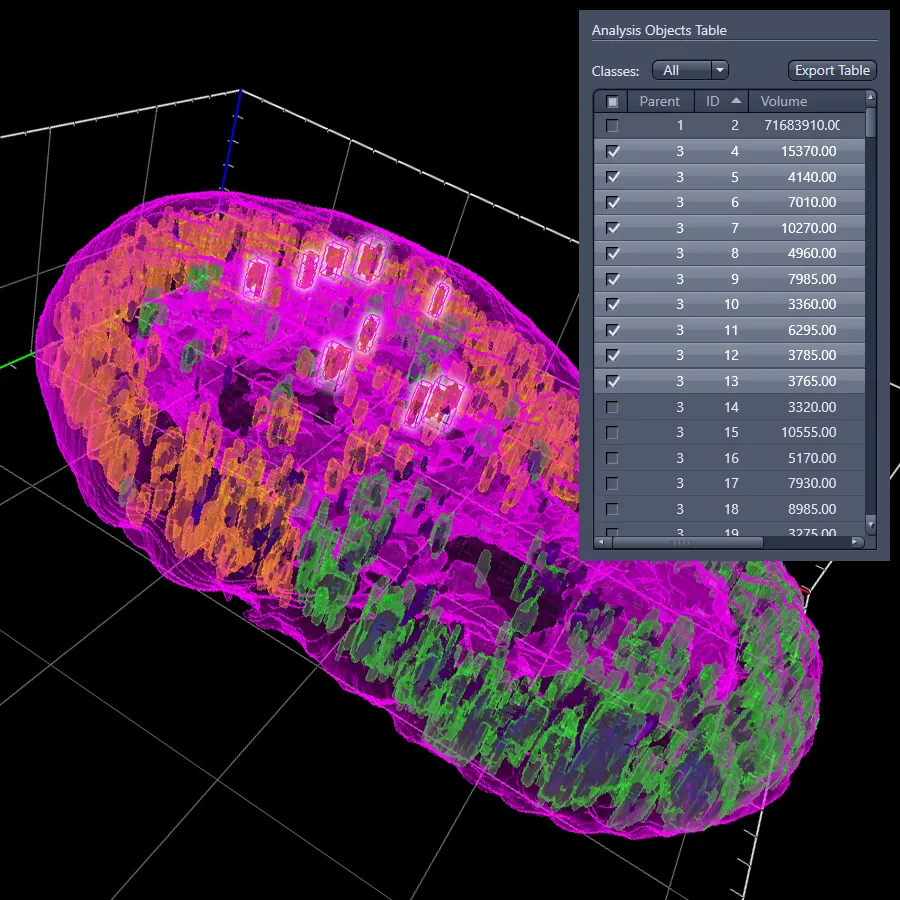

Advanced Analysis Tools Includes measurement, colocalization, and physiological data analysis.

• Quantitative analysis of 3D data stacks.
• Colocalization and spectral unmixing for multichannel images.

Benefits

Efficiency in 3D Imaging Workflows Streamlines complex 3D acquisition and analysis tasks.

• Reduces manual effort and improves reproducibility.
• Enables high-throughput and large-scale studies.

Comprehensive Multimodal Analysis Facilitates integration of different microscopy modalities.

• Enhances data quality and research insights.
• Supports advanced experimental designs.

Scalability and Flexibility Handles large datasets and diverse imaging requirements.

• Suitable for routine and advanced research applications.
• Compatible with various microscope systems and modules.
