ZWVectorization Tool

Overview

ZWVectorization Tool is an easy-to-use plugin that converts raster images to DWG drawings quickly and accurately. With this tool, you can easily convert scanned or hand-drawn legacy drawings into editable, high-quality DWG drawings, saving you significant time and money spent on manual redrawing.

 Note:

1. The Raster to Vector Conversion function in ZWCAD or ZWCAD MFG supports images up to 2048 x 2048 pixels and does not include text recognition. For more advanced features, download ZWVectorization Tool and enjoy a 5-day free trial.
2. Please install ZWCAD/ZWCAD MFG before downloading ZWVectorization Tool.

 Terms & Conditions:

1. Participants in certain countries or regions may not be eligible for this promotion. Please consult your local reseller for further details.
2. ZWSOFT reserves the right to modify, suspend, or terminate this offer at any time without prior notice.
3. ZWSOFT reserves the right of the final interpretation of the offer.

Features

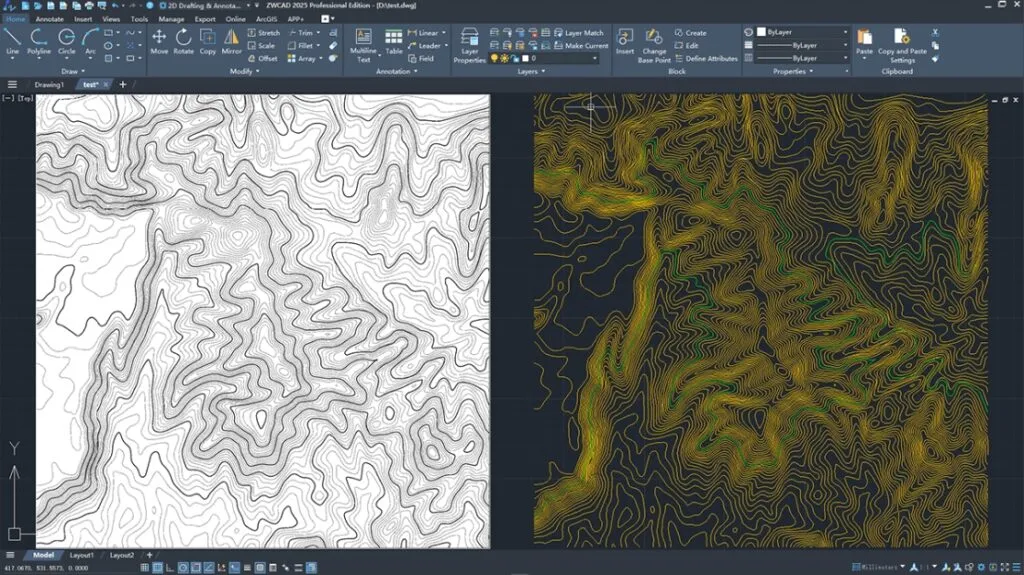

• Convert images (JPG/PNG/TIF) to DWG with one click.
• Convert text in images to text objects.

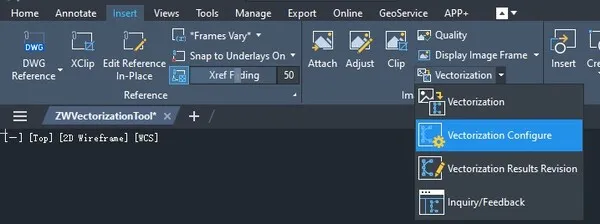

• Offer modification tools (Merge, Connect and Break) to fine-tune converted results.
• Objects can be automatically created in different layers according to their types (lines, polylines, arcs, circles, text) after conversion.
• Support parameter configuration to meet different project requirements.
• Support images up to 20000 x 20000 pixels.
