XGSLab is advanced software for electromagnetic simulation, grounding system analysis, power system simulation, and lightning shielding that is compliant with global standards (IEC/TS 60479-1, EN 50522, and IEEE Std 80).
Vendor
Bentley Systems
Company Website

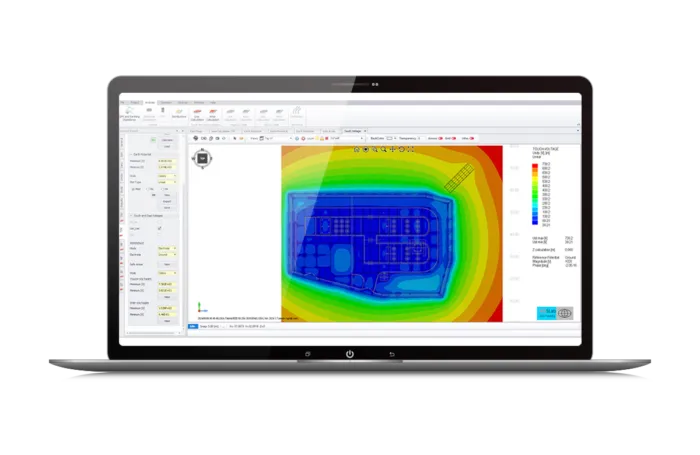

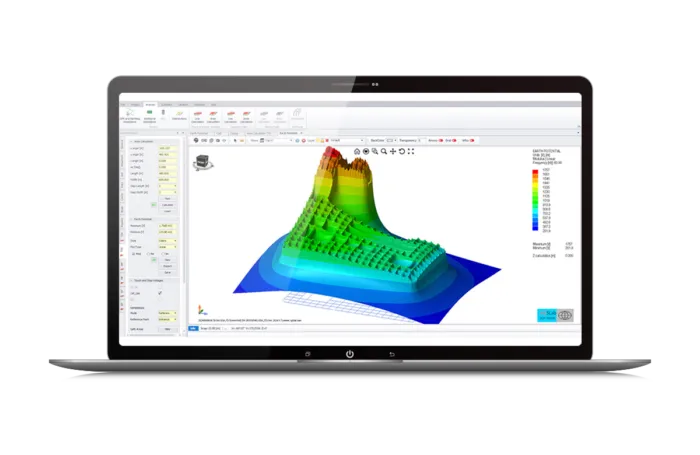

Explore the capabilities of XGSLab
XGSLab is advanced software for electromagnetic simulation, grounding system analysis, power system simulation, and lightning shielding that is compliant with global standards (IEC/TS 60479-1, EN 50522, and IEEE Std 80). As everyone’s needs are different, XGSLab Grounding is offered in a variety of packages – so you can choose what best meets your requirements. XGSLab Grounding Packages GSA Standard 3Layer Suitable for medium to small grounding systems, such as industrial substations and transmission tower grounding. GSA Standard Suitable for medium to small grounding systems in complex, multi-layer soil strata. GSA_FD Professional Suitable for any transmission, generation, and utility-scale grounding systems analysis. Grounding Analysis Pro Bundle Combines GSA, GSA_FD, & NETS. NETS Detailed fault current split calculation.
Why Choose GSA_FD
GSA_FD, is the modern solution for grounding analysis calculating self and mutual impedances, in addition to all features of GSA. With a PEEC full wave numerical model, it handles any utility scale and complex grounding systems efficiently.
Why Choose GSA
Unlock the potential of GSA, a widely recognized module for ground system analysis and design. It includes soil analysis, custom conductors, and multiple electrodes. With a PEEC static numerical model, GSA offers a seamless workflow, integrated importation features, automated reports, and fault split capabilities. Ideal for medium and small grounding systems.
Why Choose NETS
GSA_FD, is the modern solution for grounding analysis calculating self and mutual impedances, in addition to all features of GSA. With a PEEC full wave numerical model, it handles any utility scale and complex grounding systems efficiently.
