Overview

The WORKNC Viewer, developed by Hexagon Manufacturing Intelligence, is a specialized tool designed to enhance CNC machining operations by allowing machine operators to load, analyze, and simulate CAM (Computer-Aided Manufacturing) programs before executing them on milling machines. This pre-execution analysis helps identify potential issues, thereby reducing interruptions during machining and contributing to a more efficient and error-free production process.

Features and Capabilities

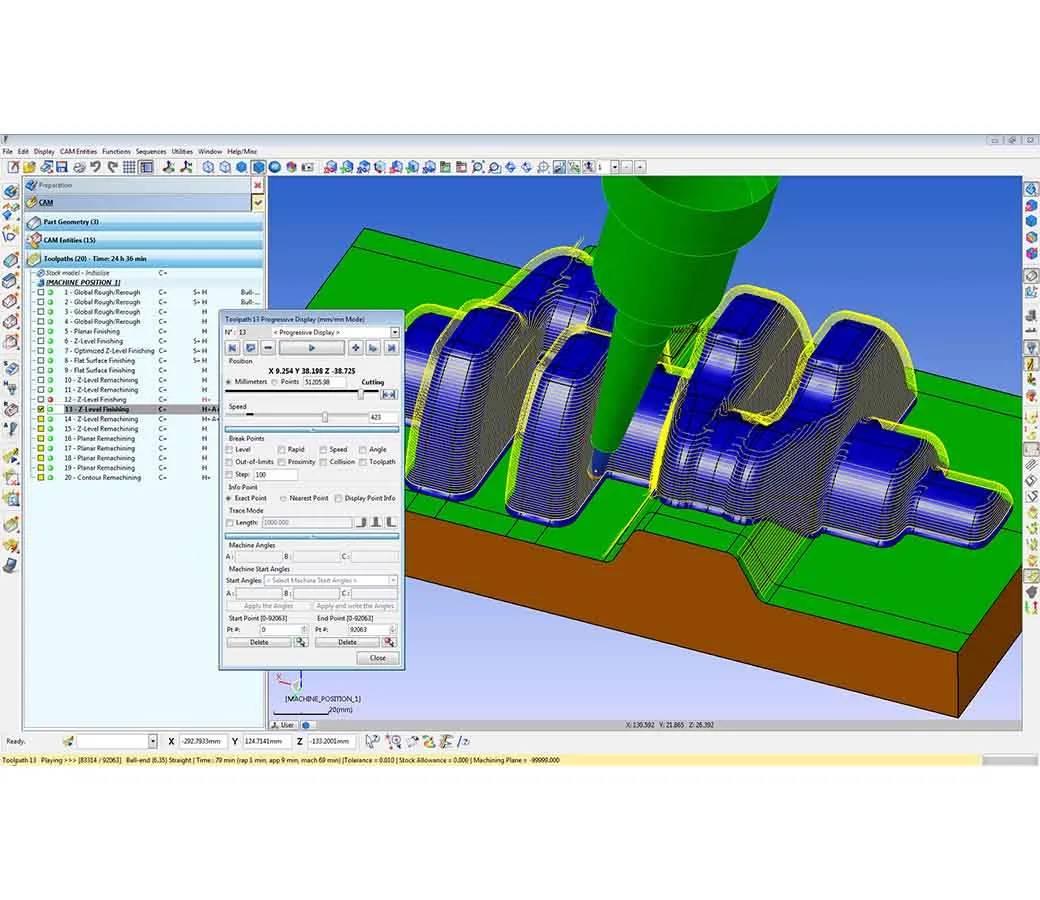

• Display and Simulate Toolpaths: Operators can visualize the toolpaths generated by CAM programs, ensuring they follow the intended machining strategy.
• Stock Condition Visualization: The viewer displays the condition of the stock material before and after each operation, providing insights into material removal processes and aiding in planning subsequent machining steps.
• Machine Simulation and Collision Checking: By simulating machine movements, the WORKNC Viewer checks for potential collisions, enhancing safety and preventing damage to both the machine and workpiece.
• Paperless Operation: The tool offers comprehensive digital information, reducing the need for printed process sheets and supporting a paperless workflow.
• License Optimization: Utilizing the WORKNC Viewer for part viewing frees up full WORKNC licenses for programming tasks, optimizing resource allocation within the manufacturing environment.
