WarehouseBlueprint - Explanation with clarity

Difficulty in visualizing a new warehouse racking layout in 2 dimensions (e.g. CAD drawings)? Having issues explaining to clients the proposed warehouse layout changes? WarehouseBlueprint software has a solution to your problems. With the ability to draw in 3D, you will be able to help your client understand the layout of the warehouse clearly. Imagine this. Instead of presenting the typical 2D warehouse layout, you are now able to showcase in 3D. Interested?

How it works

• Download Sketchup
• Install WarehouseBlueprint
• Begin Modeling

Warehouse Dynamic Components Extension - Powered by Sketchup

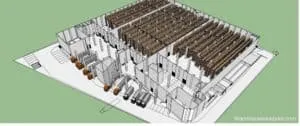

• Come up with a 3D pallet racking drawing of various configuration within seconds.

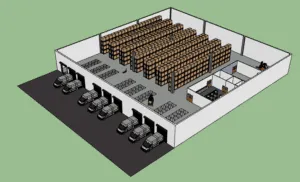

• Model the entire warehouse within minutes.
• Make changes to the dynamic components instantly in your warehouse model.
• Components of common storage medium and items in a warehouse.
• Able to export 3D model as a jpeg file for presentation.

3D Heatmap & Pick Path Extension - Powered by Sketchup

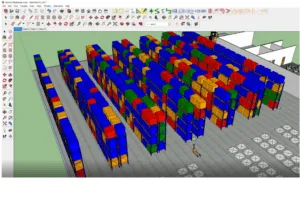

• Generate warehouse heatmap in 3 dimension with volume frequency data.
• Determine pick path of operators with inventory location list and pick list information.
• Useful for operations to visualize the locations of the fast moving items.
• Enables the calculation of the time required to pick products from different storage locations.
• Able to show the difference in time comparing as-is to to-be situations.
