Overview

Vortex Studio is a comprehensive real-time simulation and visualization platform developed by CM Labs Simulations. It empowers organizations to design, prototype, and test complex mechanical systems in safe and controlled 3D environments. By delivering high-fidelity simulation of equipment, vehicles, and operator interactions, the software supports engineering design, virtual prototyping, mission rehearsal, and operator training. It is also used for serious gaming applications, enabling realistic and immersive experiences. Vortex Studio bridges the gap between concept and deployment by providing accurate digital twins that help reduce costs, accelerate development, and improve decision-making across industries.

Features and Capabilities

• **Real-Time Simulation Engine: **Provides accurate modeling of rigid-body dynamics, collision detection, contact forces, and dynamic responses, ensuring realistic simulation of mechanical behavior such as vehicle performance, cable mechanics, and earthworking equipment.

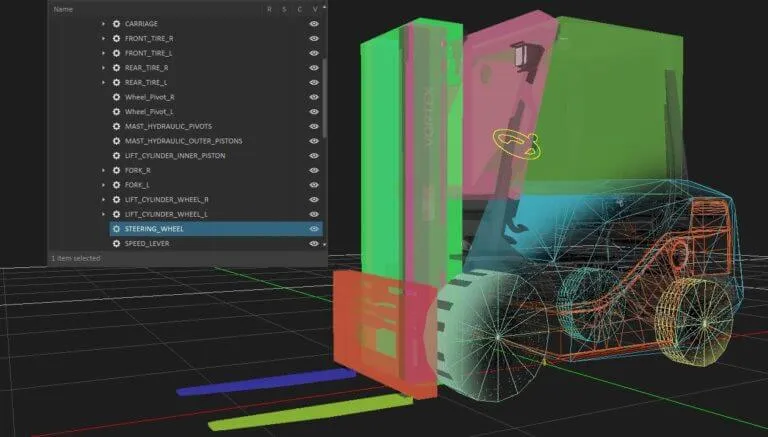

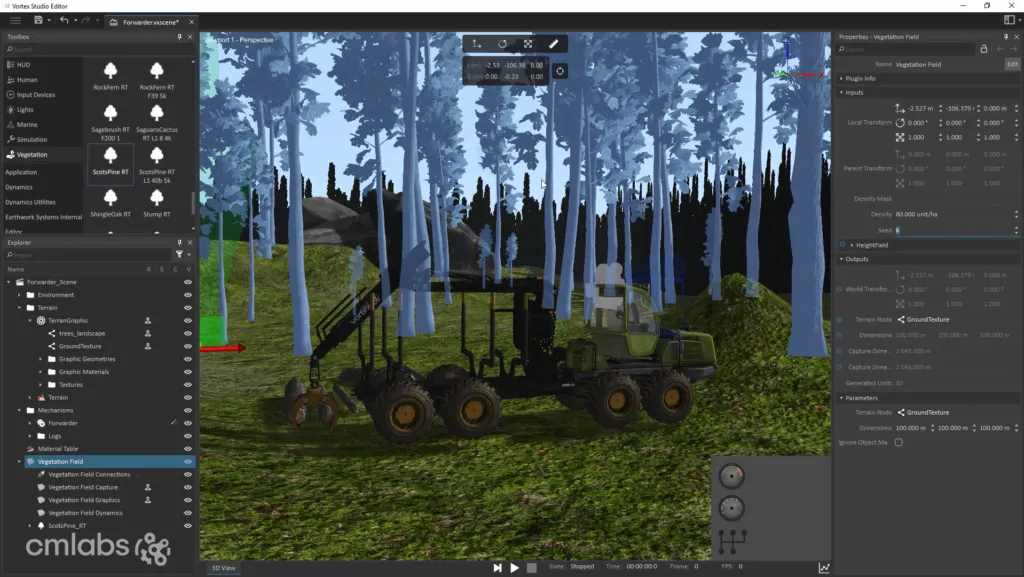

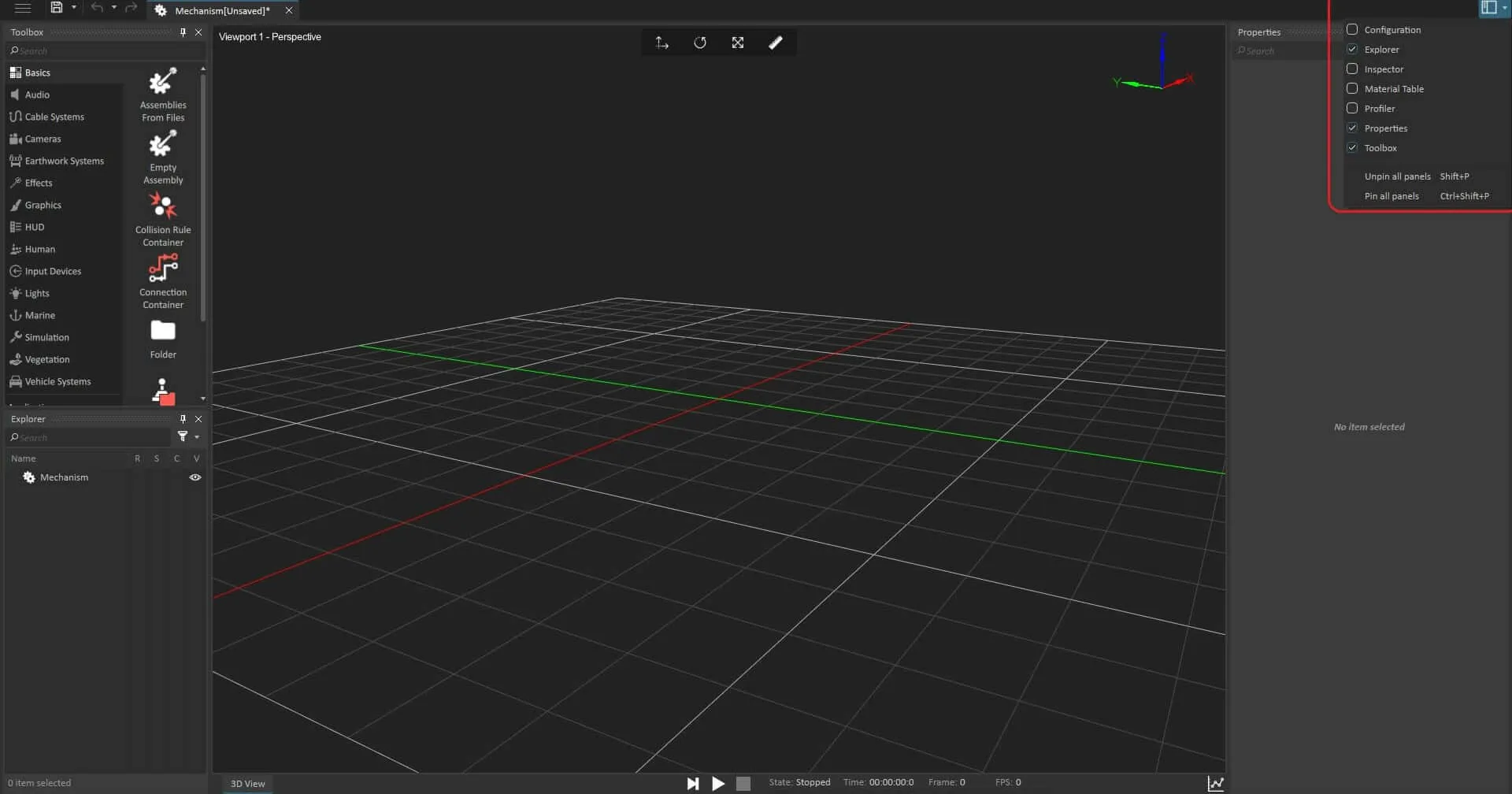

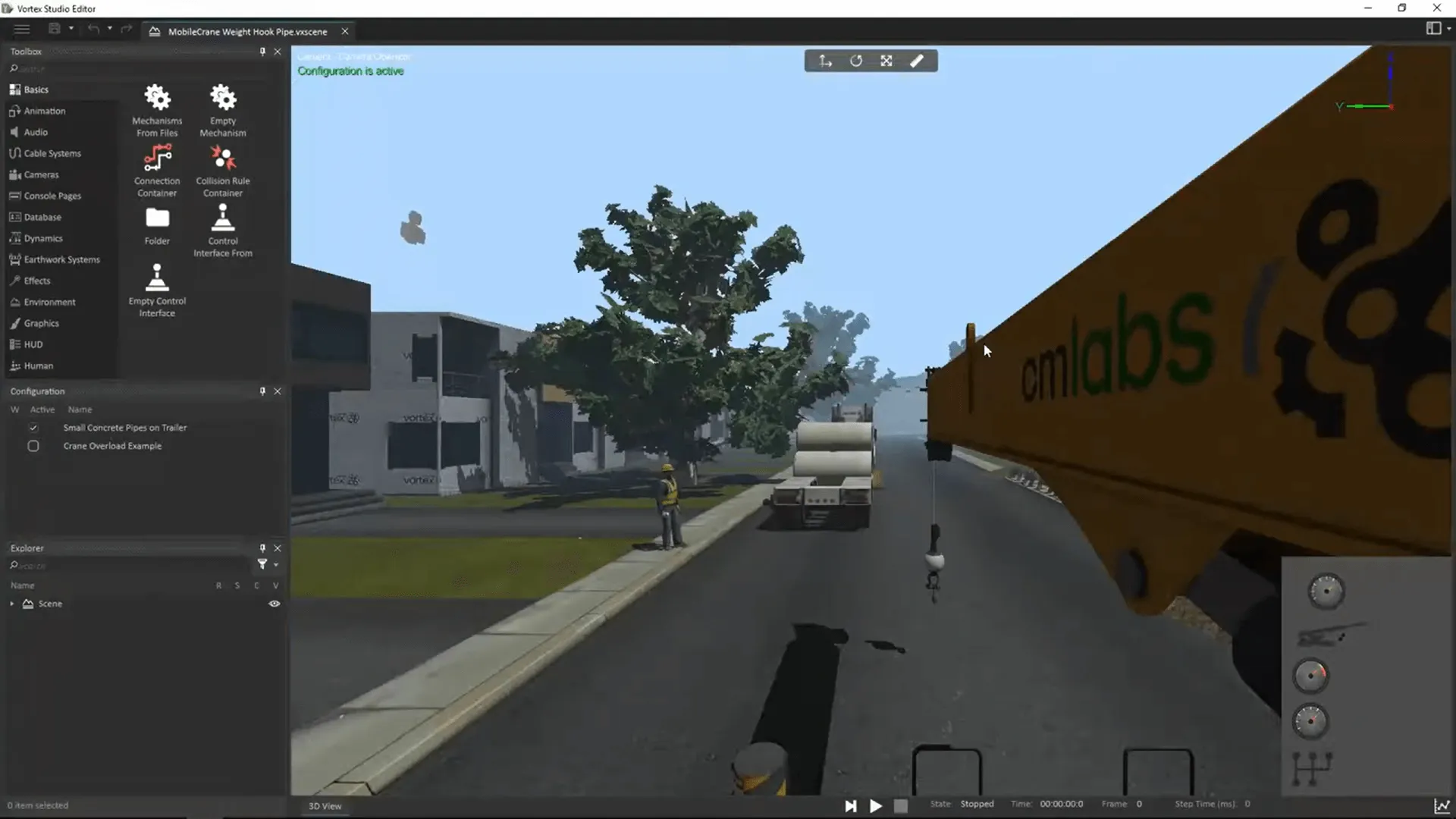

• **No-Code Editor Environment: **The Vortex Editor allows users to visually assemble digital twins and mechanical systems with an intuitive drag-and-drop interface. It simplifies the creation of complex systems, making it ideal for simulating off-road vehicles, cranes, or heavy machinery.
• **Platform Integration: **Seamlessly connects with third-party platforms such as Unity, Unreal Engine, Simulink, ROS2, OPC, and CANOpen. This enables developers and engineers to build immersive training systems, integrate robotics, or extend simulations into other environments.
• **Training and Deployment Tools: **Includes Vortex Activate and the Director/Console suite, which help configure, manage, and deploy distributed simulations across multiple machines. These tools support scalability and enable both small and large simulation environments.
• **Marketing and Human-in-the-Loop (HIL) Applications: **Facilitates the creation of interactive marketing simulators for exhibitions and trade shows. It also supports human-in-the-loop testing, where operators interact directly with virtual equipment for validation, research, or product testing.
• **Extensibility with Python and CAD Support: **Offers scripting capabilities through Python 3, allowing developers to customize logic and workflows. It also supports CAD model import through dedicated add-ons, enabling accurate use of existing engineering designs in simulations.
• **Professional Services Ecosystem: **CM Labs provides professional services to deliver customized equipment models, tailored simulators, and full training environments. This includes multi-screen setups, specialized hardware, and integrated simulation ecosystems.
• **Proven Industry Adoption: **Widely trusted by leading organizations in automotive, defense, construction, manufacturing, utilities, and academia. High-profile users include NASA, Volvo, John Deere, BAE Systems, and Lockheed Martin, reflecting its credibility and performance in demanding sectors.
