Virtual Cell Site Router (vCSR)

The 6WIND Virtual Cell Site Router (vCSR) is a high-performance, cloud-native gateway router designed for deployment at mobile cell sites. It aggregates and routes traffic from multiple radio cells, providing secure, scalable, and efficient connectivity between the access network and the 5G core. The vCSR can be deployed as a virtual or containerized network function on x86 and ARM COTS servers, helping operators reduce costs, simplify architectures, and optimize resource usage for 5G and legacy services.

Features

• High-performance and scalable full-featured cell site gateway router
• Deployed as VNF or CNF on x86 and ARM COTS servers
• Optimized resource usage for minimal hardware requirements
• Layer 3 connectivity between access and 5G core networks
• IP/MPLS routing and high-performance IPsec VPN security
• Support for IPv4, IPv6, VRF, NAT, multicast (PIM/IGMP)
• Advanced routing: BGP, OSPF, IS-IS, RIP, ECMP, PBR, BFD
• Encapsulations: GRE, VLAN, VXLAN, LAG, Ethernet bridge
• Quality of Service: rate limiting, hierarchical QoS, class-based classification, shaping, policing, scheduling
• Comprehensive management: CLI, NETCONF/YANG, SNMP, telemetry, RBAC, Syslog, sFlow, IPFIX, Netflow
• Carrier-grade security: ACLs, uRPF, control plane protection, IPsec, encryption

Capabilities

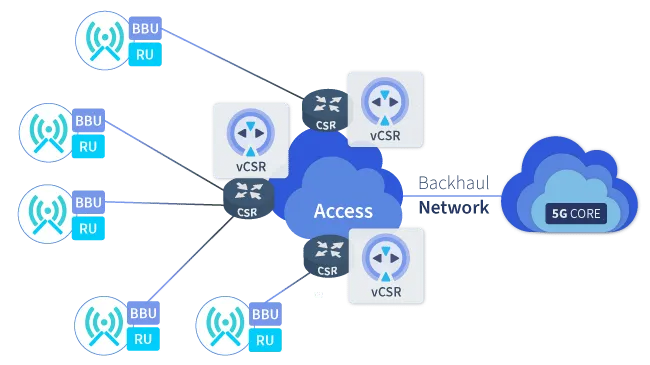

• Aggregates and routes RAN traffic from multiple cells or sites
• Reduces cost of RAN traffic hauling by optimizing transport links
• Delivers end-to-end traffic engineering and quality of experience
• Supports timing and synchronization distribution
• Enables secure, scalable, and virtualized cell site deployments
• Integrates with operator NMS and OSS/BSS for automated management
• Extendible with additional IP/MPLS capabilities for provider edge connectivity

Benefits

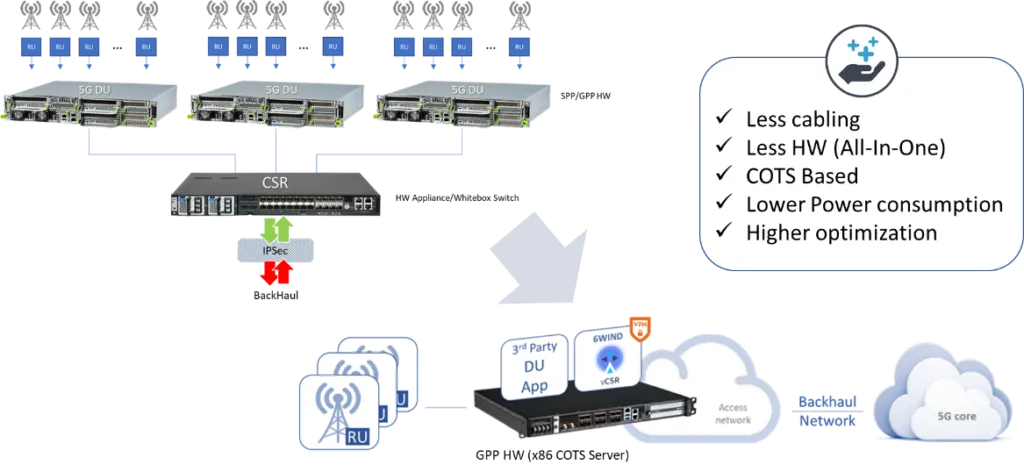

• Simplifies mobile network architecture and reduces operator TCO
• Improves operational economics for 5G and legacy services
• Enables efficient Open RAN and cloud-native deployments
• Delivers best cost-performance ratio for cell site routing
• Enhances security and reliability with high-performance IPsec VPN
• Supports rapid densification and scaling of mobile networks
