Overview

Tecplot RS is a comprehensive visualization and analysis tool designed specifically for oil and gas reservoir engineers. It integrates XY, 2D, and 3D plotting capabilities to help teams organize data results, validate reservoir model predictions, collaborate across teams, and communicate results to management. With a short learning curve, full technical support, and free online training, Tecplot RS enables engineers to quickly get up and running.

Features

• Interactive XY Plotting: Allows users to manually select entities/variables for each frame in multi-frame mode.

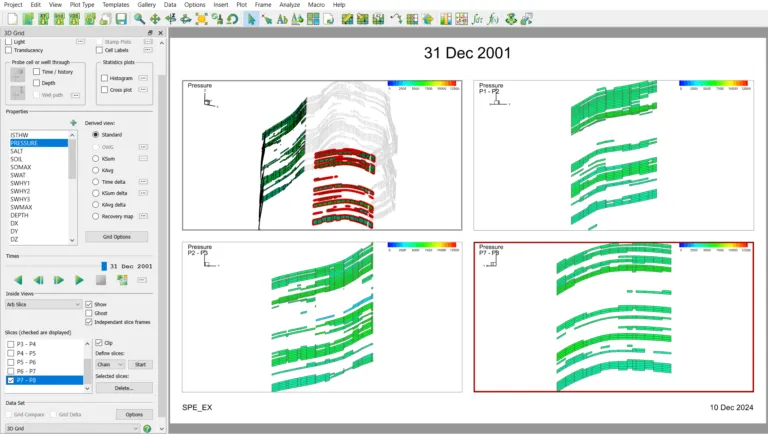

• Independent Arbitrary Slice Frames: Improves visualization of complex arbitrary slices by separating and flattening each component into its own frame.
• RFT Geo Layers: Enables easy labeling and color-coding of geo layers in RFT plots using CSV or TXT file imports.
• Column and Row Sequential Write Data Options: Provides options to export data across columns or down rows.

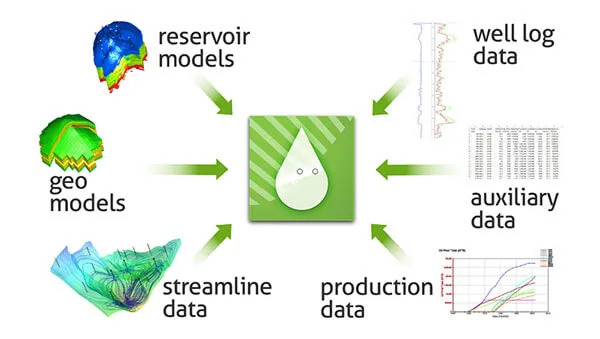

• Compatibility with Various File Formats: Supports ECLIPSE, CHEARS, VIP/Nexus, CMG, VDB, FrontSim, 3DSL, UTCHEM, SENSOR®, GRDECL, INTERSECT RESQML, and more.
• Streamline Processes: Designed to streamline typical reservoir simulation workflows for quick validation and decision-making.

Benefits

• Efficient Data Loading: Quickly access views needed to comprehend data from various sources.
• Enhanced Visualization: High-quality graphics allow viewing reservoir models from multiple perspectives.
• Powerful Analysis Tools: Built-in statistical analysis tools extract detailed reservoir model characteristics.
• Streamlined Workflows: Smart views and tutorials help streamline processes and get answers in just a few clicks.
• Effective Communication: Realistic images and animations help communicate results effectively to management and teams.
• Comprehensive Support: Full technical support, free online training, and detailed documentation ensure users can maximize the tool's capabilities.
