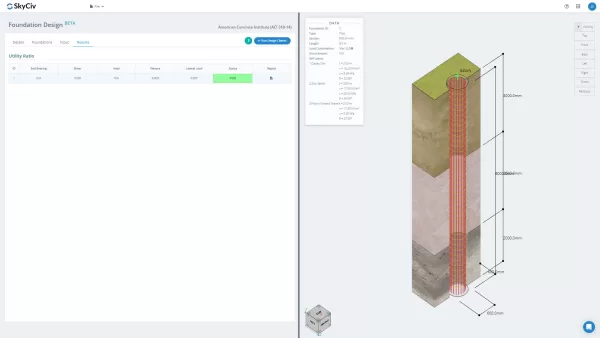

SkyCiv Foundation Design is a cloud-based structural engineering software module that enables fast and accurate design of concrete foundations, including footings, piles, and combined footings. Integrated with SkyCiv Structural 3D, it allows users to import forces directly from 3D model analysis and customize soil layers, column locations, foundation types, and reinforcement for optimal design efficiency. Engineers can communicate results through detailed hand calculations with code references, exportable as PDFs for project deliverables or further investigation. The software supports design standards such as ACI 318, AS 3600, and Eurocode, and is accessible from any browser with no installations required.

Features

• Foundation Types: Supports footings, piles, combined footings, and more.
• Code Compliance: ACI 318, AS 3600, Eurocode.
• Integration with Structural 3D: Import forces directly from 3D model analysis.
• Customizable Inputs: Soil layers, column locations, foundation types, reinforcement.

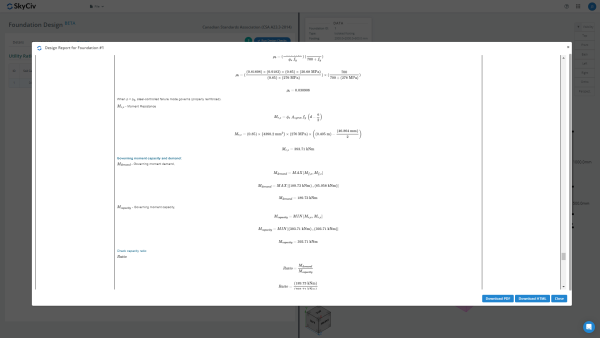

• Detailed Reporting: Step-by-step hand calculations with code references.
• PDF Export: Generate professional deliverables for documentation.
• Cloud-Based Access: No installations—accessible from any browser.
• Modeling Tools: Pen tool, bulk editing, camera roll, and more.
• Collaboration Tools: Real-time file sharing and permission control.
• Unified SkyCiv Access: One account for all SkyCiv software.
• Software Integrations: Revit, Excel, Google Drive, Grasshopper, Slack, Microsoft Teams.
• API Access: Automate workflows like solar frame design.
• Flexible Pricing: No lock-in contracts; tailored plans available.

Benefits

• Efficiency: Design foundations in minutes with integrated modeling and analysis.
• Transparency: Clear calculation reports eliminate black-box concerns.
• Accessibility: Use from anywhere with just a browser.
• Collaboration: Share models and get support in real time.
• Scalability: Suitable for projects of all sizes.
• Support: Responsive technical assistance from SkyCiv engineers.
• Automation: API enables integration into custom workflows.
