SkyCiv Concrete Footing Calculator is a free, cloud-based tool that helps engineers design isolated and combined concrete footings, pads, and piles. It performs essential stability checks such as uplift, overturning, and sliding, and calculates structural utility ratios including one-way and two-way shear, flexure, development length, and detailing. The calculator supports multiple international design codes including ACI 318, AS 3600, CSA, and Eurocode (EN). This simplified version of SkyCiv’s full Foundation Design Software allows users to input geometry, soil, material properties, and loads to generate accurate footing designs and concrete volume estimates. Engineers can upgrade to the full version for expanded functionality, including additional foundation types, unlimited loads, and detailed calculation reports.

Features

• Design Capabilities:
  • Isolated and combined footings
  • Concrete pads and piles
  • Volume estimation in metric and imperial units
• Stability Checks:
  • Uplift, overturning, sliding
  • Soil pressure validation
• Structural Checks:
  • One-way and two-way shear
  • Flexural capacity
  • Development length and detailing

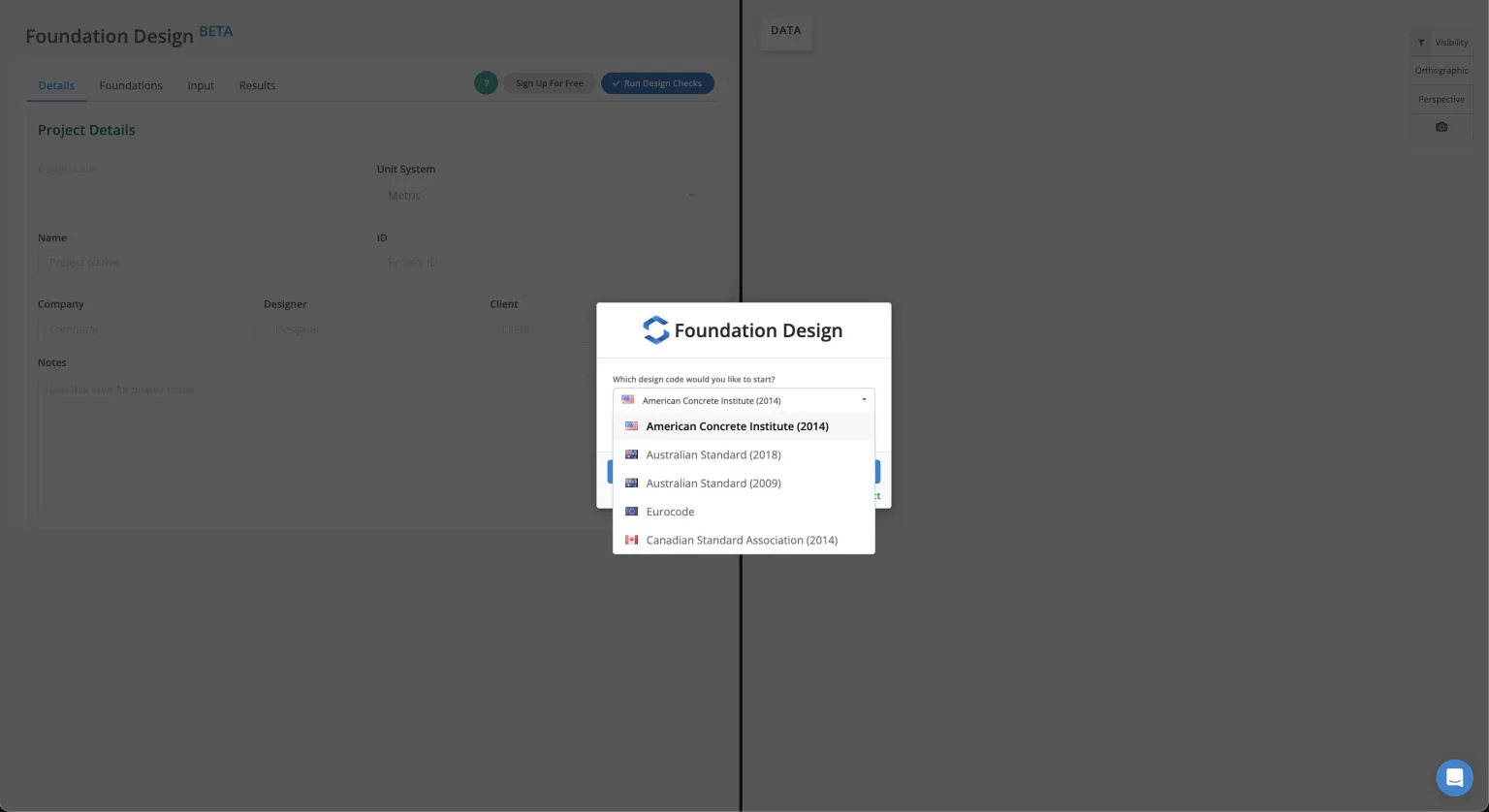

• Design Standards Supported:
  • ACI 318 (USA)
  • AS 3600 (Australia)
  • CSA (Canada)
  • EN (Europe)
• User Inputs:

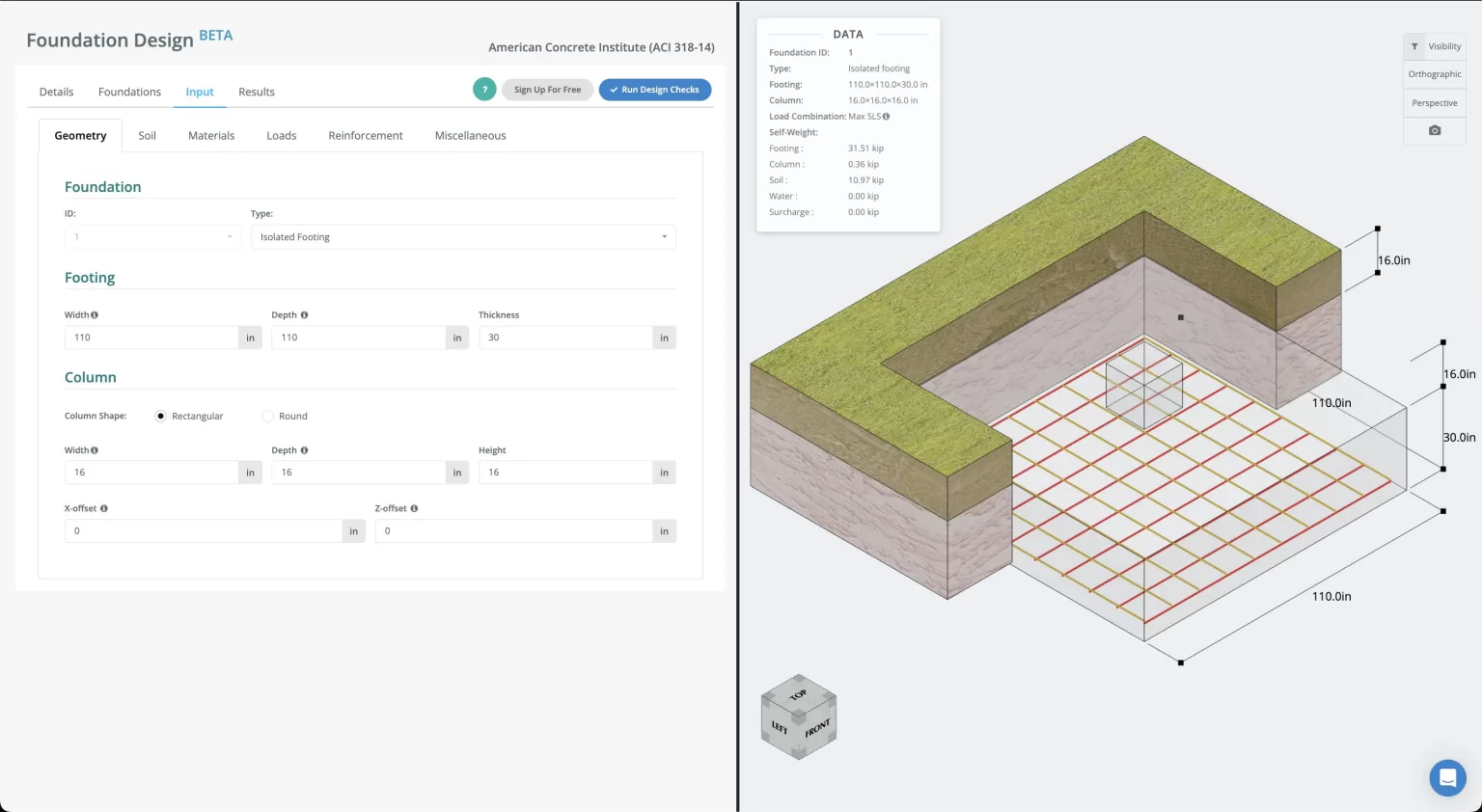

  • Geometry, soil conditions, material properties
  • Dead, live, wind, snow, and custom loads
  • Top and bottom reinforcement details
• Interactive Interface:
  • Auto-updating graphics

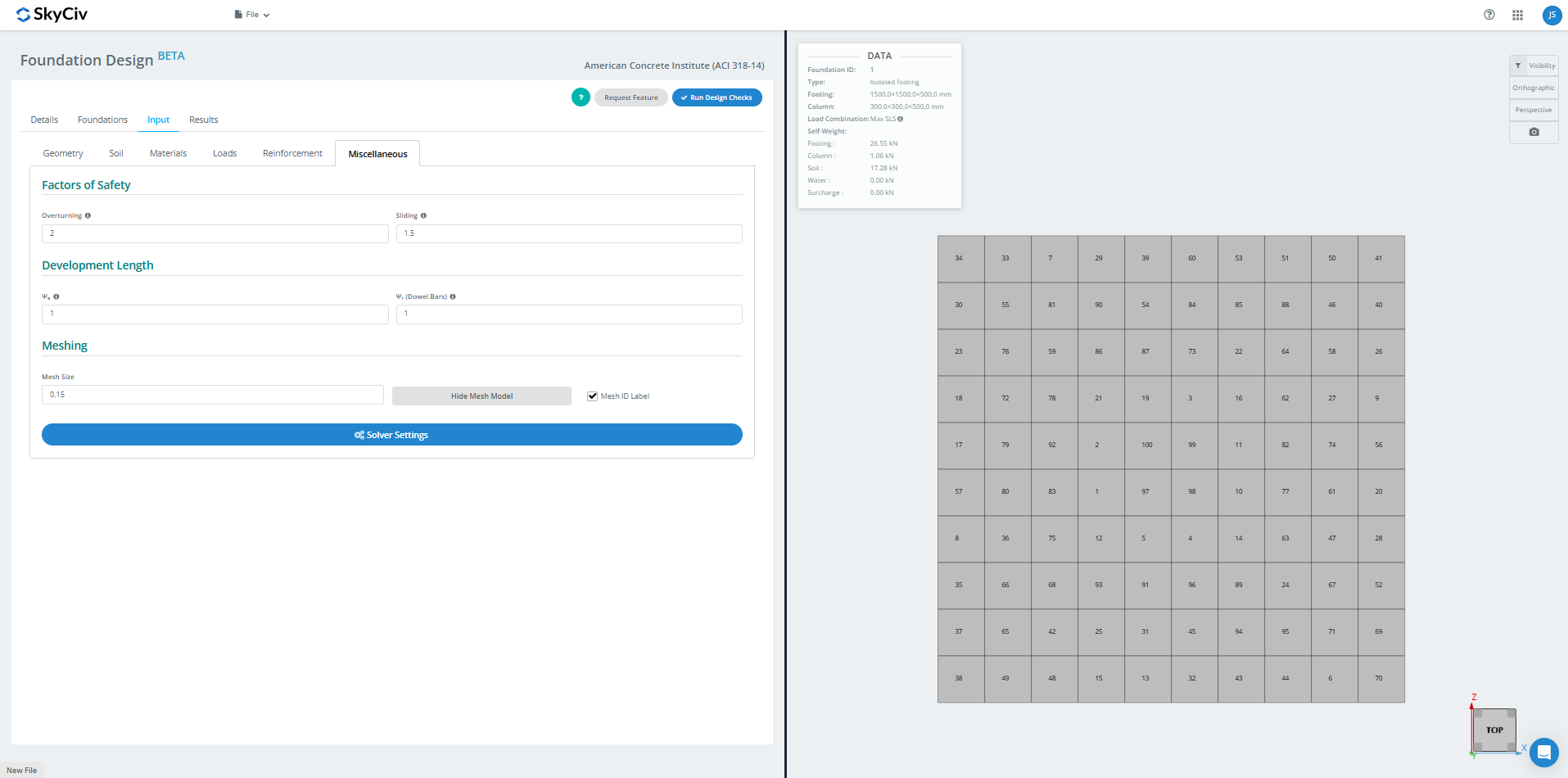

  • Solver settings and design factor customization
• Upgrade Features:
  • Combined and non-symmetric footings
  • Concrete piles with axial, flexure, shear, and lateral checks
  • Full calculation reports with code references

Benefits

• Accessibility: Fully online—no installation required.
• Efficiency: Quick setup and instant results for preliminary design.
• Accuracy: Compliant with major international codes.
• Transparency: Upgrade for detailed step-by-step reports.
• Scalability: Full version supports complex foundation systems.
• Visualization: Interactive graphics for clear design feedback.
• Versatility: Suitable for engineers, contractors, and students.
