SkyCiv Base Plate Design is a fast, user-friendly cloud-based tool for designing steel column-to-base plate connections, including anchorage to concrete supports. Engineers can model, analyze, and generate professional reports in just a few clicks. The software supports multiple international design codes and offers real-time visual feedback for optimizing weld sizes, anchor positioning, and base plate dimensions. Accessible directly from any browser, SkyCiv Base Plate Design integrates seamlessly with SkyCiv Structural 3D and other modules, enabling efficient workflows and collaboration.

Features

• Comprehensive Modeling: Model base plates, concrete supports, anchors, and welds in one platform.
• Section Selection: Choose from I-beams, rectangular/square HSS, and circular HSS.

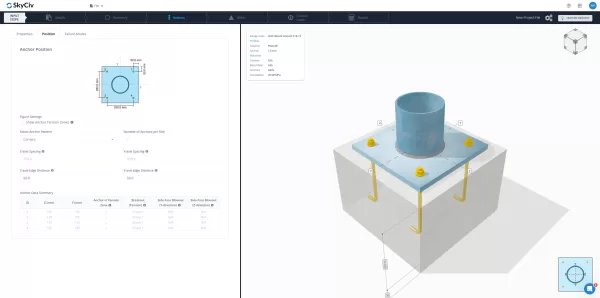

• Real-Time Graphics: Position anchor rods and adjust dimensions with live visual feedback.
• Code Compliance:
  • Column/Base Plate: AISC 360-22, EN 1992-1-8:2005, AS 4100:2020, CSA S16:19, NSCP 2015.
  • Concrete: ACI 318-19, EN 1992-1-1:2004, AS 3600:2018, CSA A23.3:19, NSCP 2015.
  • Anchorage: ACI 318-19, EN 1992-4:2018, AS 5216:2021, CSA A23.3:19, NSCP 2015.
• Full Calculation Reports: Step-by-step hand calculations with code references and scale illustrations.
• Pass/Fail Summary Tables: Clearly indicate governing load combinations.
• Cloud-Based Access: No installations required—accessible from any browser.
• Collaboration Tools: Real-time file sharing and permission control.
• Unified SkyCiv Access: One account for all SkyCiv software.
• Modeling Tools: Pen tool, bulk editing, camera roll, and more.
• Software Integrations: Revit, Excel, Google Drive, Grasshopper, Slack, Microsoft Teams.
• API Access: Automate workflows like solar frame design.
• Flexible Pricing: No lock-in contracts; tailored plans available.

Benefits

• Efficiency: Design and analyze base plate connections in minutes.
• Transparency: Clear reports eliminate black-box concerns.
• Accessibility: Use from anywhere with just a browser.
• Collaboration: Share models and get support in real time.
• Scalability: Suitable for projects of all sizes.
• Support: Responsive technical assistance from SkyCiv engineers.
• Automation: API enables integration into custom workflows.
