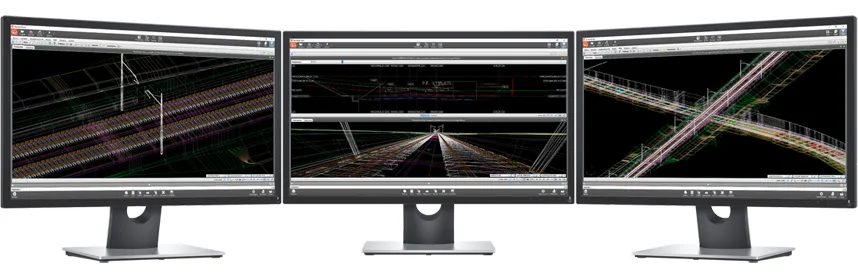

SierraSoft Rails is a Building Information Modeling (BIM) software specifically engineered for the design of railways, accommodating both low and high-speed lines, as well as single and double tracks. Its core BIM functionalities empower users to produce, modify, share, and analyze railway information models. The software facilitates simultaneous design and information modeling, leading to significant optimization of activities and effective cost containment. It provides a complete suite of tools for design, policy control, information modeling, and quantities calculation within a single product. The parametric dynamic design capabilities allow for projects to be created with remarkable ease. Design activities, geometric-informative modeling, and the definition of the interoperable model all occur concurrently within a unified work environment. Users can effortlessly insert axes, define typical sections, set BIM model characteristics, and generate the finished project, drawings, and information models with a single click, thereby substantially enhancing design value. The software supports real-time modification and checks, drastically reducing design time through immediate 3D cross-section visualization on planimetry. Any parameter changes automatically update the entire project, enabling instant verification before final project creation and ensuring maximum control over every detail. All design and information modeling data, including geometries and associated information, are securely stored in the M3 Framework Database. This database serves as the singular authoritative reference for all project information, guaranteeing consistency across project data (plans, profiles, sections), information documents, and information models. SierraSoft Rails leverages this database to automatically generate all necessary information documents and models, with content and level of detail tailored to specific requirements.

Features & Benefits

• Comprehensive Railway Design
  • Provides a complete set of tools for designing railway infrastructure, including horizontal and vertical alignment, typical sections, cross-sections, quantities calculation, and policy compliance checks.
• Parametric Dynamic BIM Design
  • Enables simultaneous geometric-informative modeling and interoperable model definition within a single environment, allowing real-time updates and automatic project regeneration upon parameter changes.
  • Design and information modeling occur simultaneously.
  • Real-time modification and checks with automatic updates.
  • M3 Framework Database ensures data consistency across project elements and information models.
• As-Found & Terrain Modeling
  • Facilitates the creation of digital reproductions of existing territory by acquiring and utilizing land information from various sources.
  • Acquire data from topographic surveys, maps, GIS, point clouds, and BIM models (IFC, LandXML).
  • Efficiently handles large point clouds with fast loading and real-time drawing/extraction.
  • Automatically generates Triangular Slope Models (DTM) and contour lines.
• Advanced 3D and Hydrological Analysis
  • Supports the design and modeling of complex three-dimensional geometries beyond traditional axis-section methods and provides valuable insights into water-related aspects of the territory.
  • Non-linear 3D design for complex surfaces, solids, and terrain features (e.g., sideslopes, embankments).
  • Hydrological analysis to understand water paths, slope vectors, and calculate basin volumes.
• Integrated BIM Information Management
  • Offers robust capabilities for defining, exchanging, analyzing, and verifying BIM models, ensuring compliance with industry standards and facilitating multidisciplinary collaboration.
  • Advanced information modeling with integration of buildingSMART IDS, bSDD, and BCF standards (Requires SierraSoft BIM Modeling extension).
  • Information exchange in open formats like IFC (2x3, 4.1, 4.3) and LandXML for interoperability (Requires SierraSoft BIM Exchange extension).
  • Information analysis and verification to identify design and modeling errors, including interference detection (Requires SierraSoft BIM Checking extension).
  • Automatically generates customizable information documents and reports (e.g., geometry annotation, profiles, sections, quantities).
• Construction & As-Built Support
  • Provides tools to generate necessary data and models for the construction phase and to create accurate representations of the built environment.
  • Exports information for topographic positioning and "machine control" systems.
  • Creates detailed As-Built information models by integrating project data with construction-acquired information.
