BIM structural analysis software for engineers

Available only as part of the Architecture, Engineering & Construction Collection

Create resilient, constructible designs connected to BIM

Robot Structural Analysis Professional is structural load analysis software that verifies code compliance and uses BIM-integrated workflows to exchange data with Revit. It can help you to create more resilient, constructible designs that are accurate, coordinated, and connected to BIM.

Get it in the Architecture, Engineering & Construction Collection

Robot Structural Analysis Professional is available only in the Architecture, Engineering & Construction Collection, an essential set of integrated Building Information Modeling (BIM) tools. The collection includes:

• Revit
• AutoCAD
• Advance Steel
• And more

Robot Structural Analysis Professional features

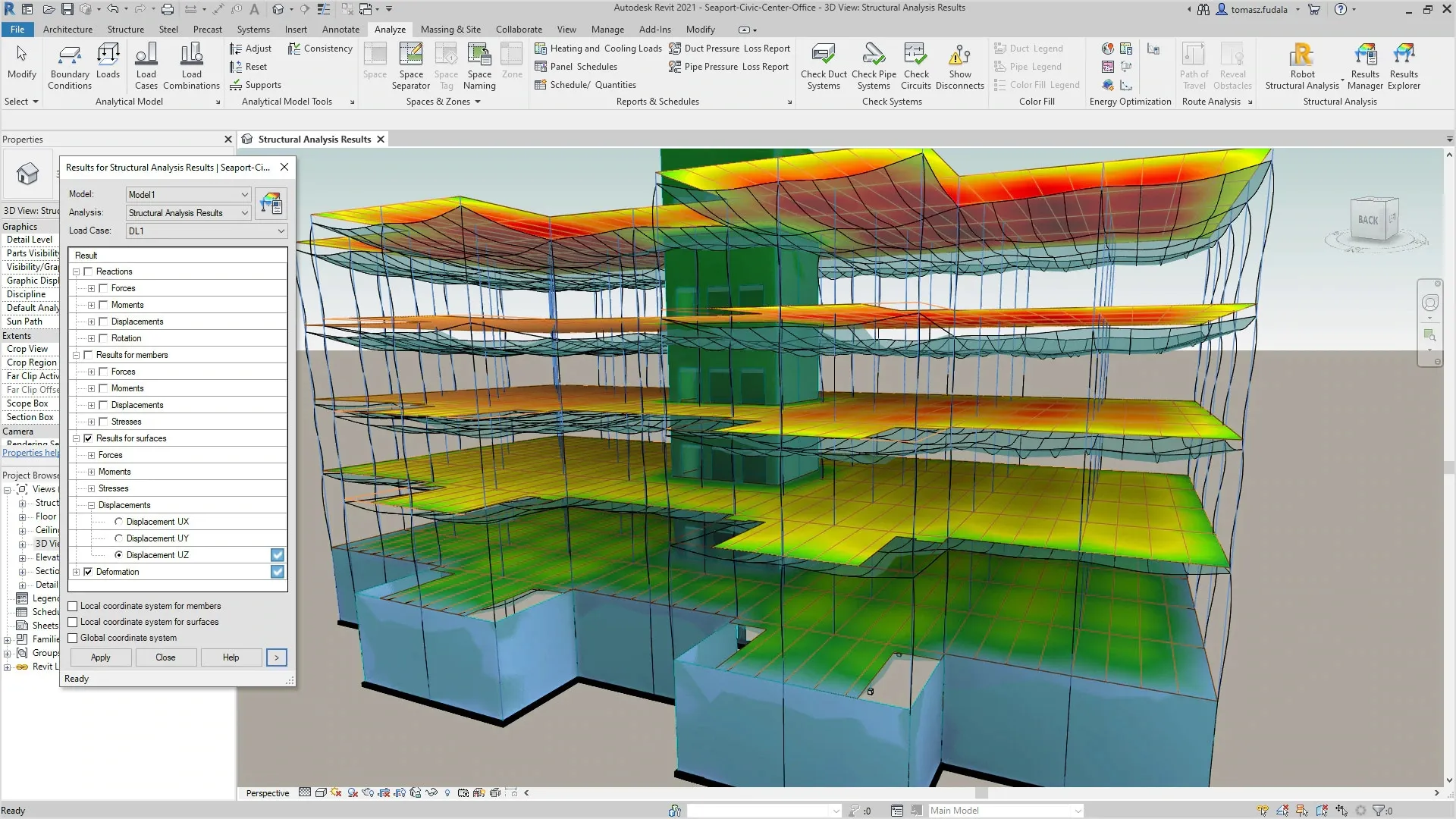

BIM-integrated workflows

Exchange data with Revit and other design tools.

Wind load simulation

Test wind loads during design to avoid costly changes.

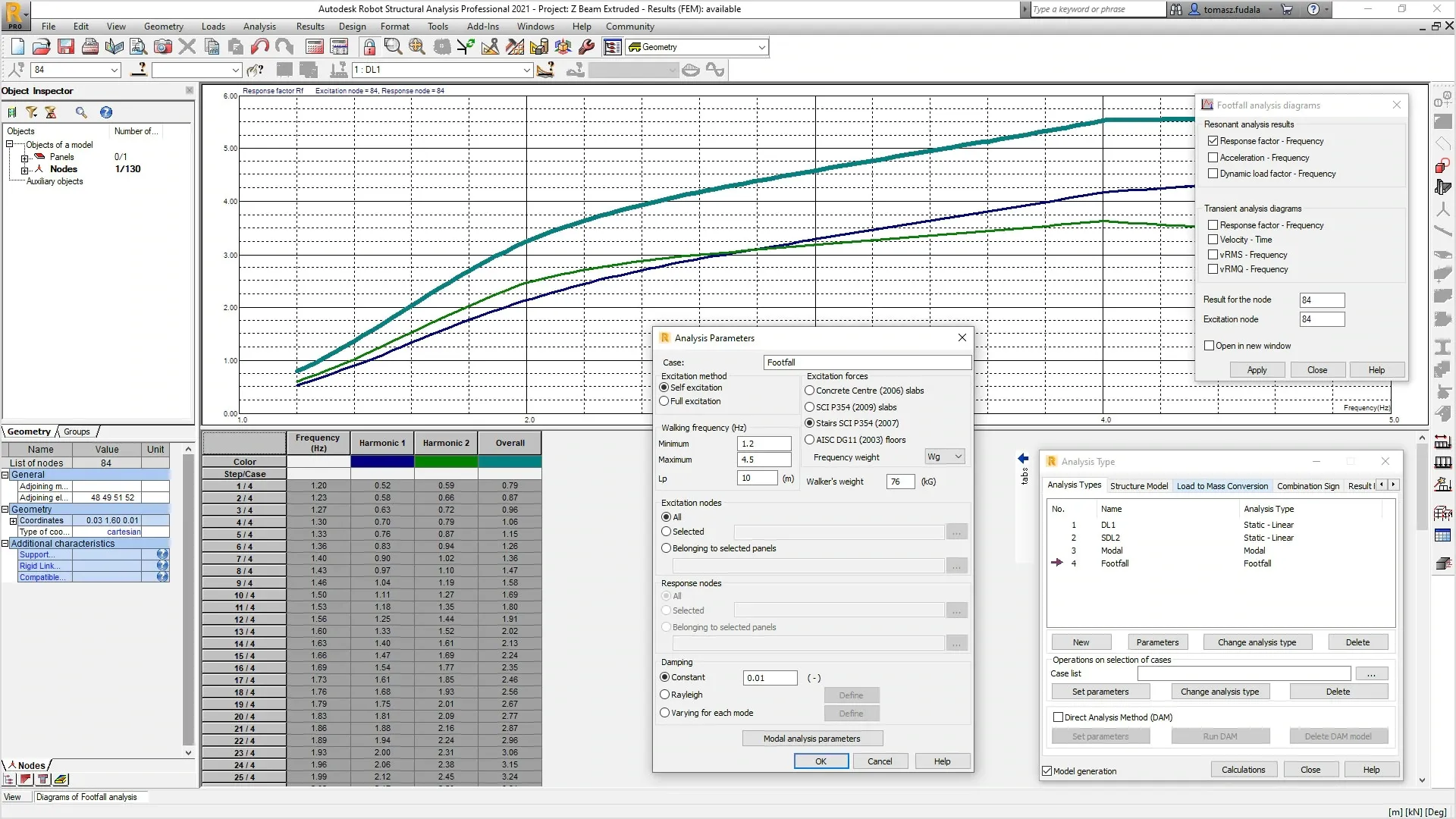

Extensive analysis capabilities

Test the behavior of static, modal, and nonlinear structures.

Finite element auto-meshing

Create a high-quality, advanced finite element mesh for more precise analysis results.

ENHANCED | Country-specific design standards

Work with country-specific section shapes and building codes in imperial or metric to support code-checking.

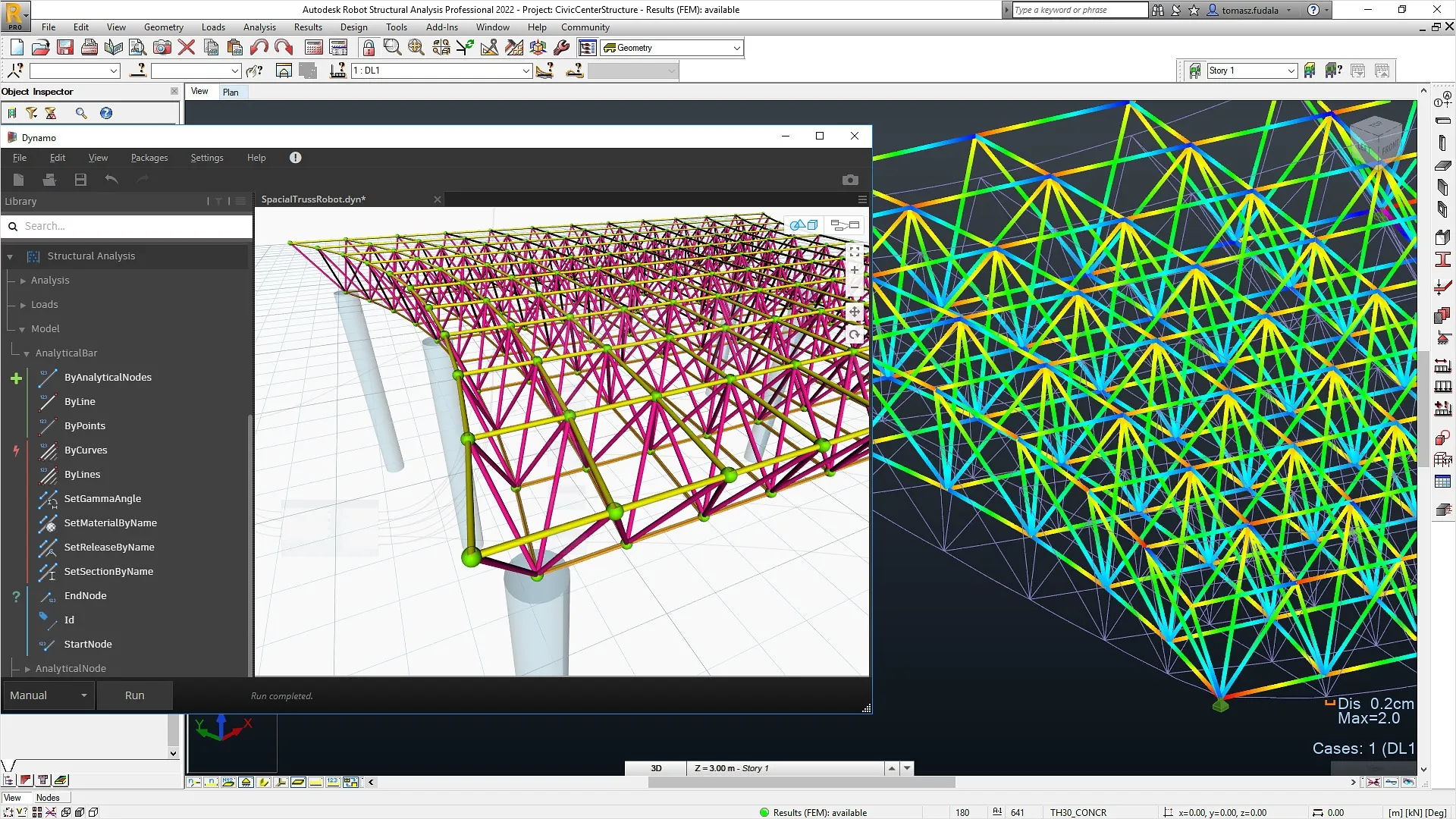

Open and flexible API

Create custom parametric structures, directly extract results, and extend analysis and code-checking capabilities.
