Overview

RADAN Radtube is an industry-leading Laser CAD/CAM system designed specifically for rotary and multi-axis cutting machines, focusing on tube cutting and manipulation. Its intuitive programming allows users to define tubes or sections parametrically from a library of standard shapes, into which cutting apertures and profiles can be incorporated. This approach minimizes programming time while creating more efficient cut paths. Comprehensive simulation and proofing tools streamline daily production, reduce costly errors, and eliminate the need for dry runs.

Features and Capabilities

• Intuitive Graphical User Interface: Offers a user-friendly interface that simplifies the programming process.
• Extensive Range of CAD Interfaces: Supports a wide variety of CAD formats, ensuring seamless integration with existing design workflows.
• Comprehensive Machine and Postprocessor Database: Includes an extensive database compatible with various machines and postprocessors, enhancing versatility.
• Built-in Library of Standard Tube and Aperture Types: Provides a ready-to-use collection of standard tube shapes and apertures, facilitating quick setup.
• Nesting Over Single or Multiple Pipes or Sections: Enables efficient nesting across one or multiple pipes or sections, optimizing material usage.
• Manual and One-Click Toolpath Application: Allows for both manual application of toolpaths to selected areas and automated one-click toolpath application, offering flexibility in operation.
• Total Control of Nozzle Angle: Provides interactive and explicit control over the nozzle angle, ensuring precision in cutting.
• Technology Data Application: Enables the creation and application of technology data at any point in the process, enhancing adaptability.
• Collision Detection: Features inter- and intra-cut collision detection to prevent errors during operation.

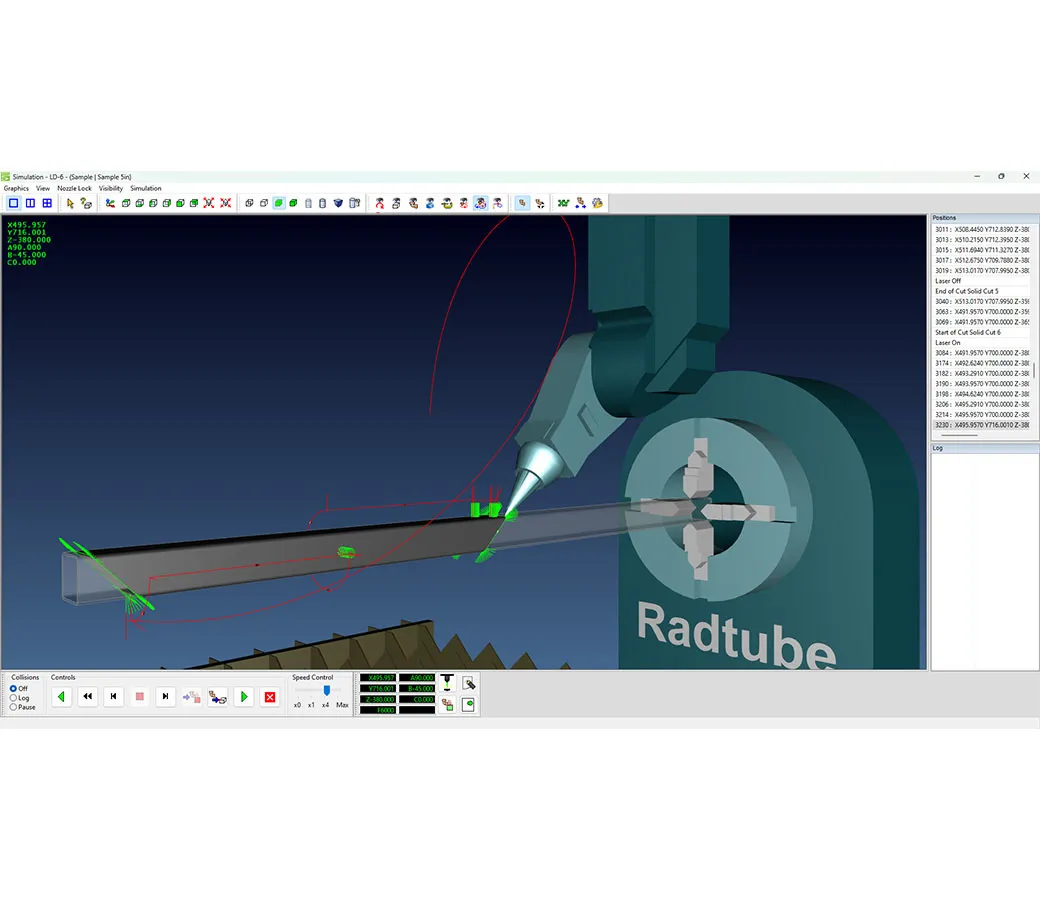

• Full Solid 3D Simulation: Offers comprehensive 3D simulation capabilities for thorough proofing and validation of cutting processes.
