Advanced Power Quality Monitoring at Your Fingertips

Intelligent, Web-Enabled Power Quality Analysis Software

PQView DE is web browser based, advanced, intelligent software that is both the user interface and system controller for your entire Dranetz power monitoring system. PQView DE automatically communicates with each instrument in the monitoring system, downloads and stores the data and presents information in an easy to use web browser based interface. PQView DE can be used in any application, from small systems with a few monitoring points to very large multi-point, facility or utility wide monitoring systems. Additionally, PQ ViewDE is the ideal software solution for both existing users of Encore Series Software, and new Dranetz Fixed Monitoring Systems!

Now is the Perfect Time to Upgrade to PQView DE

Oracle, Java’s manufacturer, has announced that it has ended development of the Java Plug-In for Web browsers. In addition, the latest generation web browsers no longer support the plug-in architecture that is required to use the Java Plug-In. Therefore, automated software updates, and free system support for our legacy, Encore Series Software (ESS), will be discontinued as PQView DE replaces ESS.

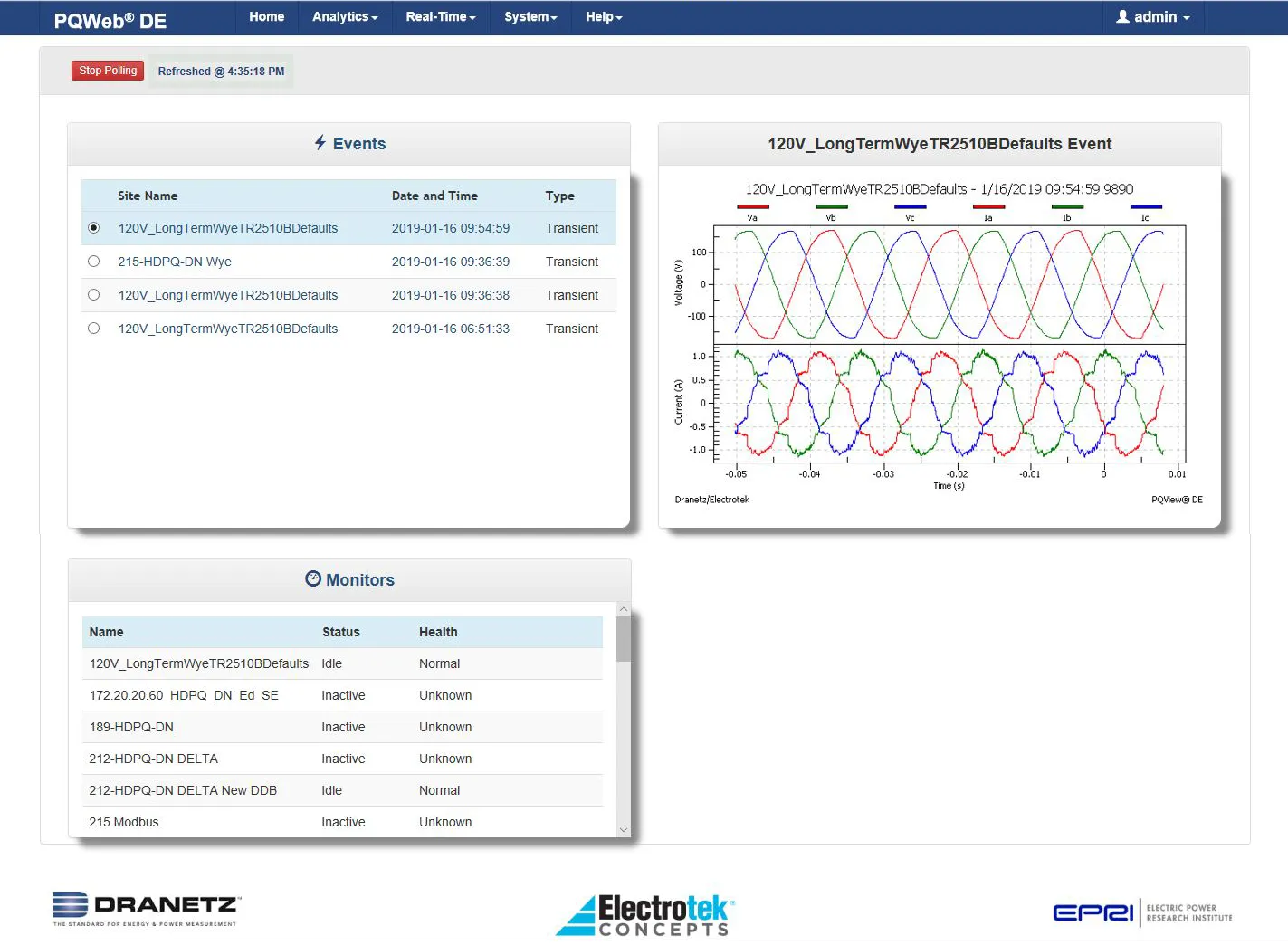

Powerful Web Browser User Interface

PQView DE has an easy to use, password-protected web browser interface that allows for multi-user access to your monitoring system from any computing device for any authorized user with access to the communications network. Trends, data lists, real-time views, reports and setups are just a few clicks away. Plus, information can be easily shared and exported to Word, Excel, PQView and other software packages. PQView DE can also notify you via text or email of PQ or other events that have occurred.

• Versatile – PQView DE is supported across a wide range of platforms and device configurations, such as a PC, MAC, Android/Apple tablet or smartphone
• Accessible – PQView DE can be used with nearly any web browser of your choice, including: Internet Explorer, Edge, Safari, Chrome or Firefox.
• Responsive – The dynamic web design of PQView DE means that information is automatically sized to the screen size of device being used to browse the monitoring system.
• Customizable– PQView DE can be programmed to send users alert messages, via SMS (text message) or email, based on a variety of power quality events.

Incredibly Intelligent Power Quality Analysis

The combined knowledge of Dranetz and its sister company, Electrotek Concepts, gives our monitoring systems the intelligence to perform advanced characterization of PQ events. You receive a clear and simple explanation of an event with in-depth analysis. Unique AnswerModules® perform advanced analysis and provide answers to more difficult power quality events through an intuitive user interface. Answer Modules interpret data, making every user an expert. Answer Modules are available for every industry and include: Sag Directivity, PF Correction Capacitor detection/directivity.

System Software For All Applications, Large & Small – Today & Tomorrow

System software for communications, visualization and reporting is a key component of any fixed monitoring system. PQView DE, the standard offering from Dranetz is for use with all Dranetz systems products, including the HDPQ DataNode, 61000 series, Signature System, ES2xx meters, and others. PQView DE is a derivative of our PQView software. As your needs grow, PQView DE users have a seamless upgrade path to the more powerful PQView® software which is intended for larger applications, applications that include other manufacturers products, or those that require enterprise software. PQView enables users to organize data from a variety of instruments, such as power quality monitors, microprocessor relays, and digital fault recorders. It also stores site characteristics (e.g., substation, bus, feeder, latitude, longitude, etc.) and event information for voltage sags, transients, and faults (e.g., root cause code or text description). PQView brings all this information together in one relational database and provides the means to automate both the loading of new data and the generation of monitoring reports.

Features

Web Enabled Interface

PQView DE has an easy to use, password-protected web browser interface. All interactions with the system can be completed using any web browser, such as Microsoft Edge or Mozilla Firefox. Not only is it easy to use, the web browser environment allows for multi-user access to your monitoring system from any computing device for any authorized user with access to the communications network. Trends, data lists, real-time views and reports are just a few mouse clicks away. Information can be easily shared and exported to Word, Excel, PQView and other software packages.

Performance Evaluations

By combining multiple modules or instruments, Dranetz intelligently monitors and evaluates diverse equipment and power system performance parameters to evaluate the performance and health of your power system for applications such as:

• UPS — Encore monitors both input and output to continually evaluate the health of a UPS to ensure it operates correctly and to manufacturer specifications.
• System Reliability — Gain a clear indication of power system reliability by simultaneously evaluating power quality of multiple circuits on an ongoing basis.
• Predictive Maintenance — Continuous, proactive monitoring allows for benchmarking, which provides a statistical evaluation, enabling you to reduce operating and maintenance costs, including determining when maintenance is really needed, rather than just on a routine schedule basis.

Intelligence

The combined knowledge of Dranetz and its sister company, Electrotek Concepts, gives our monitoring systems the intelligence to perform advanced characterization of events. You receive a clear and simple explanation of an event with in-depth analysis. Unique AnswerModules® perform advanced analysis and provide answers to more difficult power quality events through an intuitive user interface. Answer Modules interpret data, making every user an expert. Answer Modules are available for every industry and include: Sag Directivity, PF Correction Capacitor detection/directivity.
