Phased Array System Toolbox

You can model and analyze the behavior of active and passive arrays, including subarrays and arbitrary geometries. You can also generate C code from the functions in the toolbox. For 5G and LTE cellular, SATCOM, and WLAN communications systems, you can design multibeam and electronically steerable antennas. The toolbox includes algorithms for simulating hybrid and full digital beamforming architectures for massive MIMO and millimeter wave systems. You can simulate multipath fading environments to test the performance of beamforming antenna arrays.

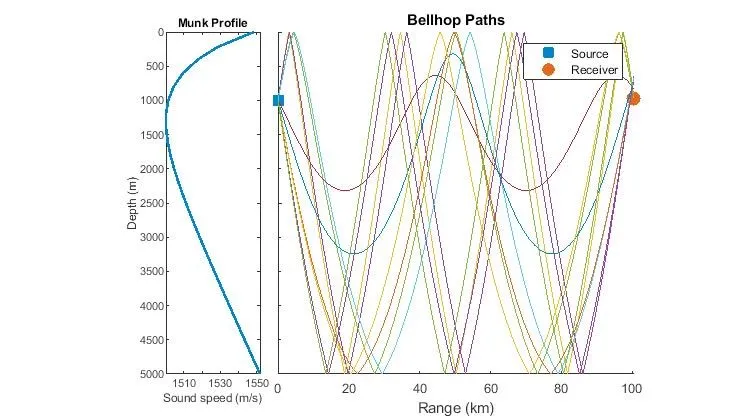

For radar, sonar, and acoustic system design, the toolbox includes algorithms for beamforming, space-time adaptive processing (STAP), direction of arrival (DOA) estimation, matched filtering, and image formation. The toolbox also provides continuous and pulsed waveforms that you can use to generate simulation test signals and simulate target echoes and interferences.
