MIDAS FEA NX is a specialized Finite Element Method (FEM) software designed to elevate design excellence through advanced simulation, primarily for civil engineering applications. It provides a user-friendly modeling environment and a robust database for detailed linear and non-linear analysis. The software offers a CAD-like modeling interface, ensuring seamless compatibility with various 3D CAD file formats, which allows direct import of models without additional work. Its excellent automatic mesh generation capabilities, employing diverse techniques and hybrids, enable the creation of high-quality finite element models. FEA NX supports a wide range of specialized analyses, including complex nonlinear analysis, by leveraging innovative modeling techniques and practical analysis functions for real-world scenarios. The platform integrates seamlessly within the MIDAS COLLECTION for a comprehensive review of civil engineering designs and supports essential file formats for interoperability with other structural analysis programs. It utilizes high-performance solvers and parallel computing techniques for swift and efficient analysis. Significant improvements have been made in pre- and post-processing performance, with parallel processing for mesh generation and database structure enhancements reducing mesh generation time by over 90%, dramatically shortening overall structural simulation times.

Features & Benefits

• Diverse Program Integration
  • Connects not only among MIDAS software in MIDAS COLLECTION but also with various 3D CAD file formats.

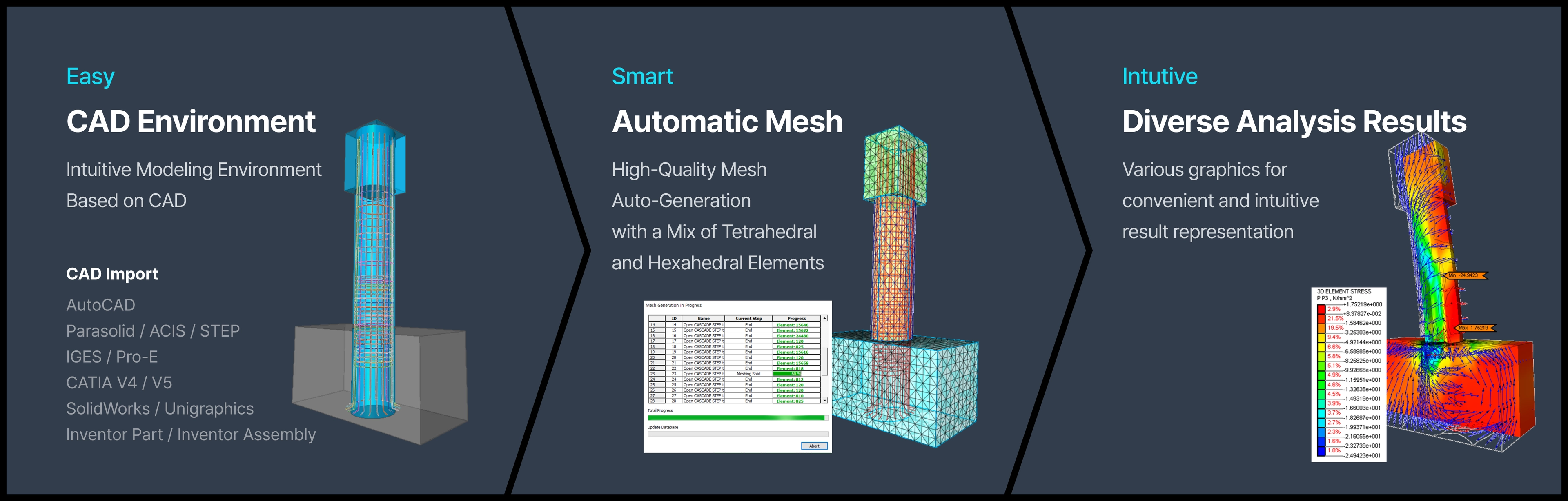

• Excellent Mesh Generation
  • Employs various techniques and hybrids to generate exceptional quality finite element models for geometric shapes.

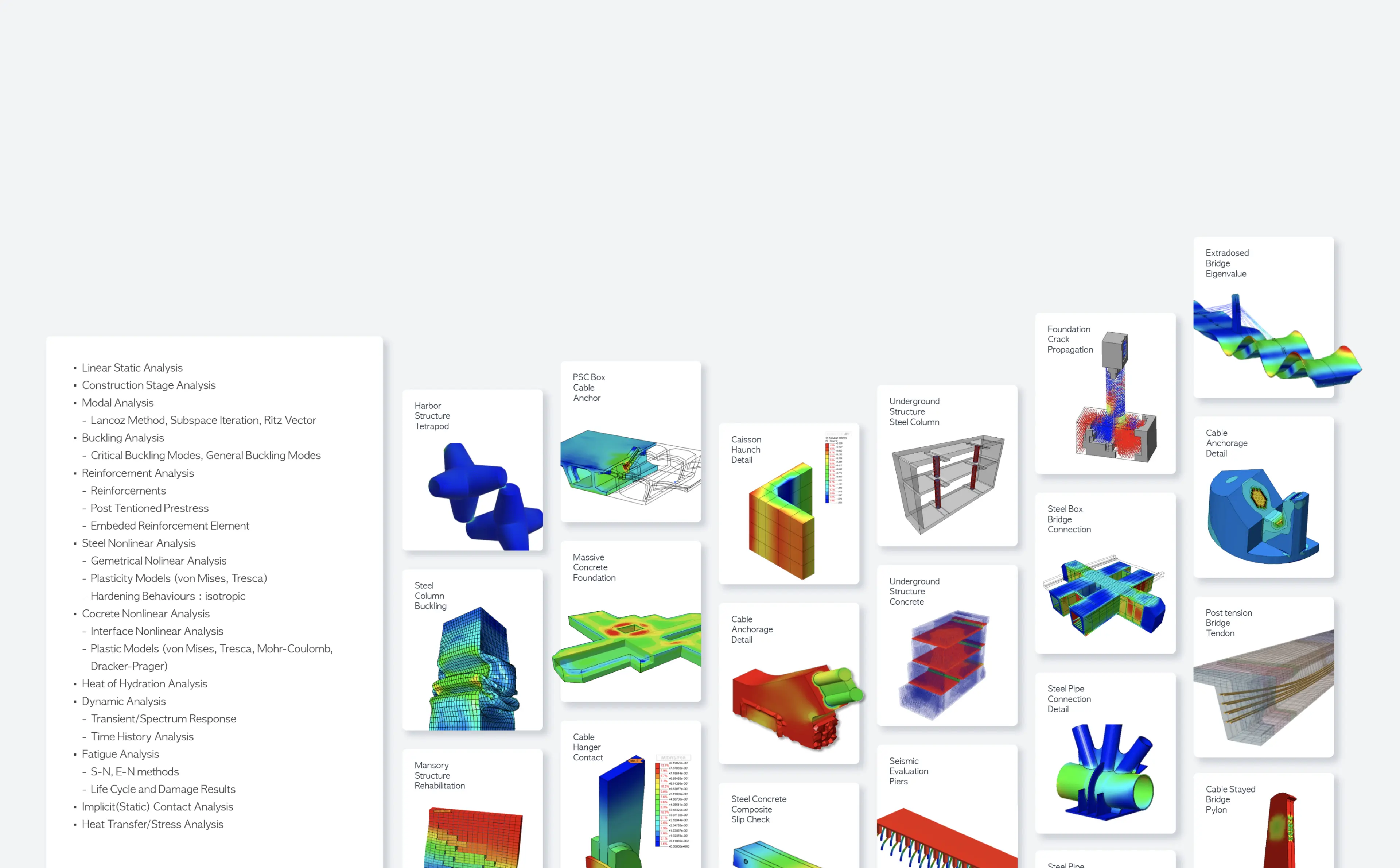

• Advanced & Diverse Analyses
  • Offers a diverse simulation environment with high-performance solvers and parallel computing for swift analysis. Supports a range of specialized analyses, including nonlinear analysis, using innovative modeling techniques and practical functions.
• Enhanced Performance & User Interface
  • Applies the latest graphic engine and overhauls the user interface, significantly improving pre- and post-processing performance. Parallel processing of mesh generation and database structure enhancement reduces mesh generation time by over 90%, dramatically shortening structural simulation times.
• Strengthened CAD Interoperability
  • Supports various model file formats for direct import of 3D model shapes from CAD software without additional modeling.
  • Import Formats: AutoCAD, Parasolid, ACIS, STEP, IGES, Pro-E, CATIA V4 / V5, SolidWorks / Unigraphics, Inventor Part / Inventor Assembly, etc.
  • Export Formats: Parasolid, STL, etc.
