Overview

Metrolog X4 is a comprehensive 3D inspection software developed by the Metrologic Group, now part of Hexagon AB. It serves as a universal solution for various measuring applications across industries such as automotive, aerospace, and general precision manufacturing. The software is compatible with a wide range of measurement devices, including coordinate measuring machines (CMMs), portable arms, laser trackers, and optical systems, supporting over 120 device interfaces. Metrolog X4's 64-bit architecture ensures high performance, enabling efficient processing of large CAD files and dense point clouds. Its user-friendly, customizable interface is available in 19 languages, facilitating ease of use for operators worldwide.

Features and Capabilities

• Device Compatibility and Connectivity:
  • Supports over 120 device interfaces, including portable devices, arms, laser trackers, and P.O.D. systems.
  • Allows multi-connection and on-the-fly switching between measuring devices.
  • Offers 5-axis CMM programming capabilities.
• High Performance with Large Data Sets:
  • 64-bit architecture utilizes all available memory for optimal performance.
  • Efficiently imports and processes large CAD files and high-volume point clouds without decimation.
• Enhanced User Interface:
  • Fully customizable graphical interface tailored to operator needs, machine types, and measurement tasks.
  • Features a new manual probing wizard and automatic view orientation during data acquisition.
  • Provides multiple information windows displaying position and results.
  • Available in 19 languages, switchable on the fly.
• Advanced Analysis and Reporting:
  • Includes a robust Geometric Dimensioning and Tolerancing (GD&T) engine for handling complex cases efficiently.
  • Facilitates geometric tolerance definition with an "expert" system ensuring correct evaluation methodology and results.
  • Supports ANSI and ISO standards, with certification from PTB and NIST organizations.
  • Features a powerful report editor for complete and easy customization, allowing creation of tailored report templates and export in various formats such as XLS, CSV, and PDF.
• Point Cloud Analysis:
  • Designed to process and analyze large and dense point clouds.

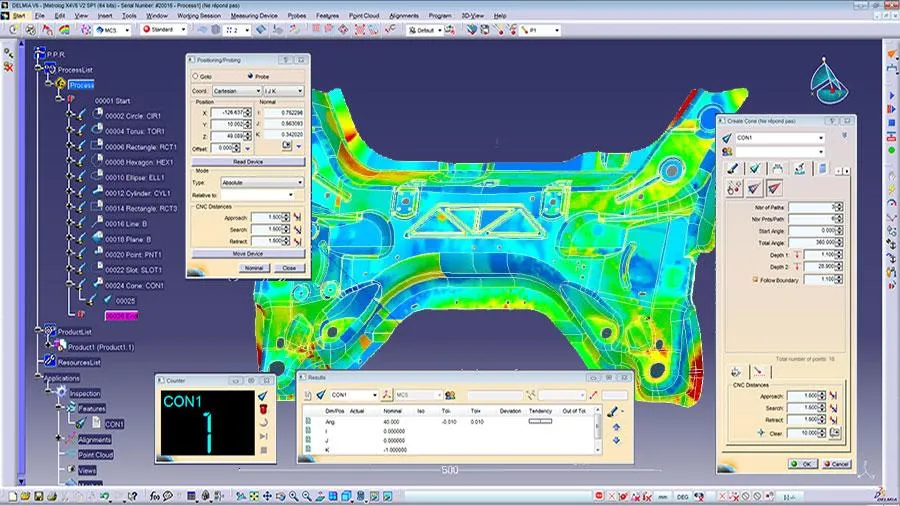

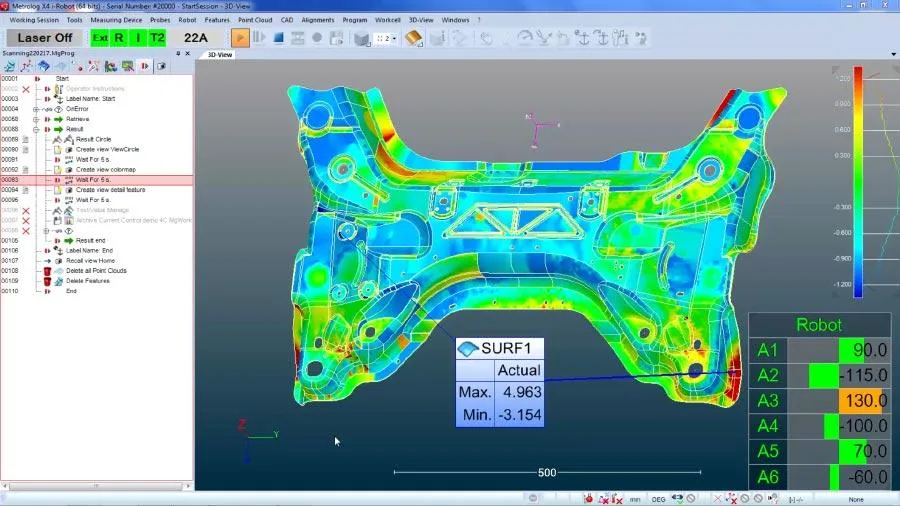

  • Integrates the latest technology for efficient optical measurement functions, including cloud comparison with CAD (color mapping), element extraction, automated GD&T, and intuitive treatment of flush and gap.
  • Allows measurement with compensation for material thickness and part quality estimation based on surface area calculations.
• Large Scale Metrology:
  • Compatible with all large measuring devices, including laser trackers and mobile optical systems.
  • Supports all existing brands and models.
  • Multi-connection mode enables control of multiple devices to simultaneously measure with reference to all measurement results (bundle).
  • Accounts for instrument uncertainties and scale factors, such as temperature variations, and manages raw data tracking.
• Efficient Part Programming:
  • Facilitates easy creation of complete part programs with online or offline teach-in options.
• Supports full integration of planned files and provides operator-oriented instructions for robust shop floor execution.
