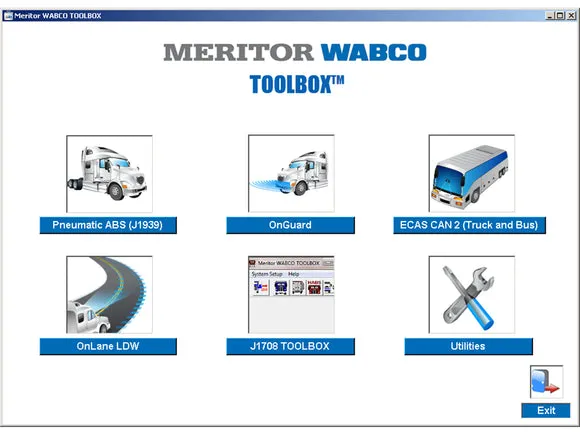

Meritor WABCO ABS Diagnostic Software Toolbox v13 is a Windows-based diagnostic and programming tool designed for professional service and repair of Meritor WABCO tractor and trailer pneumatic ABS, trailer RSS Plus™, and hydraulic ABS systems. The software provides comprehensive diagnostic capabilities, displaying both static (e.g., ECU number) and dynamic (e.g., RPMs) system information, as well as active and stored system faults. It enables technicians to activate system components to verify integrity and correct installation, perform system calibrations, and access repair documents and maintenance manuals. Toolbox v13 supports automatic identification of WABCO systems on the vehicle, reverse DTC lookup, and aftermarket programming for most pneumatic and hydraulic ABS ECUs. The software also includes a J1939 Bus Monitor, supports a wide range of WABCO products (including SmartTrac® Stability Control, OnGuard® Collision Mitigation, and TailGUARD™ Reversing Collision Avoidance), and provides pre-populated warranty forms for streamlined support. It is intended for use in professional repair shops, fleet maintenance operations, and dealerships, and is compatible with standard RP1210A communication adapters.

Key Features

Comprehensive Diagnostics Displays detailed system information and fault codes for ABS and related systems.

• Shows static (e.g., ECU number) and dynamic (e.g., RPMs) data
• Displays both active and stored system faults

Component Activation and Testing Allows direct activation of system components for verification and troubleshooting.

• Verifies system integrity and correct installation
• Supports brake bleed procedures for hydraulic ABS

Automatic System Identification Detects and identifies WABCO systems on the vehicle automatically.

• Reduces setup time and user error
• Populates eligible systems for diagnostics

Aftermarket Programming and Calibration Enables programming and calibration of ABS ECUs and related modules.

• Supports pneumatic and hydraulic ABS ECUs
• Includes tire size calibration and RSS setup

Access to Technical Documentation Provides repair documents, maintenance manuals, and installation instructions.

• Embedded links to web-based diagnostic information
• Pre-populated warranty forms for support

J1939 Bus Monitoring Monitors vehicle network communication for advanced troubleshooting.

• Supports 500k Baud J1939 Bus

Benefits

Reduces Downtime Expedites diagnosis and repair of ABS and related systems.

• Immediate access to system data and fault codes
• Streamlines troubleshooting and repair workflow

Improves Diagnostic Accuracy Links technical documentation and DTCs for precise repairs.

• Reduces guesswork and repeat repairs
• Supports first-time fix rates

Supports Wide Product Range Covers a broad spectrum of Meritor WABCO and ZF commercial vehicle systems.

• Suitable for mixed fleets and multi-brand repair shops
• Regularly updated for new product releases
