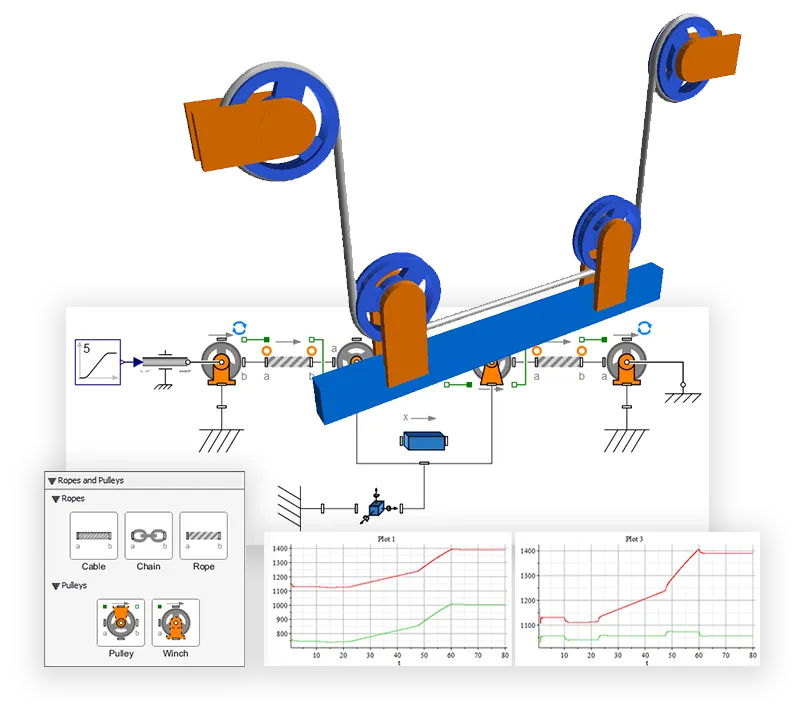

The MapleSim Ropes and Pulleys Library is an add-on for the MapleSim modeling environment. It allows engineers and designers to create, simulate, and analyze the dynamics of systems involving ropes, cables, chains, and pulleys. This tool is used to add realistic fidelity to machine models, enabling the study of mechanical behaviors such as axial rigidity, bending, pulley slippage, and wind forces. The library is especially useful for developing and validating winch and pulley mechanisms in virtual prototypes before physical prototyping, reducing design errors and costs.

Key Features

Dynamic System Modeling Simulate the behavior of rope, cable, and pulley systems within MapleSim.

• Model complex winch and pulley arrangements
• Include ropes, chains, cables, and pulleys in machine simulations

3D Visualization View enhanced 3D representations of system performance.

• Visualize mechanical interactions and motion
• Analyze the effects of design changes in real time

Fidelity and Realism Capture detailed mechanical effects for accurate simulation.

• Model axial and bending rigidity, slippage, and wind forces
• Simulate both 2D and 3D systems

Integration with Digital Twins Supports the creation of digital twins for virtual testing and validation.

• Connect simulations with real-world operational data
• Identify and solve performance issues before physical prototyping

Benefits

Reduced Prototyping Costs Identify and resolve design issues virtually before building hardware.

• Minimize need for physical prototypes
• Lower risk of costly late-stage design changes

Improved Design Accuracy Gain deeper insights into mechanical system behavior.

• Detect cross-system interactions early
• Refine control strategies and component choices

Faster Development Cycles Accelerate machine design and validation.

• Test multiple configurations quickly
• Implement changes without hardware delays
