LogPlot is THE standard in log plotting software

LogPlot is an easy-to-use log plotting program with a flexible log layout and intuitive data editor. LogPlot software has been used by geoscientists since 1983 to display their geotechnical, environmental, geophysical, mud/gas, and mining data as a graphic boring log. We can help with migrating your data from gINT©  software. Plot single-page logs for shallow borings or multi-page/continuous logs for deep wells. Share logs with clients via PDF or post HTML log pages on your website. Export single pages or continuous logs to JPG, BMP, TIFF, and PNG images.

Features

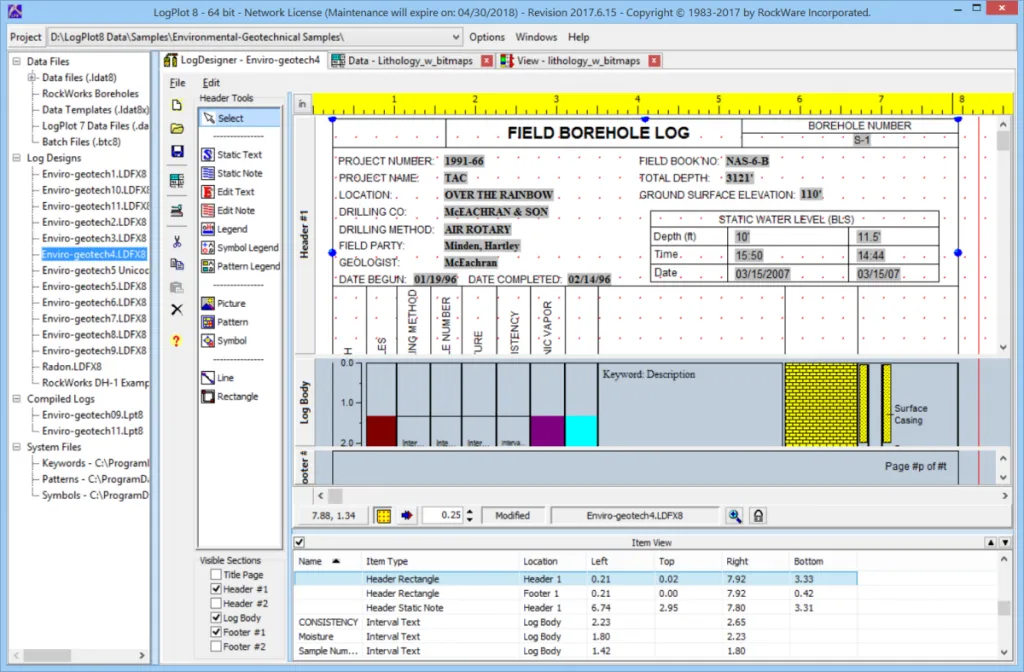

Point-and-Click Log Designer

The new and improved Log Designer offers great flexibility in borehole log designs – use a pre-configured design as-is (40+ shipped with the program) or create your own. The LogPlot Designer is easy to use, with point, click, multiple-select and alignment capabilities. Create detailed headers, footers, and log bodies in their separate design areas. Toolbar buttons offer quick access to the 10 header/footer tools and 18 log body tools.

Easy-to-use LogPlot Data Editor

Tabbed spreadsheet windows make entering data a snap. Point-and-click selection of rock or soil types. Type, paste, or import data from outside data sources. The LogPlot Data Editor includes tools for automatic depth intervals, arithmetic operations, data smoothing and filtering, and import from LAS, Excel, RockWorks boreholes, text, and DBF. Users have access to USGS and USCS lithology patterns and keywords, international users have access to foreign language keyword sets. Export data to ASCII, Excel, LAS, and RockWorks.

Easy Borehole Log Compiling

With your log design and data file open, just set your plotting scale in English or metric units, click OK, and see your borehole log displayed on the screen in the LogView window. Compile multiple logs at one time!

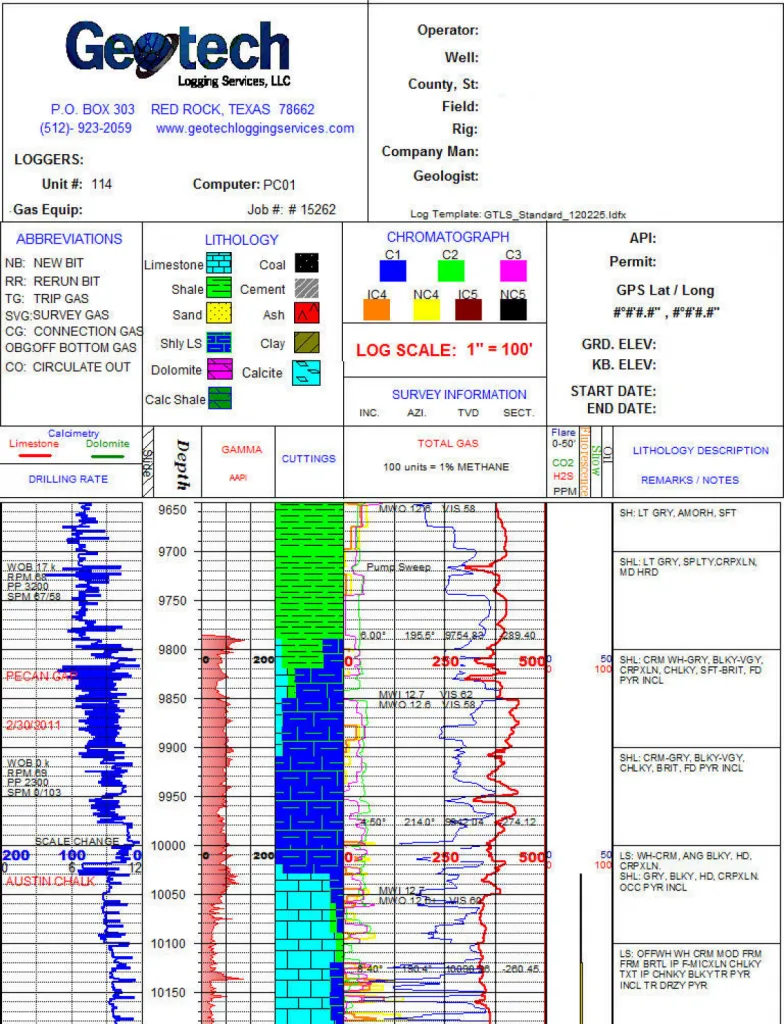

Interactive Log Viewer

Use the Log View window to view the completed log display. Scroll up/down through the log page(s), adjust vertical scale, page breaks, page numbers, and more. Print the log to any printer or plotter you have installed on your Windows system. Single-sheet and continuous printing are supported. Save the graphic log as a LogPlot “.LPT8” file for later viewing. Export the log to PDF, PNG, JPG, BMP, TIFF, or HTML.

Project Manager for Quick File Access

The Project Manager window allows you to view all of the Data, Design and Plot files within a designated project directory. The Project Manager also reads and links directly to borehole data stored in a RockWorks database file. Open multiple LogPlot data files, Rockworks boreholes, and graphic log files in one easy step!

Batch Compiling

Build an on-screen list of data files to be compiled into graphic logs, which can be printed and/or saved.

Built-in Tutorial

The LogPlot tutorial takes you step-by-step through the processes of designing borehole logs, entering data, establishing program settings, and compiling logs.

USCS/USGS Patterns and International Keyword Sets

RockWare staff have meticulously designed pattern files and keyword sets that comply with the United Soil Classification System as well as sets that comply with USGS internal standards. Additionally, lithology keyword sets have been created for our German, Spanish, French and Italian speaking users.

Column Legends

• Add Column Legends to the LogDesigner Header or Footer.
• Link to a Column in the Log Body, or specify the XY location of the Header.
• Linked Legends will be automatically moved and resized as the column is adjusted in the Log Body.
• Enter a Title to be centered in the Legend box, oriented horizontally or vertically (ascending or descending).
• Fill the box with a color (if desired) and specify a border line style

Log Body Outlines

• Insert an outline around portions, or the complete log, in the Log Body.
• Draw base lines for Interval Text samples on compiled log when the check box to Frame Sample is enabled.
• Outline a single column, such as a Depth Bar, or the entire log.
• Choose a Fill color (if desired) and specify a Line Style.

Lithology Description Divider Line Extension

Extend the Lithology Description Divider Line so that the contact depth is more visible in logs with offset descriptions (click the image to the right to see an enlarged view).

Improved LAS File Handling

• Import LAS files that does not reference a well name.
• Add Well Information and Parameters tabs during the LAS export.

PDF Single Page Export

The new “Single Page” export option allows users to export a paginated log (with a header and footer on each page) as a single page PDF with the header and footer included at the top and bottom of the log.
