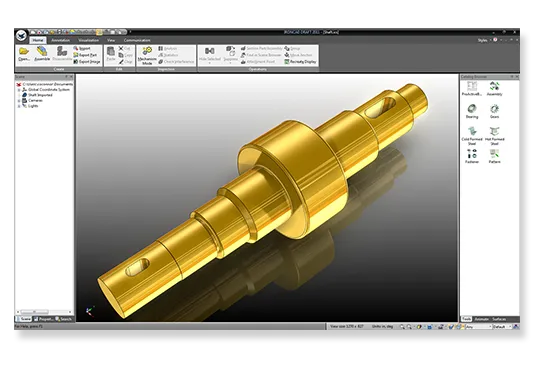

IronCAD Draft is a powerful and affordable 2D CAD software solution designed to bridge the gap between traditional 2D drafting and modern 3D modeling. It provides a familiar user interface for 2D CAD users while offering unique capabilities to analyze, render, and reference 3D model data. This makes it ideal for professionals who need to collaborate with 3D design teams or transition to 3D workflows over time.

Features

• 2D Detailing for 3D Data: Work in a 2D CAD environment while referencing and leveraging 3D model data.
• Time-Saving Parts Library: Includes hundreds of standard part designs with parametric data for drag-and-drop use.
• Legacy Data Support: Imports files from major 2D CAD software while retaining technical data.
• 3D Catalog Conversion: Convert 2D designs into 3D catalogs for future reuse.
• AutoCAD Command Support: Familiar command structure for easy adoption by 2D CAD veterans.

Benefits

• Easy Transition to 3D: Enables 2D users to collaborate with 3D teams and gradually adopt 3D workflows.
• Boosted Productivity: Save time with prebuilt parametric parts and streamlined detailing tools.
• Enhanced Collaboration: Share and reference 3D data without leaving the 2D environment.
• Cost-Effective Solution: Offers advanced capabilities at a lower cost than full 3D CAD systems.
• Preserves Existing Workflows: Supports legacy data and familiar commands to minimize disruption.
