IP Video System Design Tool is a Windows-based software application that enables security professionals to plan, simulate, and document video surveillance systems. It supports 2D and 3D modeling of camera placement, calculates field of view, lens focal length, pixel density, and visualizes DORI (Detection, Observation, Recognition, Identification) zones according to international standards. The tool streamlines the process of designing CCTV and IP camera systems, helping users optimize camera locations, estimate storage and bandwidth requirements, and create professional reports for proposals and installations. It is widely used by system integrators, consultants, and security engineers for projects of all sizes.

Key Features

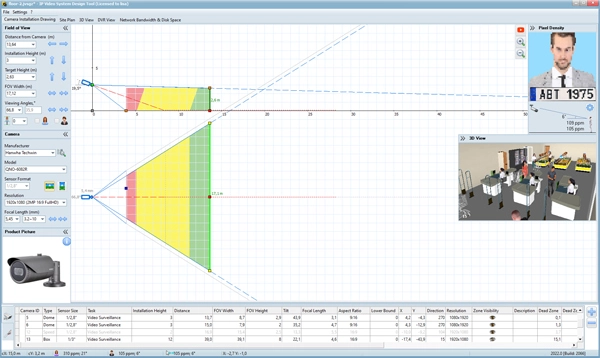

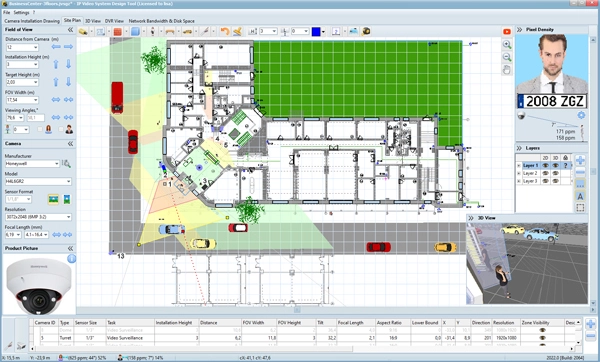

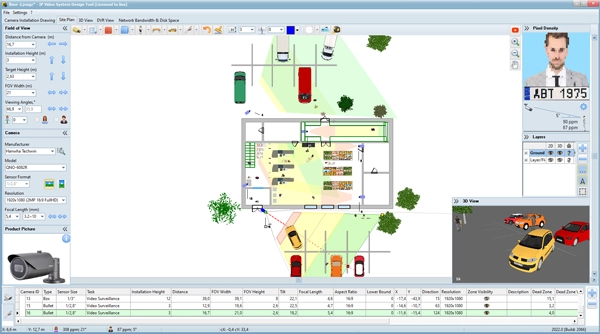

3D and 2D Camera Placement Simulation Visualize and optimize camera coverage on floor plans and site maps.

• Import JPEG, PNG, PDF, TIFF, and AutoCAD DWG files.
• Place cameras, obstacles, and 3D objects for accurate modeling.

Lens, Field of View, and Pixel Density Calculators Calculate technical requirements for each camera.

• Determine lens focal length and sensor size.
• Calculate pixel density (PPM/PPF) and DORI zones per IEC/EN 62676-4 standard.

Bandwidth and Storage Estimation Estimate network and storage needs for video archives.

• Calculate bandwidth and disk space based on resolution, compression, and camera count.

Extensive Camera Database Select from over 17,000 camera models with pre-configured parameters.

• Supports major brands and regular updates.

Professional Report Generation Export project documentation for proposals and installation.

• Generate reports in PDF, DOC, XLS, DWG/DXF, PPTX, and HTML formats.

3D Model Import and Visualization Enhance proposals with realistic 3D views.

• Import custom 3D models (Pro version) from Sketchup and other formats.

Bill of Materials and Commercial Proposal Tools Automatically generate equipment lists and pricing.

• Streamline project quoting and equipment ordering.

Benefits

Accurate System Planning Reduces errors and improves system performance.

• Prevents blind spots and miscalculated lens sizes.
• Ensures compliance with industry standards.

Time and Cost Efficiency Speeds up design and documentation processes.

• Minimizes costly site revisits and change orders.
• Lowers total project costs by optimizing equipment use.

Enhanced Client Communication Improves understanding and expectation management.

• Visual proposals help clients see real coverage and camera capabilities.
• Reduces misunderstandings and callbacks.
