Overview

HxGN NC Server integrates PC-DMIS measurement software with machine tools, enhancing measurement capabilities through continuous automation and feedback.

Features and Capabilities

• Certified PC-DMIS calculations on machine tools: Provides certified algorithms aligned with the latest ISO and ASME tolerance standards, ensuring results comparable to Coordinate Measuring Machines (CMMs).

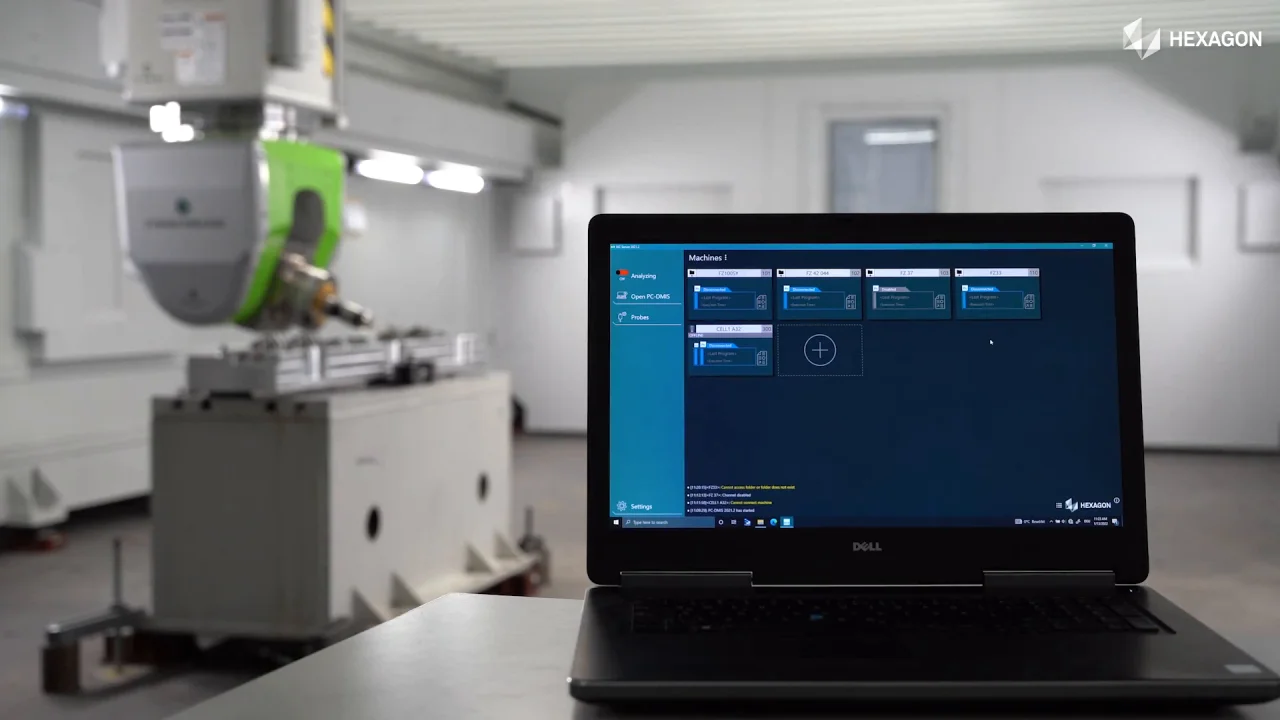

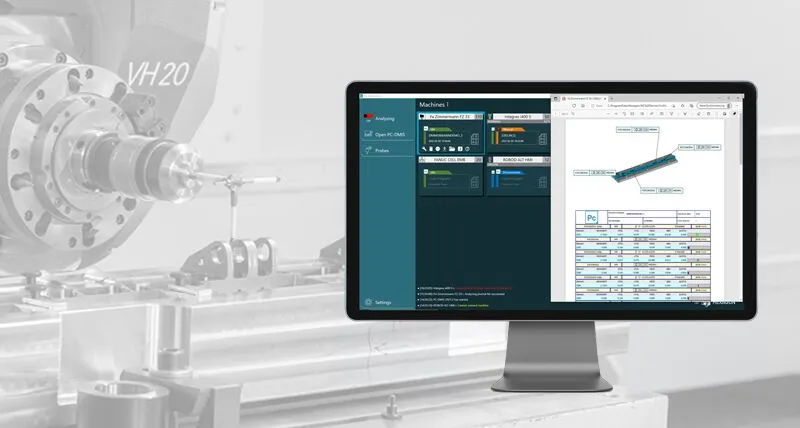

• Real-time monitoring with HxGN NC Server Dashboard: Displays the current status of machines and recent measurements.
• Flexible reporting functions: Automatically generates measurement reports after each operation, offering various templates in CAD or text formats and export options for statistical analysis.
• Integration with EDGECAM Inspect: Enables creation and simulation of measurement routines within the CAM tool using PC-DMIS calculations.
• Offline programming with HxGN NC Server Offline Manager: Allows the creation and management of measurement programs without interrupting ongoing processes.
• HMI interface for direct access: Can be installed on Windows-based controls, enabling operators to use the software directly from the machine control panel.
• Compatibility with various controllers: Supports a range of controllers, including Fanuc, Heidenhain, Makino, Mazak, Okuma, and Siemens.
• Support for m&h probes and tool setters: Compatible with all m&h probes, tool setters, and laser tools.
• Integration with Q-DAS and NC Simul: Offers advanced data analysis and simulation functionalities.
• Enhanced automation for unattended operations: Minimizes the need for operator intervention, enabling 24/7 operations.
• Reduction in quality bottlenecks and transport times: Captures in-process quality data directly from the machine, minimizing delays.
• Early detection of quality issues: Identifies problems before defects occur, improving production quality.
• Seamless integration into existing workflows: Boosts efficiency without significant changes to current operations.
• Scalability for various production environments: Adaptable to different production sizes, from small workshops to large-scale manufacturing.
• Improved consistency of data across devices: Ensures uniform measurement data across the factory.
• Increased operator efficiency: Provides tools and interfaces that enhance operator productivity and reduce manual workload.
• Compliance with the latest ISO and ASME standards: Ensures adherence to industry requirements.
• Graphical reporting with CAD model visualization: Includes graphical reporting capabilities with CAD model integration.
• Centralized management of measurement programs: Simplifies program management across multiple machines.
• Elimination of manual measurement processes: Automates measurement tasks, improving accuracy and efficiency.
• Real-time feedback for immediate corrections: Allows on-the-fly adjustments during manufacturing.
• Advanced data export for statistical evaluation: Supports continuous improvement initiatives through data export.
• Workflow optimization: Integrates measurement directly into machining operations, reducing downtime and enhancing productivity.
• Support for complex part measurements: Suitable for a wide range of manufacturing applications.
• Enhanced communication between software and machines: Enables more efficient and accurate operations.
• Availability of measurement reports via cloud services: Provides easy access to reports through cloud-based services.
