Cummins INSITE is a Windows-based, professional-level diagnostic and programming software for Cummins electronic engines. It provides comprehensive access to engine data, advanced diagnostic functions, and full ECM (Engine Control Module) programming capabilities. The Pro version enables technicians to read and clear fault codes, perform parameter and feature adjustments, update ECM calibration levels, program new ECMs, and remove ECM passwords (with additional tools). It includes complete wiring diagrams, sensor location maps, and supports trip and vehicle information, as well as advanced engine diagnostic tests such as injector cut-out and EGR valve checks. The software is subscription-based, with a 12-month license, and is compatible with RP1210-compliant adapters using J1939 and J1708 protocols. The Pro edition is intended for dealer-level and advanced fleet maintenance operations, offering all features of the Lite version plus ECM programming and calibration management.

Key Features

Advanced Diagnostics and Monitoring Provides real-time access to engine performance and operational data.

• Trip and vehicle information
• Graphical monitoring of engine parameters

Fault Code Management Reads and clears active and inactive fault codes.

• Fault-related information and symptom-based diagnostics
• Generates detailed diagnostic reports

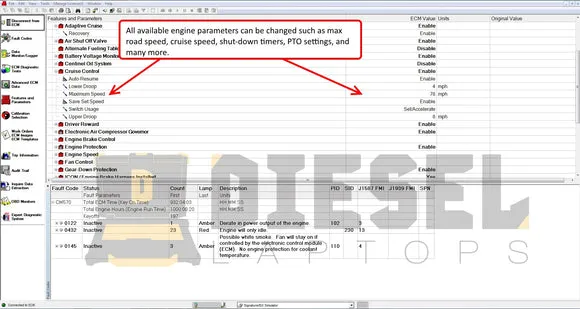

Parameter and Feature Adjustment Allows modification of engine parameters and features.

• Adjusts settings for optimal performance
• Supports feature customization

ECM Programming and Calibration Enables full ECM programming and calibration updates.

• Update ECM calibration levels
• Program new ECMs
• Remove ECM passwords (with additional tools)

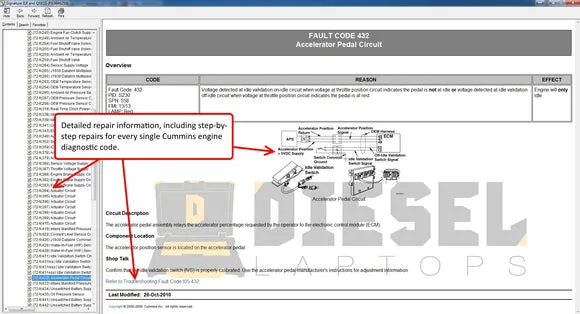

Wiring Diagrams and Sensor Maps Offers detailed repair documentation.

• Complete wiring diagrams
• Sensor location maps for troubleshooting

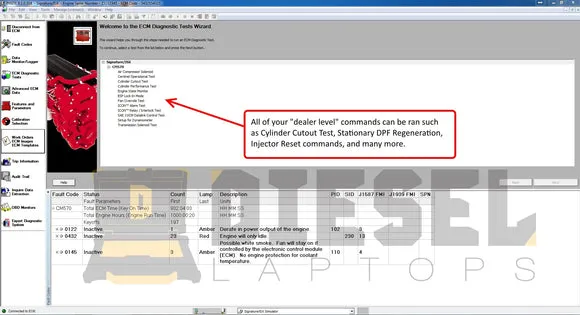

Engine Diagnostic Tests Performs essential diagnostic procedures.

• Injector cut-out tests
• EGR valve and turbo diagnostics

Audit Trail and Work Orders Tracks service history and manages repair workflow.

• Audit trail information
• Work order management

Benefits

Maximizes Uptime Speeds up diagnostics, repair, and programming processes.

• Quick fault identification and resolution
• Minimizes vehicle out-of-service time

Enables Dealer-Level Service Provides full access to OEM-level diagnostics and programming.

• Supports advanced repairs and ECM management
• Reduces need for external dealer intervention

Improves Fleet Maintenance Supports proactive and efficient fleet management.

• Enables preventive maintenance
• Streamlines service operations
