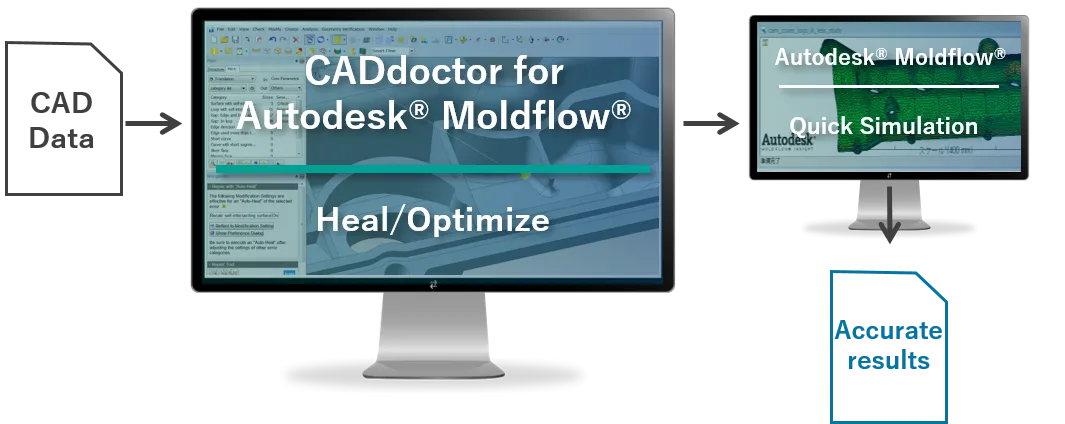

CADdoctor for Autodesk Moldflow streamlines your simulation processes by importing various CAD formats, repairing geometry errors, and removing unnecessary features. It ensures that your CAD data is optimized for Autodesk Moldflow, leading to more accurate and efficient simulations. The software supports standard formats like STEP and IGES, with optional support for CATIA V5, NX, Creo Parametric, Parasolid, JT, and ACIS. Key functionalities include data quality checks, automatic healing, geometry simplification, and mid-surface creation. By addressing common issues such as free edges and unnecessary details, CADdoctor for Autodesk Moldflow reduces simulation lead time and improves accuracy.

Features:

• Multi-CAD Format Support: Import various CAD formats, including STEP, IGES, and optionally CATIA V5, NX, Creo Parametric, Parasolid, JT, and ACIS.
• Data Quality Check and Automatic Healing: Identify and repair geometry errors to ensure high-quality data for simulations.
• Geometry Simplification: Automatically remove unnecessary features like logos and tiny fillets to streamline the simulation process.
• Mid-Surface Creation: Generate mid-surfaces to facilitate more efficient and accurate simulations.
• Seamless Integration with Autodesk Moldflow: Launch simulations directly after data export for a streamlined workflow.
