Intelligent Outdoor Lighting Design Software

AutoLUX is a powerful CAD-based software for creating lighting schemes for sports fields, roadways, and other outdoor spaces. With AutoLUX’s sports field and roadway templates you can quickly generate drawings, and its full-featured Lighting Calculations Engine will dynamically generate light levels from the photometric data files supplied for your luminaire symbols. Luminaires and target points enter the drawing as CAD entities—once inserted in your designs, photometry files and other necessary data are stored with each symbol.

What Makes AutoLUX Unique

Save time with sports field and roadway shortcuts

The sports shortcut constructs popular sports field outlines and target grids at the click of a button. The roadway shortcut constructs roadway lighting layouts based on industry standards—choose from: IESNA, BS5489 or CEN.

Experience seamless integration with AutoCAD

AutoLUX retains the full power of AutoCAD, with luminaires and target points enter the drawing as CAD entities. AutoLUX uses information in CANdela files to produce legend / fixture schedules, and accepts photometry in IES, CIBSE TM14, EULUMDAT, CIE, or INR format.

Features

Benefit From Fast and Accurate Calculations

Create professional lighting schemes with advanced shading and contour isoplot features, it creates accurate designs by accounting for obstructions and providing a visual representation of the lighting. It also offers shortcuts for roadway and sports field designs, creating layouts with standard codes and field outlines.

Determine Roadway Lighting Parameters

Choose from 15 different standard roadway lighting layouts—6 with a single lane/road, and 9 with a dual lane/road (median-divided)—and quickly evaluate their performance for your plan.

Create Drawings of Common Sports Facilities

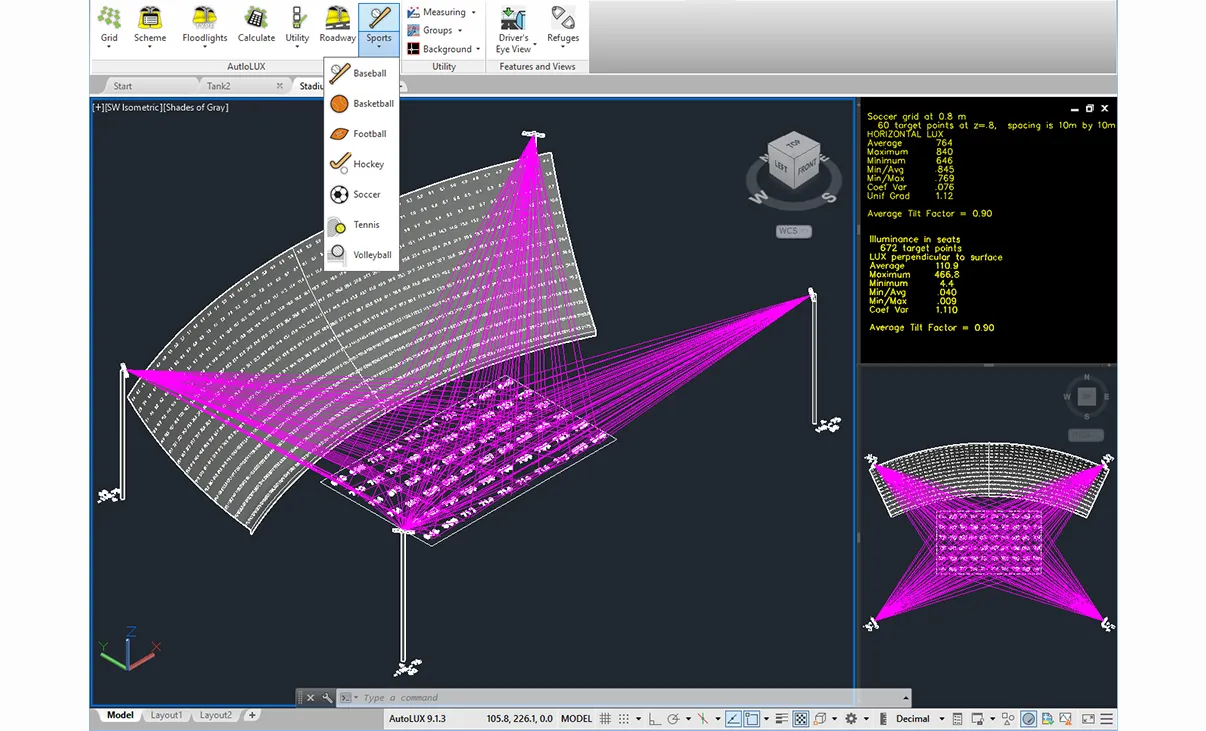

AutoLUX features automatic creation of drawings of commonly used sports facilities, along with the optional production of the target grids for light level calculations.

Create and Import Custom Symbols

You can create your own custom symbols if you want to improve existing symbols to support a better visual effect.

Calculate Illuminance and Luminance Levels

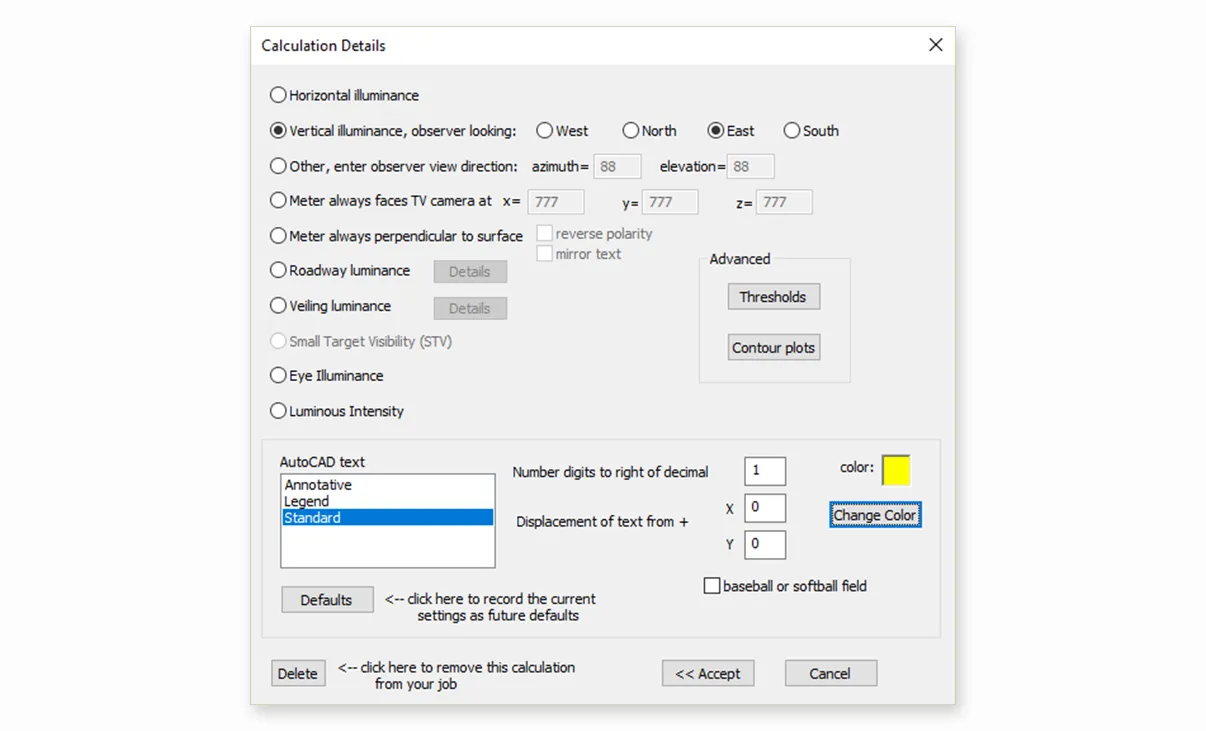

Calculations by the Lighting Calculations Engine include horizontal and vertical illuminance, as well as roadway and veiling luminance. You can set various styles and options for the calculated values.

Modify Vertical and Planar Calculations

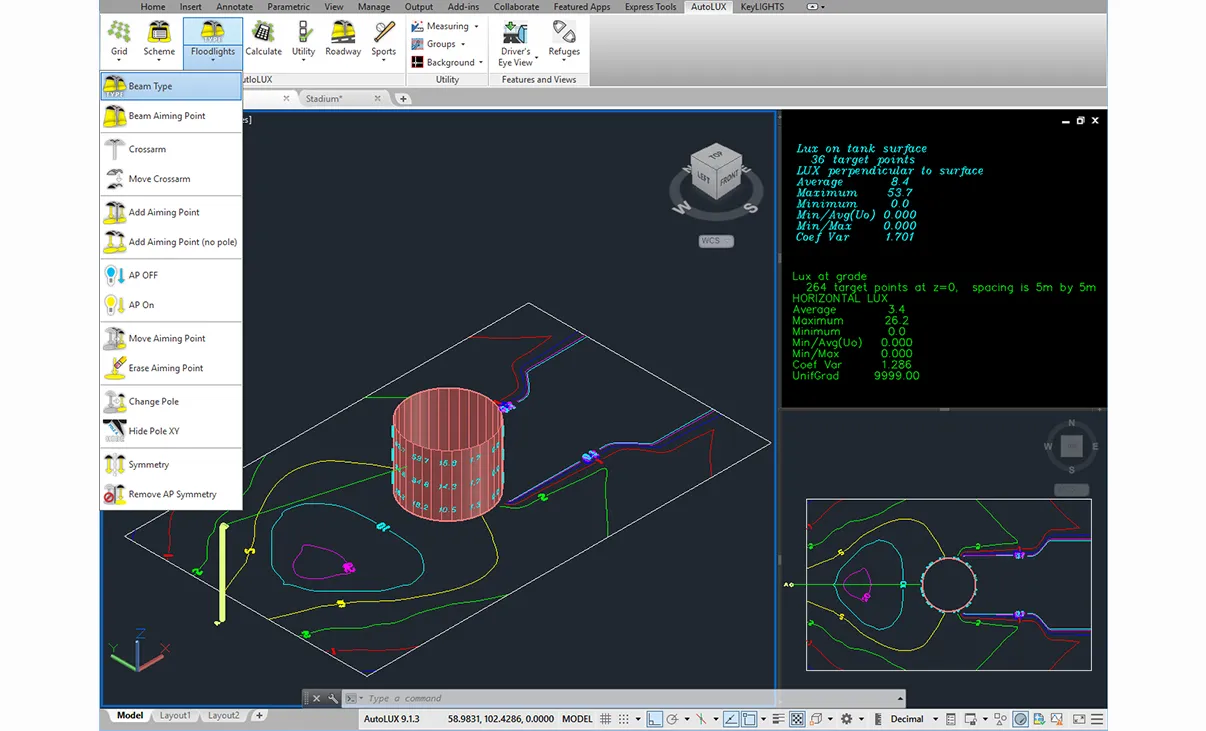

AutoLUX accounts for obstructions that block light and adjusts both planar and vertical calculations where obstructions occur. Obstructions can be introduced in your drawing as 3D FACEs, solids, extruded circles, or other simple extrusions from line or arc geometry.

View High Level Calculations as Points and Contours

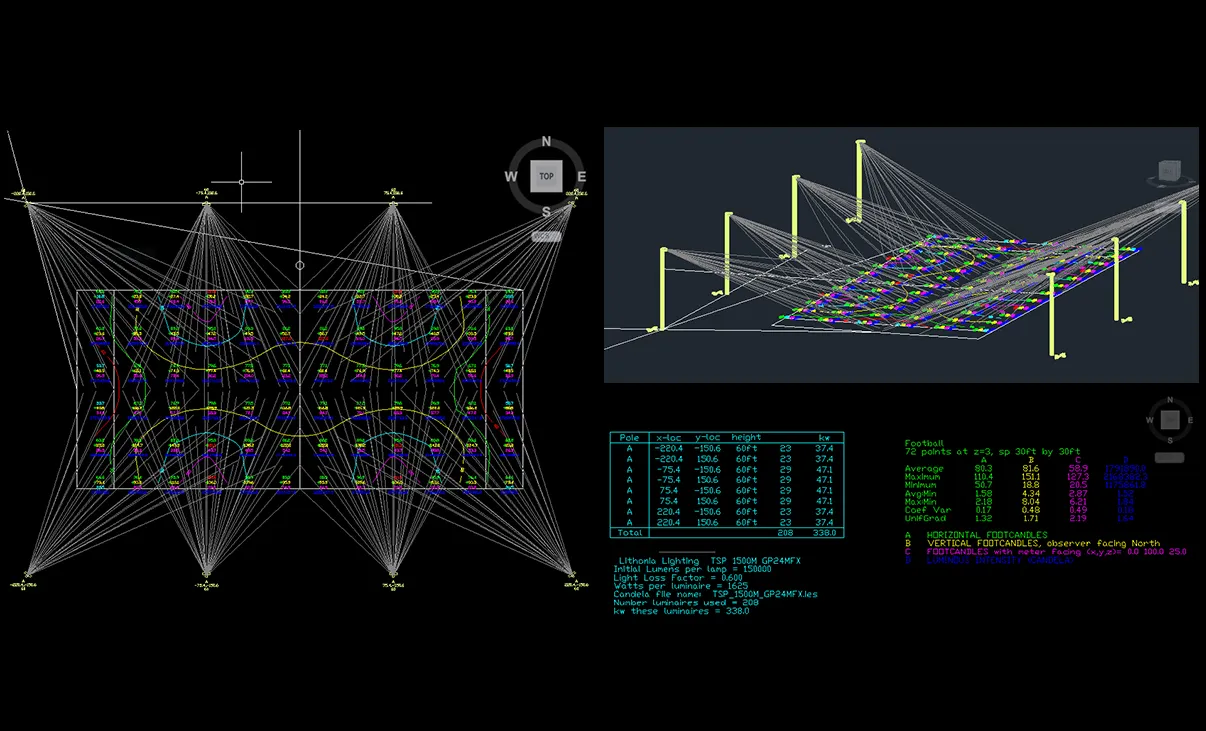

AutoLUX plots light levels as numbers on a grid. It also supports fully customizable colored contours. Use the draggable iso templates to create contour isoplots when all grid points must be at or above a specified minimum value.
